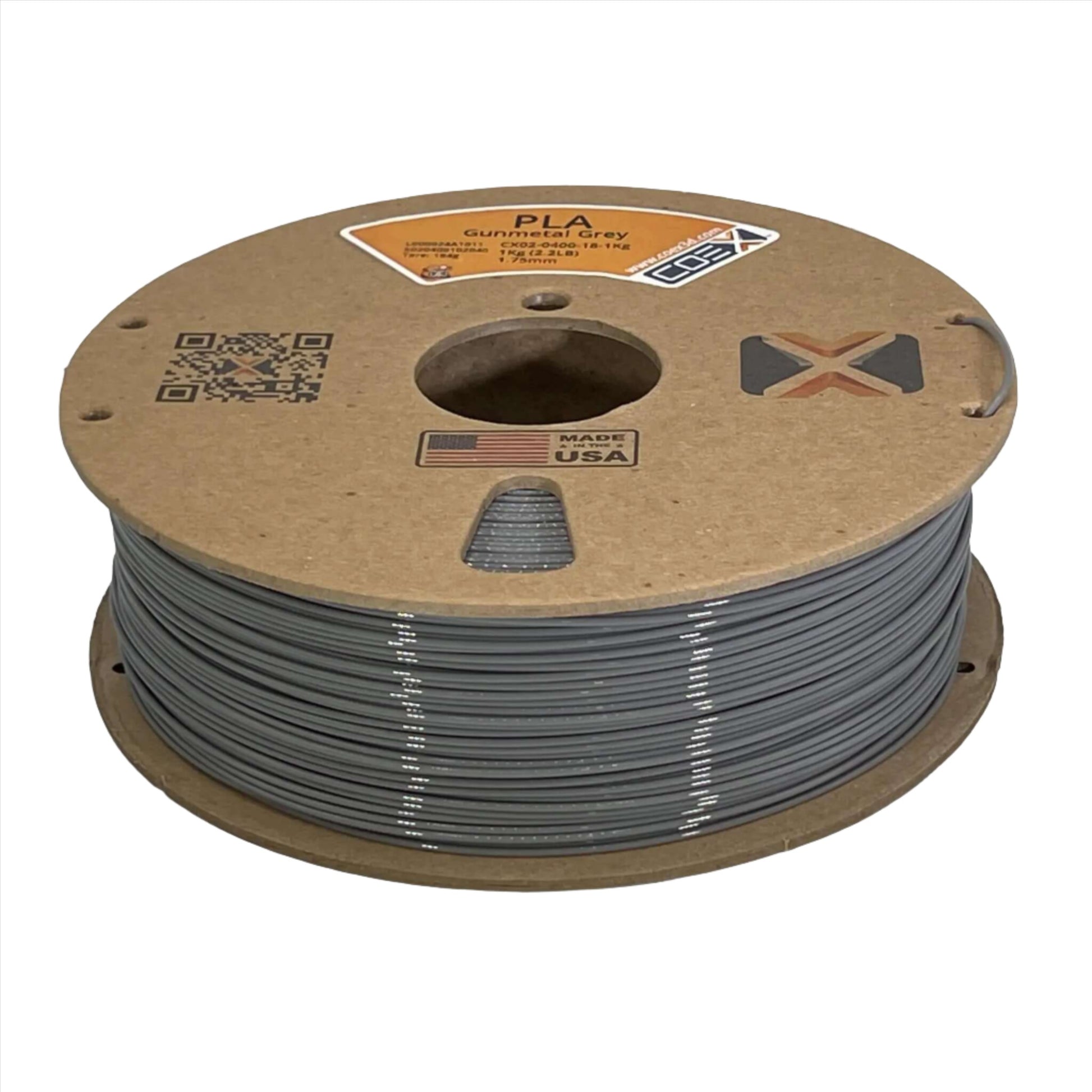

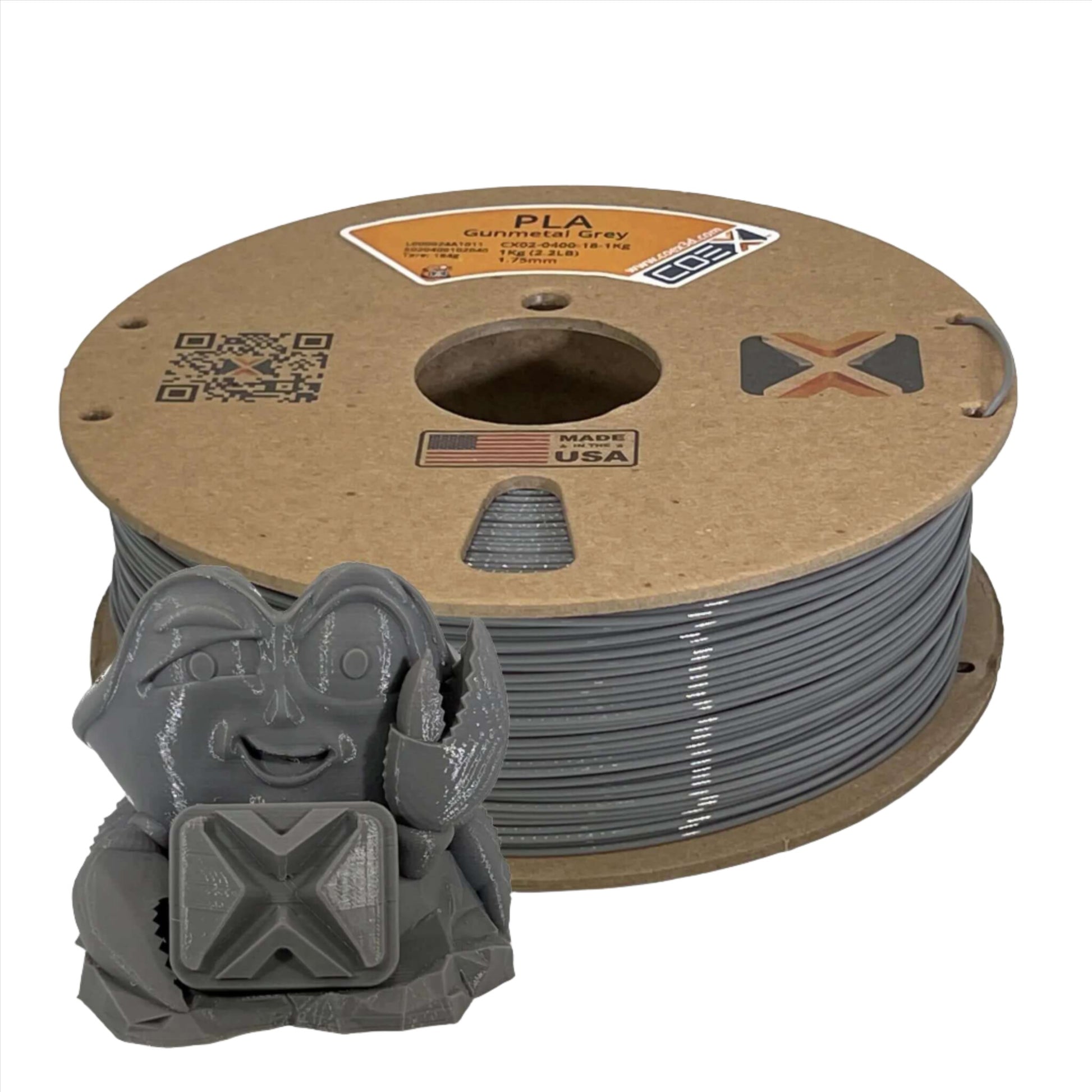

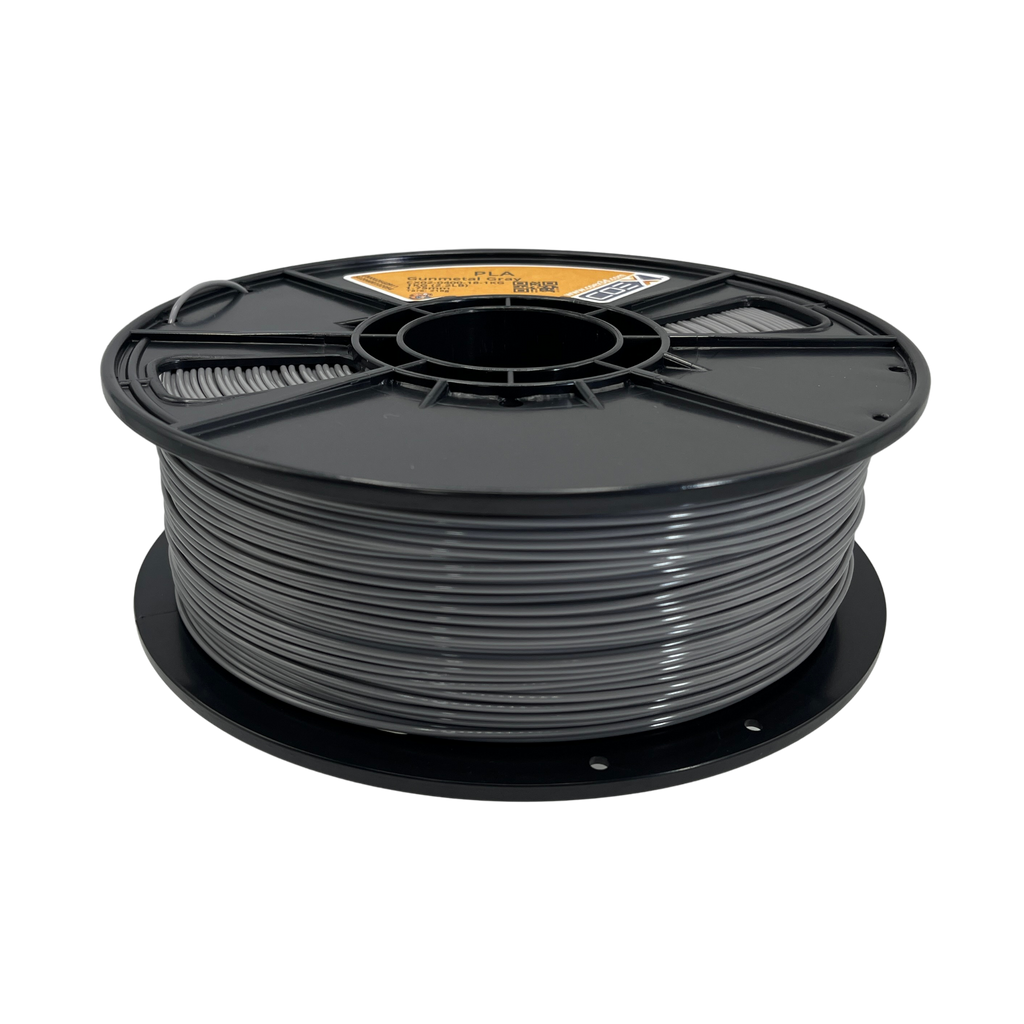

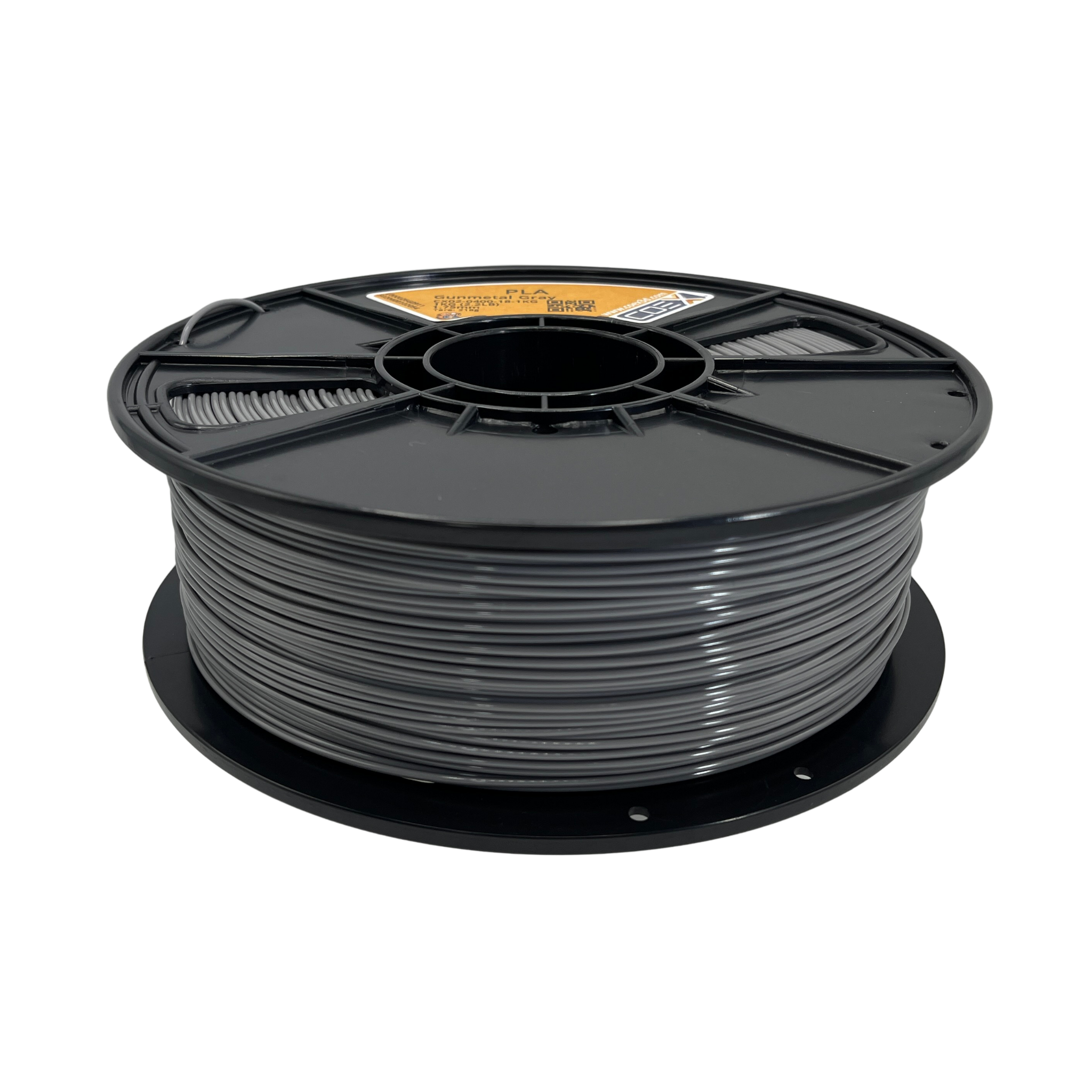

Coex 3D Gunmetal Gray PLA

Unlock precision printing with Coex 3D Standard PLA Filament - the reliable foundation for your creative vision. Our premium PLA (Polylactic Acid) filament delivers exceptional quality for makers at every level.

Key Features:

  • Consistent 1.75mm diameter with tight ±0.03mm tolerance for smooth, jam-free printing
  • Manufactured from renewable plant-based resources for eco-conscious creation
  • Compatible with all standard FDM/FFF 3D printers
  • Low warping and minimal odor during printing
  • Vibrant, fade-resistant colors that maintain integrity throughout your prints

    Whether you're prototyping a new design, creating functional parts, or bringing artistic concepts to life, Coex 3D Standard PLA delivers reliable performance print after print. Each spool is vacuum-sealed with desiccant to ensure optimal moisture protection and comes with a 100% satisfaction guarantee.

    Elevate your 3D printing experience today with Coex 3D Standard PLA - where quality meets creativity.

    Coex's PLA is made with Virgin NatureWorks Ingeo 4043D resin, high-quality colorant only, and no fillers.

    All of Coex 3D's filament is made in our production facility located in Wisconsin, USA.

    Our Standard PLA is as good or better than most competitors' PLA+ or PLA Prime.

    Technical Printing Guide - COEX PLA

    1. Material Notes

    • Keep filament dry - store properly and dry before use
    • PLA is less hygroscopic than other materials, but proper storage helps maintain quality
    • If needed, dry at 55°C for 3 hours or more
    • Check for any visible damage before use

    2. Basic Parameters

    PLA (Polylactic Acid) is a biodegradable polymer known for its ease of printing, good surface quality, and dimensional accuracy. Perfect for decorative parts, prototypes, and general printing needs where mechanical properties are not critical.

    Nozzle Layer Height Line Width Volumetric Speed Temperature
    0.4mm 0.2mm 0.42mm 12.0 mm³/s 220°C
    0.6mm 0.3mm 0.62mm 27.0 mm³/s 225°C
    0.8mm 0.4mm 0.82mm 48.0 mm³/s 230°C
    1.0mm 0.5mm 1.02mm 75.0 mm³/s 235°C


    3. Speed Settings

    0.4mm Nozzle (Volumetric Speed: 12.0 mm³/s)

     Line Type Percentage Speed
    External Perimeter 50% 71.43 mm/s
    Internal Perimeters 75% 107.14 mm/s
    Infill 100% 142.86 mm/s
    Top/Bottom 60% 85.71 mm/s
    First Layer 30% 42.86 mm/s


    0.6mm Nozzle (Volumetric Speed: 27.0 mm³/s)

     Line Type Percentage Speed
    External Perimeter 50% 72.58 mm/s
    Internal Perimeters 75% 108.87 mm/s
    Infill 100% 145.16 mm/s
    Top/Bottom 60% 87.10 mm/s
    First Layer 30% 43.55 mm/s


    0.8mm Nozzle (Volumetric Speed: 48.0 mm³/s)

     Line Type Percentage Speed
    External Perimeter 50% 73.17 mm/s
    Internal Perimeters 75% 109.76 mm/s
    Infill 100% 146.34 mm/s
    Top/Bottom 60% 87.80 mm/s
    First Layer 30% 43.90 mm/s


    1.0mm Nozzle (Volumetric Speed: 75.0 mm³/s)

     Line Type Percentage Speed
    External Perimeter 50% 73.53 mm/s
    Internal Perimeters 75% 110.29 mm/s
    Infill 100% 147.06 mm/s
    Top/Bottom 60% 88.24 mm/s
    First Layer 30% 44.12 mm/s


    4. Retraction Settings

    Nozzle Distance Speed Z-Hop
    0.4mm 0.5-0.8mm 45mm/s 0.2mm
    0.6mm 0.6-1.0mm 45mm/s 0.2mm
    0.8mm 0.8-1.2mm 40mm/s 0.2mm
    1.0mm 1.0-1.5mm 35mm/s 0.2mm


    5. Temperature Settings

    Bed Temperature: 60°C

    • Wash the bed often for good adhesion - Use dish soap and rinse thoroughly to remove oils
    • Use bed adhesion products if necessary (gluestick, WELD3D)
    • Use brim for tall or large prints
    • Keep ambient temperature stable

    Extruder Temperature: 215-235°C

    6. Cooling Settings

    Cooling Configuration:

    • First Layer: 0% (fan off)
    • General Printing: 100% base fan speed
    • Bridges and Overhangs: 100% fan speed
    • Layers < 15 seconds: 100% fan speed

    Critical Considerations:

      • PLA requires maximum cooling for best results
      • Full fan speed helps with bridging and overhangs
      • The first layer needs no cooling for good adhesion
      • Small parts need maximum cooling

    7. Troubleshooting Guide

     Problem Solution
    Poor Layer Adhesion



    1. Increase temperature by 5-10°C

    2. Reduce cooling fan speed for first few layers

    3. Clean build surface with IPA



    Warping

    1. Increase bed temperature to 60°C

    2. Add brim (5-10mm)

    3. Ensure no drafts in printing area

    Stringing

    1. Lower temperature by 5°C

    2. Increase retraction speed to 45mm/s

    3. Adjust retraction distance

    Under-extrusion

    1. Increase temperature by 5-10°C

    2. Clean nozzle or try cold pull

    3. Check filament quality

    Poor Overhangs

    1. Ensure 100% cooling

    2. Reduce temperature by 5°C

    3. Reduce print speed by 50%



    PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.

    Tolerance: At Coex 3D, we use multi axis laser measuring heads to ensure a tolerance of ±.03mm.

    Quality: All Coex 3D printer filament is manufactured in our Green Bay, WI production facility. This allows us to ensure consistent quality for every spool through control of every aspect of the manufacturing process.

    Packaging: Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag.

    Tested: Coex 3D doesn't just sell filament, we use it on a daily basis. Our 50+ 3D printers are constantly running with our filament. We rely on our quality as much as our customers do.
