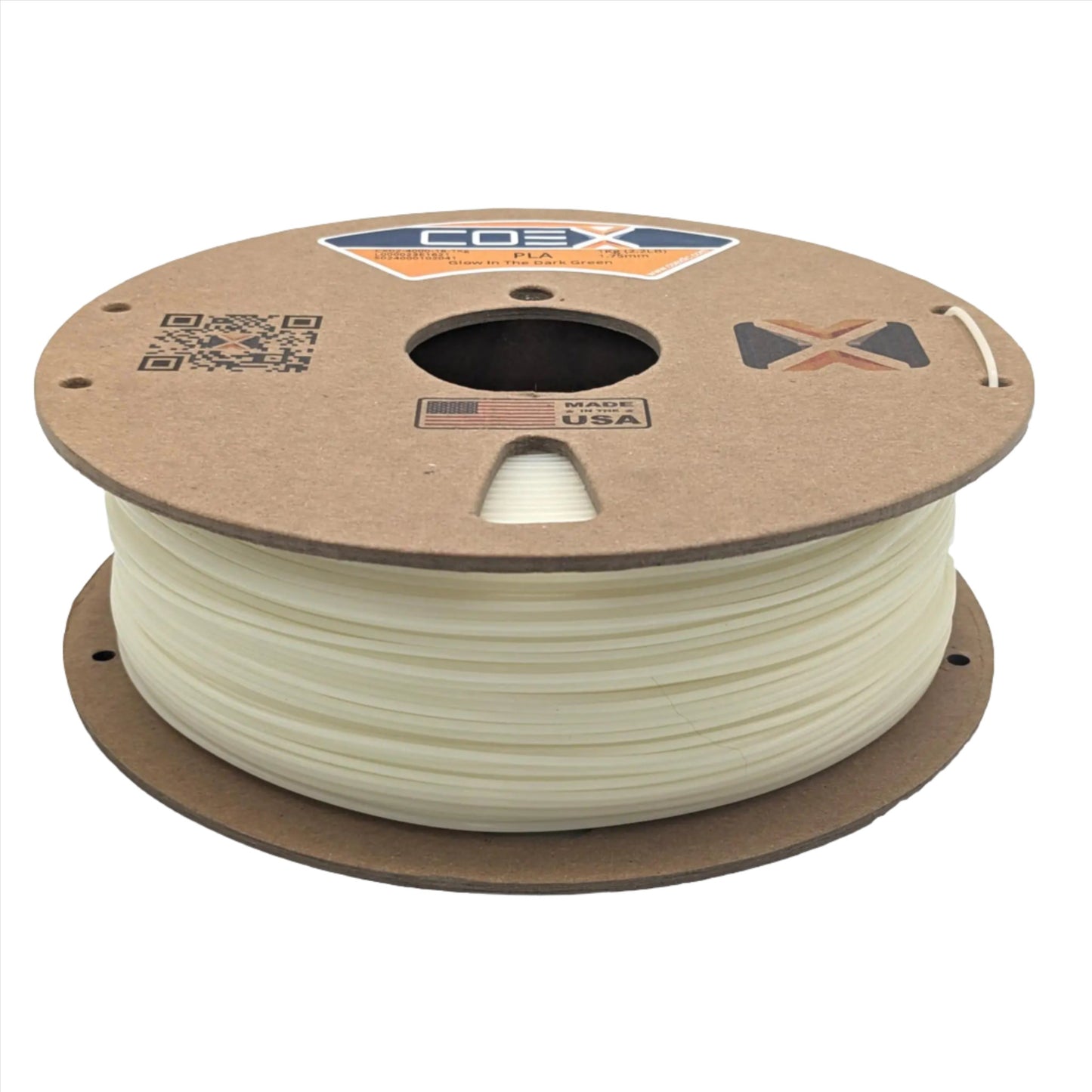

• COEX 3D glow in the dark green PLA filament spool on brown cardboard reel

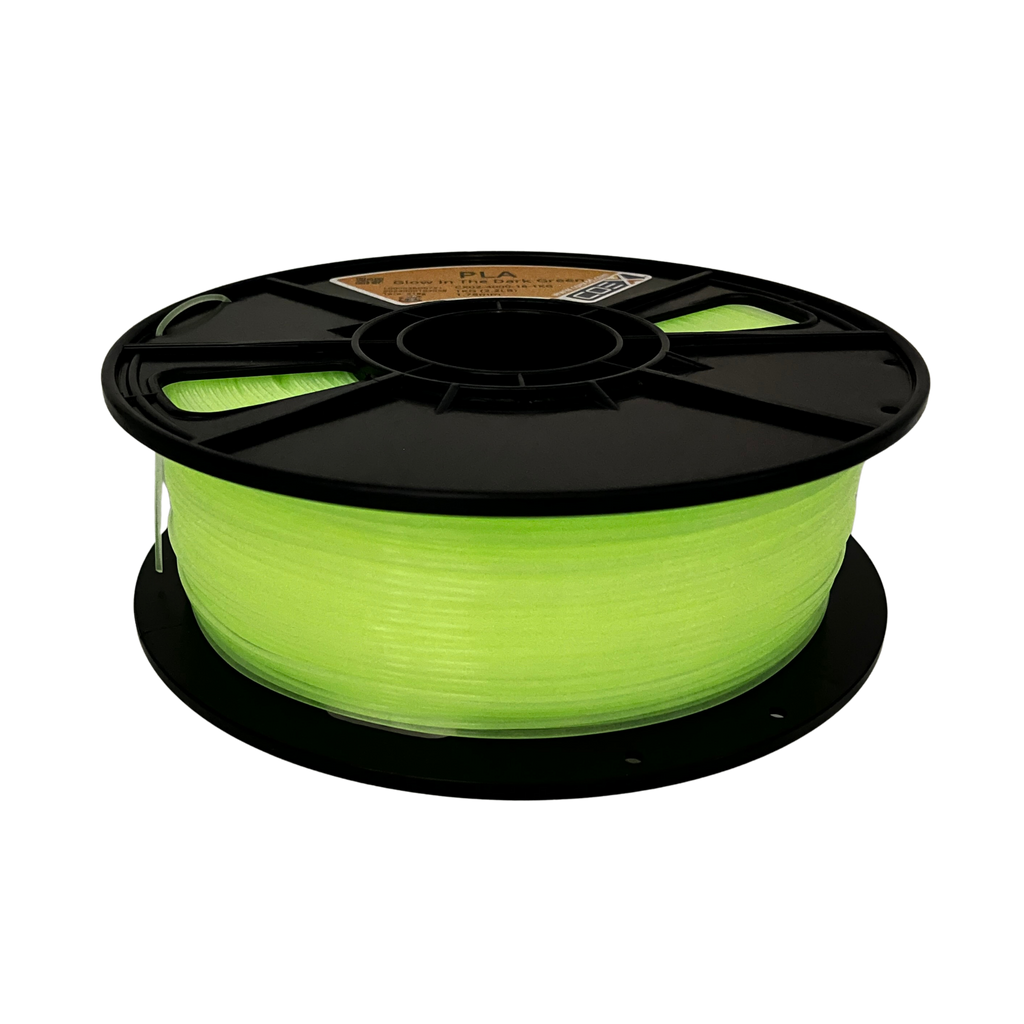

  • Glow-in-the-dark green PLA 3D printer filament spool with a small printed crab figure

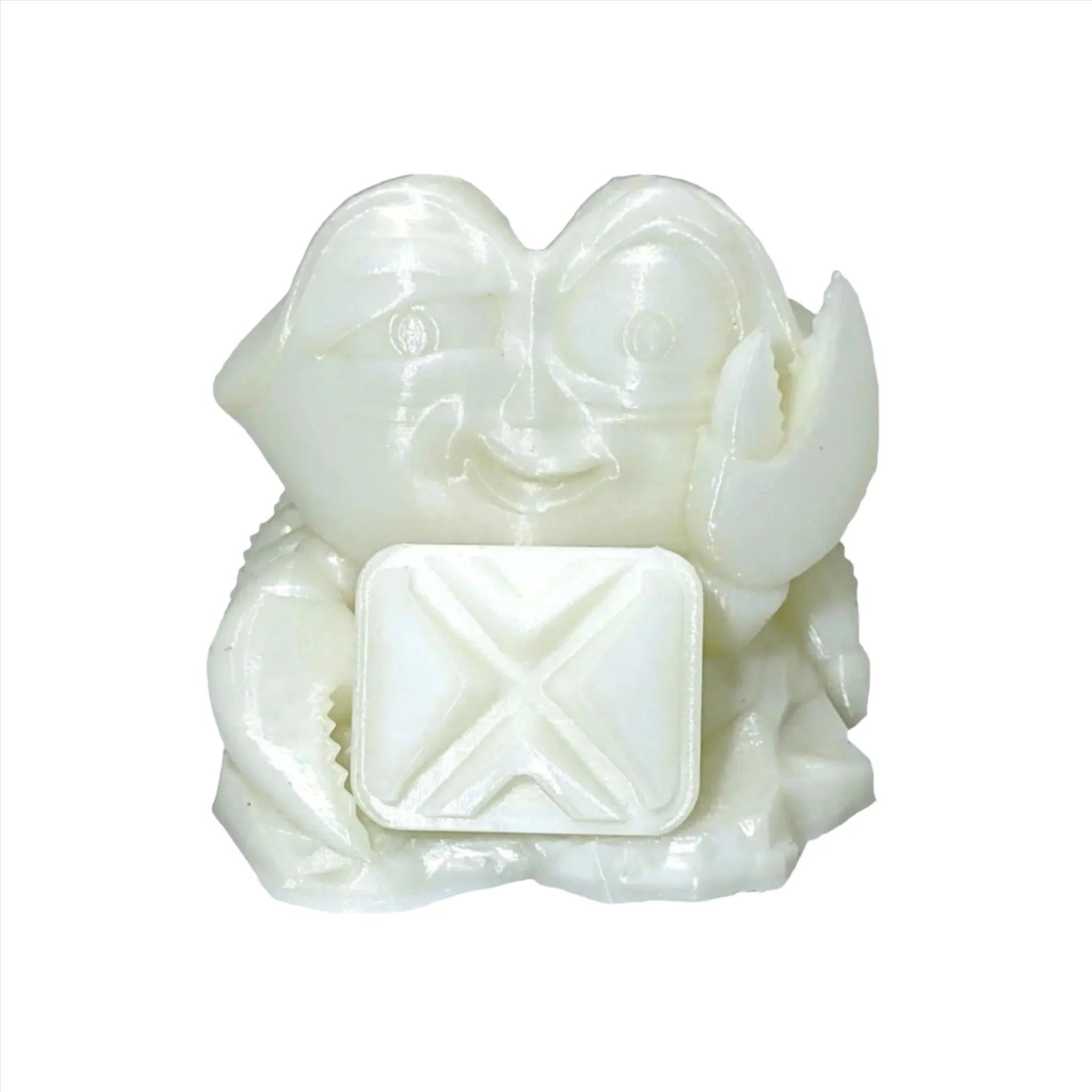

  • 3D printed crab figurine in glow-in-the-dark green PLA plastic on white background
1 3

COEX 3D

Glow in the Dark Green PLA

Glow in the Dark Green PLA

CX02-4000-18-1KG

Diameter
Weight

23 in stock

$22.00 USD
$24.00 USD $22.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Coex 3D Glow in the Dark Green PLA

Unlock precision printing with Coex 3D Standard PLA Filament - the reliable foundation for your creative vision. Our premium PLA (Polylactic Acid) filament delivers exceptional quality for makers at every level.

Key Features:

  • Consistent 1.75mm diameter with tight ±0.03mm tolerance for smooth, jam-free printing
  • Manufactured from renewable plant-based resources for eco-conscious creation
  • Compatible with all standard FDM/FFF 3D printers
  • Low warping and minimal odor during printing
  • Vibrant, fade-resistant colors that maintain integrity throughout your prints

    Whether you're prototyping a new design, creating functional parts, or bringing artistic concepts to life, Coex 3D Standard PLA delivers reliable performance print after print. Each spool is vacuum-sealed with desiccant to ensure optimal moisture protection and comes with a 100% satisfaction guarantee.

    Elevate your 3D printing experience today with Coex 3D Standard PLA - where quality meets creativity.

    Coex's PLA is made with Virgin NatureWorks Ingeo 4043D resin, high-quality colorant only, and no fillers.

    All of Coex 3D's filament is made in our production facility located in Wisconsin, USA.

    Our Standard PLA is as good or better than most competitors' PLA+ or PLA Prime.

    Technical Printing Guide - COEX PLA

    1. Material Notes

    • Keep filament dry - store properly and dry before use
    • PLA is less hygroscopic than other materials, but proper storage helps maintain quality
    • If needed, dry at 55°C for 3 hours or more
    • Check for any visible damage before use

    2. Temperature Settings

    Bed Temperature: 60°C

    • Wash the bed often for good adhesion - Use dish soap and rinse thoroughly to remove oils
    • Use bed adhesion products if necessary (gluestick, WELD3D)
    • Use brim for tall or large prints
    • Keep ambient temperature stable

    Extruder Temperature: 215-235°C

    3. Basic Parameters

    PLA (Polylactic Acid) is a biodegradable polymer known for its ease of printing, good surface quality, and dimensional accuracy. Perfect for decorative parts, prototypes, and general printing needs where mechanical properties are not critical.

    Nozzle Layer Height Line Width Volumetric Speed Temperature
    0.4mm 0.2mm 0.42mm 12.0 mm³/s 220°C
    0.6mm 0.3mm 0.62mm 27.0 mm³/s 225°C
    0.8mm 0.4mm 0.82mm 48.0 mm³/s 230°C
    1.0mm 0.5mm 1.02mm 75.0 mm³/s 235°C


    4. Speed Settings

    0.4mm Nozzle (Volumetric Speed: 12.0 mm³/s)

     Line Type Percentage Speed
    External Perimeter 50% 71.43 mm/s
    Internal Perimeters 75% 107.14 mm/s
    Infill 100% 142.86 mm/s
    Top/Bottom 60% 85.71 mm/s
    First Layer 30% 42.86 mm/s


    0.6mm Nozzle (Volumetric Speed: 27.0 mm³/s)

     Line Type Percentage Speed
    External Perimeter 50% 72.58 mm/s
    Internal Perimeters 75% 108.87 mm/s
    Infill 100% 145.16 mm/s
    Top/Bottom 60% 87.10 mm/s
    First Layer 30% 43.55 mm/s


    0.8mm Nozzle (Volumetric Speed: 48.0 mm³/s)

     Line Type Percentage Speed
    External Perimeter 50% 73.17 mm/s
    Internal Perimeters 75% 109.76 mm/s
    Infill 100% 146.34 mm/s
    Top/Bottom 60% 87.80 mm/s
    First Layer 30% 43.90 mm/s


    1.0mm Nozzle (Volumetric Speed: 75.0 mm³/s)

     Line Type Percentage Speed
    External Perimeter 50% 73.53 mm/s
    Internal Perimeters 75% 110.29 mm/s
    Infill 100% 147.06 mm/s
    Top/Bottom 60% 88.24 mm/s
    First Layer 30% 44.12 mm/s


    5. Retraction Settings

    Nozzle Distance Speed Z-Hop
    0.4mm 0.5-0.8mm 45mm/s 0.2mm
    0.6mm 0.6-1.0mm 45mm/s 0.2mm
    0.8mm 0.8-1.2mm 40mm/s 0.2mm
    1.0mm 1.0-1.5mm 35mm/s 0.2mm



    6. Cooling Settings

    Cooling Configuration:

    • First Layer: 0% (fan off)
    • General Printing: 100% base fan speed
    • Bridges and Overhangs: 100% fan speed
    • Layers < 15 seconds: 100% fan speed

    Critical Considerations:

      • PLA requires maximum cooling for best results
      • Full fan speed helps with bridging and overhangs
      • The first layer needs no cooling for good adhesion
      • Small parts need maximum cooling

    7. Troubleshooting Guide

     Problem Solution
    Poor Layer Adhesion



    1. Increase temperature by 5-10°C

    2. Reduce cooling fan speed for first few layers

    3. Clean build surface with IPA


    Warping

    1. Increase bed temperature to 60°C

    2. Add brim (5-10mm)

    3. Ensure no drafts in printing area
    Stringing

    1. Lower temperature by 5°C

    2. Increase retraction speed to 45mm/s

    3. Adjust retraction distance
    Under-extrusion

    1. Increase temperature by 5-10°C

    2. Clean nozzle or try cold pull

    3. Check filament quality
    Poor Overhangs

    1. Ensure 100% cooling

    2. Reduce temperature by 5°C

    3. Reduce print speed by 50%



    PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.

    Coex 3D Filament Slicer Profiles

    CX02 PLA Technical Data Sheet

    Technical Data Sheet: CX02 PLA SERIES 3D PRINTING FILAMENT

    TDS Rev 2.0

    BASE RESIN: NatureWorks Ingeo Biopolymer

    Physical Properties

    PropertyStandardUnitTypical Value
    Specific Gravity - DensityASTM D792g/cc1.24
    Melt Flow Rate @210°C/2.16 kgASTM D1238g/10 min6
    Rel. Vis. @ 1.0 g/dL in CHCl₃ @30°CASTM D5225g/dL4.0

    Mechanical Properties

    PropertyStandardUnitTypical Value
    Tensile Yield StrengthASTM D638MPa60
    Tensile ModulusASTM D638MPa3.6
    Tensile ElongationASTM D638%6
    Tensile StrengthASTM D638MPa53
    Notched Izod ImpactASTM D256J/m16
    Shrinkage Rate < 0.5%ASTM D955mm/mm.0002

    Thermal Properties

    PropertyStandardUnitTypical Value
    Glass Transition Temperature (Tg)ASTM D3418°C55 - 60
    Heat Distortion Temp @ 0.45MPaASTM E2092°C55
    Decomposition TemperatureASTM D3418°C250

    SPECIFICATIONS

    Filament Size:1.75mm(in)2.85mm(in)
    MIN Diameter:1.72mm0.0677 in2.79mm0.1098 in
    MAX Diameter:1.78mm0.0701 in2.91mm0.1146 in
    Tolerance+/- .03mm+/- 0.0012 in+/- .06mm+/- 0.0024 in

    CERTIFICATIONS

    Filament Complies with 2008 Consumer Product Safety Improvement Act (CPSIA) 2008

    Filament Complies with CONEG Regulations

    Filament Complies with RoHS Directive 2002/95/EC

    FCN 000178 for the resin became effective on 1/3/2002 and is a permitted component of food packaging materials pursuant to set. 201(s) of the Federal Food, Drug, and Cosmetic Act, and parts 182, 184, and 186 of the Food Additive Regulations.

    Printed Specimen Conditions

    Printer:Open Source FDM/FFF
    Nozzle:0.4mm
    Layer Height:0.25mm
    Infill:100%, +/-45°
    Extrusion Temp:225°C
    Bed Temp:None Needed (or 50 – 70°C if applicable)
    Specimen Orientation:XY Flat
    Annealed at 110°C/15 min.

    Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.

    Download TDS (PDF)

    CX02 PLA Safety Data Sheet

    Safety Data Sheet: CX02 PLA SERIES 3D PRINTING FILAMENT

    SDS Rev 1.0

    BASE RESIN: NatureWorks™ Ingeo 4043D

    1. Identification of the substance/preparation and of the company

    1.1 Trade name:Coex PLA 3D printer filament
    1.2 Use of the product:3D printer filament, thermoplastic.
    1.3 Supplier:Coex
    660 Corporate WAY
    Pulaski, WI 54162
    Phone: (920) 757-1055

    2. Hazards identification

    2.1 Classification:This product is NOT classified according to 29 CFR 1910.1200 Hazard Communication Standard 2012
    2.2 Special advice on hazards:If small particles are generated during further processing, handling, or by other means, combustible dust concentrations in air may form.

    3. Composition / information on ingredients

    3.1 Chemical characteristics:

    CAS #Hazardous ComponentsConcentration
    9051-89-2Polylactide resin>=98%

    4. First-aid measures

    4.1 On skin contact:In case of contact with molten polymer immediately cool the skin with cold water. Medical aid may be required to remove adhering material and for treatment of burns.
    4.2 After inhalation:Remove from exposure and move to fresh air immediately. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Get medical aid.
    4.3 On ingestion:If swallowed, wash out mouth with water provided person is conscious. Do NOT induce vomiting.
    4.4 On eyes contact:In case of contact, immediately flush eyes with copious amounts of water for at least (15) minutes.

    5. Fire-fighting measures

    5.1 Suitable fire extinguishing media:Water spray, chemical powder or carbon dioxide.
    5.2 Special exposure hazards:During a fire, smoke may contain the original material in addition to combustion products of varying composition which may be toxic and/or irritating. Combustion products may include and are not limited to: Carbon dioxide. Carbon monoxide.
    5.3 Special protective equipment:Self-contained breathing apparatus
    5.4 Remark:Cool containers / tanks with water spray. Water mist may be used to cool closed containers. Fine dust dispersed in air may ignite. Risks of ignition followed by flame propagation or secondary explosions shall be prevented by avoiding accumulation of dust, e.g. on floors and ledges.

    6. Accidental release measures

    6.1 Personal precautions:Spilled material may cause a slipping Hazard.
    6.2 Methods for cleaning up:Vacuum or sweep up material and place into a suitable disposal container.

    7. Handling and storage

    7.1 Handling:Avoid contact with molten polymer. Avoid generation of dust and electrostatic charge.
    7.2 Storage:Protect against moisture. Store cool and keep packaging closed when not in use. Avoid sources of ignition.

    8. Exposure controls/ personal protection

    8.1 Technical safety measures:Use with adequate ventilation. Minimize dust generation and accumulation as combustible dust mixtures may be formed.
    8.2 Personal safety equipment:Use adequate safety equipment, e.g. protective clothing, eye protection glasses, heat protection gloves. In case of dust formation wear mask with particle filter.
    8.3 Work hygiene:No eating or drinking during working. Avoid contact of hot material with the skin. Avoid breathing dust and vapors.

    9. Physical and chemical properties

    9.1 Form:Spool
    9.2 Color:Various
    9.3 Odor:Sweet
    9.4 Melting Temperature:150-180C
    9.5 Oxidizing properties:Not self-igniting / flammable
    9.6 Explosions limits:No test data
    9.7 Density:1.25 g/cm³
    9.8 Solubility in water:Insoluble

    10. Stability and reactivity

    10.1 Stability:The product is stable at recommended storage conditions.
    10.2 Conditions to be avoided:Stable under recommended conditions of storage and handling.
    10.3 Substances to be avoided:No special recommendations.
    10.4 Hazardous decomposition products:Decomposition products depend upon temperature, air supply and the presence of other materials. Processing may release fumes and other decomposition products. At temperatures exceeding melt temperatures, polymer fragments can be released. Fumes can be irritating. Decomposition products can include and are not limited to: Combustible gases.

    11. Toxicological information

    11.1 Local irritation:Eye, Skin, Inhalation, Ingestion.
    11.2 Other remarks:Product dust may be irritating to eyes, skin and respiratory system. Resin particles, like other inert materials, are mechanically irritating to eyes. Ingestion may cause gastrointestinal irritation, nausea, vomiting and diarrhea.

    12. Ecological information

    12.1 Ecological info:EC50/72h/algae > 1100 mg/L
    12.2 Biological degradation:Inherently biodegradable under industrial composting conditions.
    12.3 Bioaccumulation:Not expected to bioconcentrate or bioaccumulate. Data for Component: White mineral oil (petroleum)(8042-47-5) Bioconcentration potential is high (BCF > 3000 or Log Pow between 5 and 7). Bioconcentration Factor (BCF): 1,900; Fish; Estimated.

    13. Disposal considerations

    13.1 Product:In accordance with local and national regulations. Should not be released into the environment. Do not contaminate ponds, waterways or ditches with chemical or used container.
    13.2 Uncleaned packaging:Packaging material has to be emptied completely and disposed in accordance with the regulations. Packaging can be recycled if not contaminated.

    14. Transport information

    14.1 Transport regulations:Not classified as hazardous under transport regulations DOT, ICAO/IATA, IMDG/GGVSee, ICAO/IATA

    15. Regulatory information

    15.1 EPA regulations:Sara 313 title III: Not Listed
    TSCA Inventory List: Listed

    16. Other information

    This data is based on the current state of our information and experience. This safety data sheet describes our product in terms of safety requirements. Preceding data is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.

    Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.

    Download SDS (PDF)

    The COEX Advantage

    • Tolerance:

      At Coex 3D, we use multi axis laser measuring heads to ensure a tolerance of ±.03mm. Reliability, print after print, spool after spool.

    • Quality:

      All Coex 3D filament is manufactured in our Green Bay, WI production facility. This allows us to ensure consistent quality for every spool through control of every aspect of the manufacturing process.

    • Packaging:

      Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag. No need to dry when you receive your order.

    • Tested:

      Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag. No need to dry when you receive your order.
