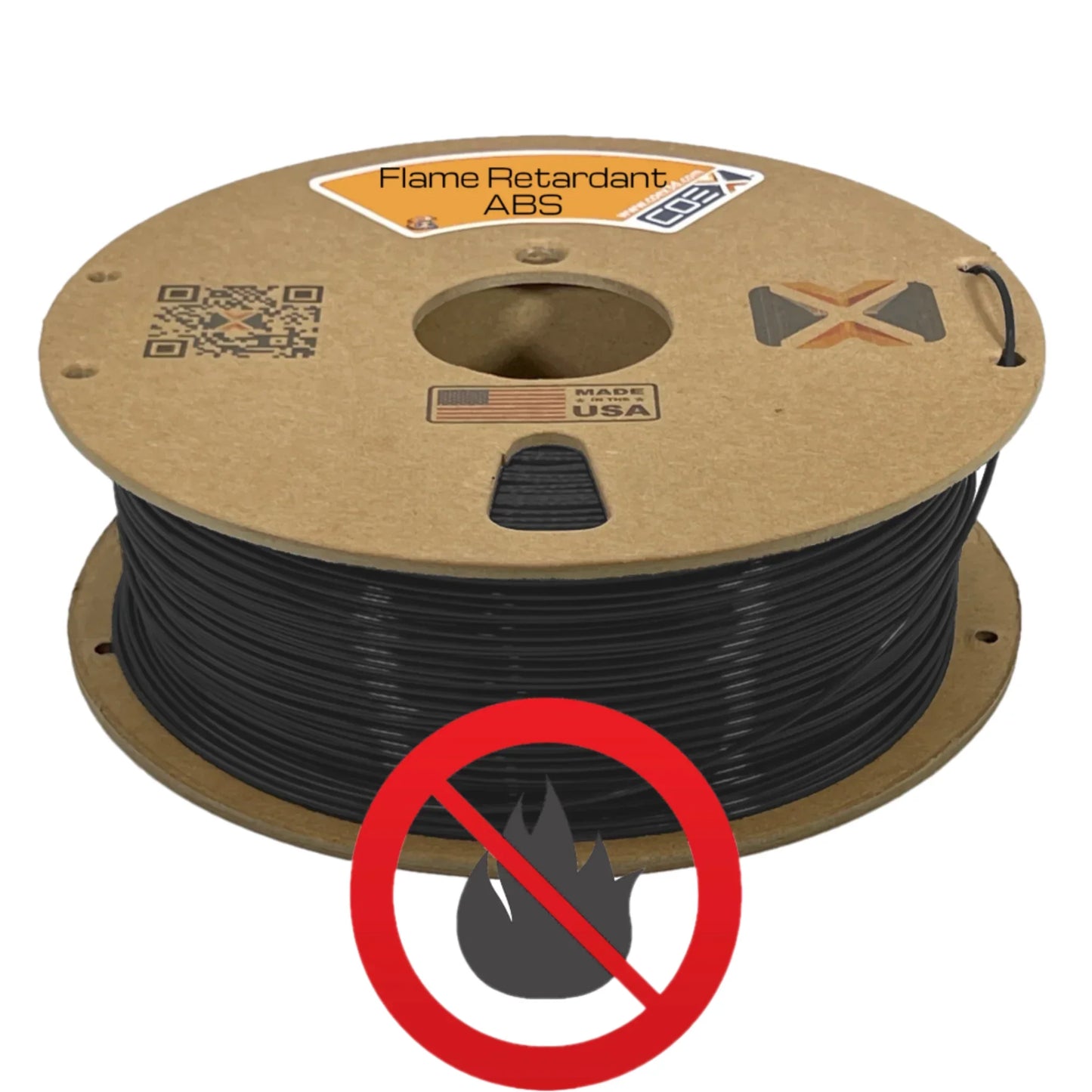

Flame Retardant Black ABS
Our flame retardant ABS filament is made using a premium UL94 V-0 rated ABS resin. This filament is ideal for applications that require self-extinguishing properties. (UL yellow card information available upon request.)
Flame Rating (UL94)*
-
-
- 1.5mm: V-0
- 2.0mm: V-0, 5VB
- 2.5mm: V-0, 5VA
- 3.0mm: V-0, 5VA
-
*This is the UL94 rating of base resin we use to make Coex Brand Flame Retardant ABS Filament.
Safety Note: Direct ventilation from your printer is required to print our Flame Retardant ABS. We highly recommend venting outside or via HEPA and carbon filtration.
Warning! Never let Flame Retardant filament cool in your printer nozzle. Always remove the filament while nozzle is still hot and purge with standard ABS after printing.
Technical Printing Guide - COEX ABS
1. Material Notes
- Keep filament dry - store properly and dry before use
- If needed, dry at 75°C for 3 hours or more
- Enclosure is nessecary
- Use Z-offset slightly higher than PLA (+0.05mm)
- Enable "Avoid crossing perimeters" to reduce stringing
- Consider using the "Wipe while retract" option
- Enable "Slow down for small perimeters."
- Print outer walls slower for better quality
- Use a minimum layer time of 30 seconds for small parts
- Consider using "Extra Prime Amount" after retraction
2. Temperature Settings
Bed Temperature: 80-100°C
- Wash the bed often for good adhesion - Use dish soap and rinse thoroughly to remove oils
- Use bed adhesion products if necessary (gluestick, WELD3D)
- Use brim for tall or large prints
- Keep the ambient temperature stable
Extruder Temperature: 245-265°C
3. Basic Parameters
| Nozzle | Layer Height | Line Width | Volumetric Speed | Temperature |
| 0.4mm | 0.2mm | 0.42mm | 14.0 mm³/s | 250°C |
| 0.6mm | 0.3mm | 0.62mm | 31.5 mm³/s | 255°C |
| 0.8mm | 0.4mm | 0.82mm | 56.0 mm³/s | 260°C |
| 1.0mm | 0.5mm | 1.02mm | 87.5 mm³/s | 265°C |
4. Speed Settings
0.4mm Nozzle (Volumetric Speed: 14.0 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 83.33 mm/s |
| Internal Perimeters | 75% | 125.00 mm/s |
| Infill | 100% | 166.67 mm/s |
| Top/Bottom | 60% | 100.00 mm/s |
| First Layer | 30% | 50.00 mm/s |
0.6mm Nozzle (Volumetric Speed: 31.5 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 84.68 mm/s |
| Internal Perimeters | 75% | 127.02 mm/s |
| Infill | 100% | 169.35 mm/s |
| Top/Bottom | 60% | 101.61 mm/s |
| First Layer | 30% | 50.81 mm/s |
0.8mm Nozzle (Volumetric Speed: 56.0 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 85.37 mm/s |
| Internal Perimeters | 75% | 128.05 mm/s |
| Infill | 100% | 170.73 mm/s |
| Top/Bottom | 60% | 102.44 mm/s |
| First Layer | 30% | 51.22 mm/s |
1.0mm Nozzle (Volumetric Speed: 87.5 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 85.78 mm/s |
| Internal Perimeters | 75% | 128.68 mm/s |
| Infill | 100% | 171.57 mm/s |
| Top/Bottom | 60% | 102.94 mm/s |
| First Layer | 30% | 51.47 mm/s |
4. Retraction Settings
IMPORTANT: Set travel speed to the maximum your machine allows (200-500mm/s). Faster movements reduce filament oozing time, minimizing stringing.
| Nozzle | Distance | Speed | Z-Hop |
| 0.4mm | 1.0-1.5mm | 40mm/s | 0.2mm |
| 0.6mm | 1.0-1.5mm | 40mm/s | 0.2mm |
| 0.8mm | 1.0-1.5mm | 40mm/s | 0.2mm |
| 1.0mm | 1.0-1.5mm | 40mm/s | 0.2mm |
6. Cooling Settings
Cooling Configuration:
-
- First Layer: 0% (fan off)
- General Printing: 100% base fan speed
- Bridges and Overhangs: 100% fan speed
- Layers < 15 seconds: 100% fan speed
7. Troubleshooting Guide
| Problem | Solution |
| Irregular extrusion |
1. Dry the filament 2. Check the extruder 3. Reduce speed |
| Poor adhesion |
1. Dry the filament 2. Use adhesive 3. Adjust the first layer |
| Stringing |
1. Dry the filament 2. Adjust retraction 3. Increase travel speed 4. Check temperature |
PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.
CX16 Flame Retardant ABS Technical Data Sheet
Yellow Card Sheet: CX16 ABS FLAME RETARDANT 3D PRINTING FILAMENT
YELLOW CARD Rev 1.0
Flammability
| Flame Rating | Value | Test Method |
|---|---|---|
| 1.0 mm, ALL | HB | UL 94 |
| 1.5 mm, ALL | V-0 | UL 94, IEC 60695-11-10, -20 |
| 1.8 mm, ALL | V-0 | UL 94 |
| 2.0 mm, ALL | V-0, 5VA | IEC 60695-11-10, -20 |
| 2.5 mm, ALL | V-0, 5VA | UL 94, IEC 60695-11-10, -20 |
| 3.0 mm, ALL | V-0, 5VA | UL 94, IEC 60695-11-10, -20 |
| 1.0 mm, ALL | HB75 | IEC 60695-11-10, -20 |
Electrical
| Property | Value | Test Method |
|---|---|---|
| Hot-wire Ignition (HWI) | ||
| 1.5 mm | PLC 3 | UL 746A |
| 1.8 mm | PLC 3 | |
| 2.0 mm | PLC 2 | |
| 2.5 mm | PLC 2 | |
| 3.0 mm | PLC 2 | |
| High Amp Arc Ignition (HAI) | ||
| 1.5 mm | PLC 0 | UL 746A |
| 1.8 mm | PLC 0 | |
| 2.0 mm | PLC 0 | |
| 2.5 mm | PLC 0 | |
| 3.0 mm | PLC 0 | |
| Comparative Tracking Index (CTI) | PLC 2 | UL 746A |
| High Voltage Arc Tracking Rate (HVTR) | PLC 3 | UL 746A |
| Arc Resistance | PLC 6 | ASTM D495 |
Thermal
| Property | Value | Test Method |
|---|---|---|
| RTI Elec | ||
| 1.0 mm | 60.0 °C | UL 746B |
| 1.5 mm | 60.0 °C | |
| 1.8 mm | 85.0 °C | |
| 2.0 mm | 85.0 °C | |
| 2.5 mm | 85.0 °C | |
| 3.0 mm | 85.0 °C | |
| RTI Imp | ||
| 1.0 mm | 60.0 °C | UL 746B |
| 1.5 mm | 60.0 °C | |
| 1.8 mm | 85.0 °C | |
| 2.0 mm | 85.0 °C | |
| 2.5 mm | 85.0 °C | |
| 3.0 mm | 85.0 °C | |
| RTI Str | ||
| 1.0 mm | 60.0 °C | UL 746B |
| 1.5 mm | 60.0 °C | |
| 1.8 mm | 80.0 °C | |
| 2.0 mm | 80.0 °C | |
| 2.5 mm | 80.0 °C | |
| 3.0 mm | 80.0 °C | |
Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.
CX16 Flame Retardant ABS Safety Data Sheet
Material Safety Data Sheet: CX16 ABS FLAME RETARDANT 3D PRINTING FILAMENT
MSDS Rev 1.0
BASE RESIN: LG CHEM ABS AF 366A
1. Identification of the substance/preparation and of the company
1228 Elizabeth ST
Green Bay, WI 54302
Phone: (920) 757-1055
2. Hazards identification
2.1 Threshold Limit
2.2 Effect of overexposure:
- Eye Contact: Solid or dust may cause irritation or corneal injury due to mechanical action
- Skin Contact: Essentially nonirritating to skin, Mechanical injury only
- Skin Absorption: Unlikely due to physical properties
- Ingestion: Unlikely due to physical state
- Inhalation: Dust may cause irritation to respiratory. In case of breathing, fumes released from heated material may cause respiratory irritation
- Chronic Effects: Not Available
- Mutagenicity: Not Available
3. Composition / information on ingredients
3.1 Chemical characteristics:
| CAS # | Hazardous Components | Concentration |
|---|---|---|
| 9003-56-9 | ABS | 70 ~ 90% |
| 79-94-7 | Flame Retardants | 5 ~ 20% |
| 1309-64-4 | Flame Synergists | 2 ~ 6% |
4. First-aid measures
5. Fire-fighting measures
6. Accidental release measures
7. Handling and storage
8. Exposure controls/ personal protection
9. Physical and chemical properties
10. Stability and reactivity
11. Toxicological information
12. Ecological information
13. Disposal considerations
14. Transport information
15. Regulatory information
15.1 U.S. REGULATIONS: TSCA INVENTORY STATUS: This product complies with the Chemical Substance Inventory requirements of the US EPA TSCA.
CERCLA SECTION 103 (40CFR302.4): Not Listed
SARA SECTION 313 (40CFR372.65): Not Listed
SARA HAZARD CATEGORIES, SARA SECTIONS 311/312 (40CFR370.21): ACUTE: Not Listed, CHRONIC: Not Listed, FIRE: Not Listed, REACTIVE: Not Listed, SUDDEN RELEASE: Not Listed
STATE REGULATIONS: California Proposition 65: Not Listed
EUROPEAN REGULATIONS: EC NUMBER: Not assigned. This product complies with the requirements of resolution of European Parliament (WE) no. 1907/2006 Dated December 18 2006 concerning REACH (European Union Official Register L396 with its changes In EU Official Register no. L136)
16. Other information
Product should be handled, stored, and used in accordance with the generally accepted industrial hygiene practices and in conformity with all the applicable legal regulations. The information provided herein is based on the knowledge possessed at this present time from the view point of safety requirements. It should, therefore, not be construed as guaranteeing specific properties.
Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.
CX16 Flame Retardant ABS Yellow Card
Technical Data Sheet: CX20 COEX-FLEX TPE 30D SERIES 3D PRINTING FILAMENT
TDS Rev 1.0
BASE RESIN: DuPont Hytrel
Physical Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Specific Gravity - Density | ISO 1183 | g/cm³ | 1.07 |
| Melting Temperature, 10°C/min | ISO 11357-1/-3 | °C | 150 |
| Vicat Softening Temp, 50°C/h, 10N | ISO 306 | °C | 105 |
| Hardness, Shore D (max) | ISO 868 | - | 30 |
Mechanical Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Tensile Stress @ Break | ISO 527 Type 1BA | MPa | 24 |
| Tensile Modulus | ISO 527 Type 1A | MPa | 23 |
| Nominal Strain @ Break | ISO 527 Type 1BA | % | ≥ 900 |
| Tensile Stress @ 50% | ISO 527 Type 1BA | MPa | 5 |
| Notched & Unnotched Izod Impact | ISO 180/1A | J/m | No Break |
| Shrinkage Rate < 0.5% | ISO 294-4 | mm/mm | 0.50 - 0.80% |
Thermal Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Glass Transition Temperature (Tg) | ISO 11357-2 | °C | -60.0 |
| Melt Temperature | - | °C | 170 |
| Drying Temperature @ 3 hours | - | °C | 80 |
SPECIFICATIONS
| Filament Size: | 1.75mm | (in) | 2.85mm | (in) |
|---|---|---|---|---|
| MIN Diameter: | 1.72mm | 0.0677 in | 2.79mm | 0.1098 in |
| MAX Diameter: | 1.78mm | 0.0701 in | 2.91mm | 0.1146 in |
| Tolerance | +/- .03mm | +/- 0.0012 in | +/- .06mm | +/- 0.0024 in |
ADVANTAGES
- Resilient, Flexible, Heat Resistant, Chemical Resistant, Strong, Durable
- Contains up to 60% renewably sourced materials from biomass
- Combines the flexibility of rubber with the strength and processability of thermoplastics
Printed Specimen Conditions
| Printer: | Open Source FDM/FFF |
| Nozzle: | 0.4mm |
| Layer Height: | 0.25mm |
| Infill: | 100%, +/-45° |
| Extrusion Temp: | 200 - 240°C |
| Bed Temp: | 40°C |
| Specimen Orientation: | XY Flat and Vertical |
| Printing Speed | 15mm/sec.. |
Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.
