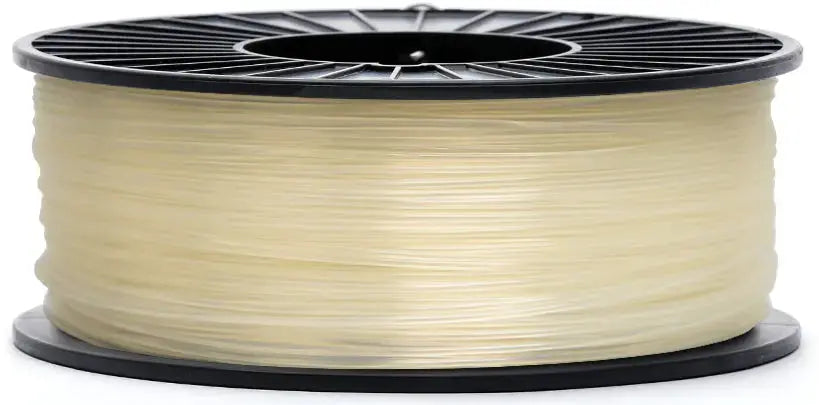

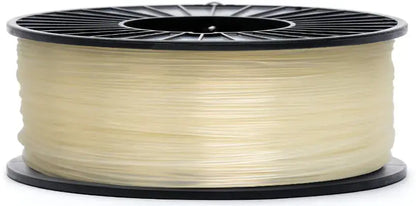

• Natural CoexNylex unfilled nylon white 3D printer filament spool on white background

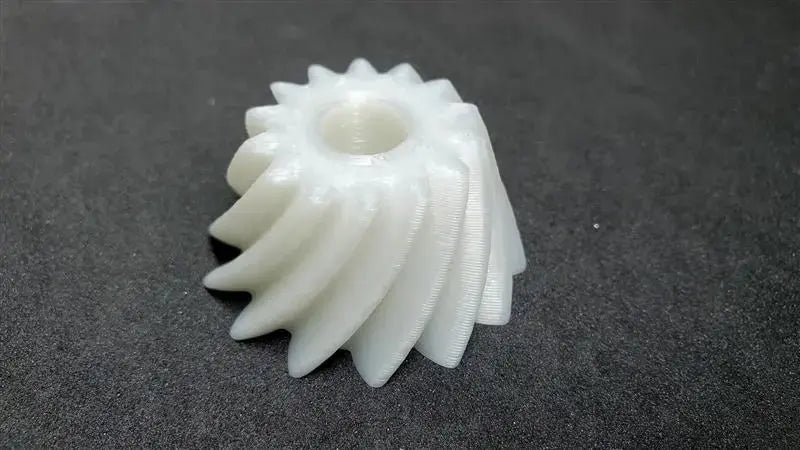

  • White 3D printed nylon gear on dark surface, CoexNylex unfilled filament

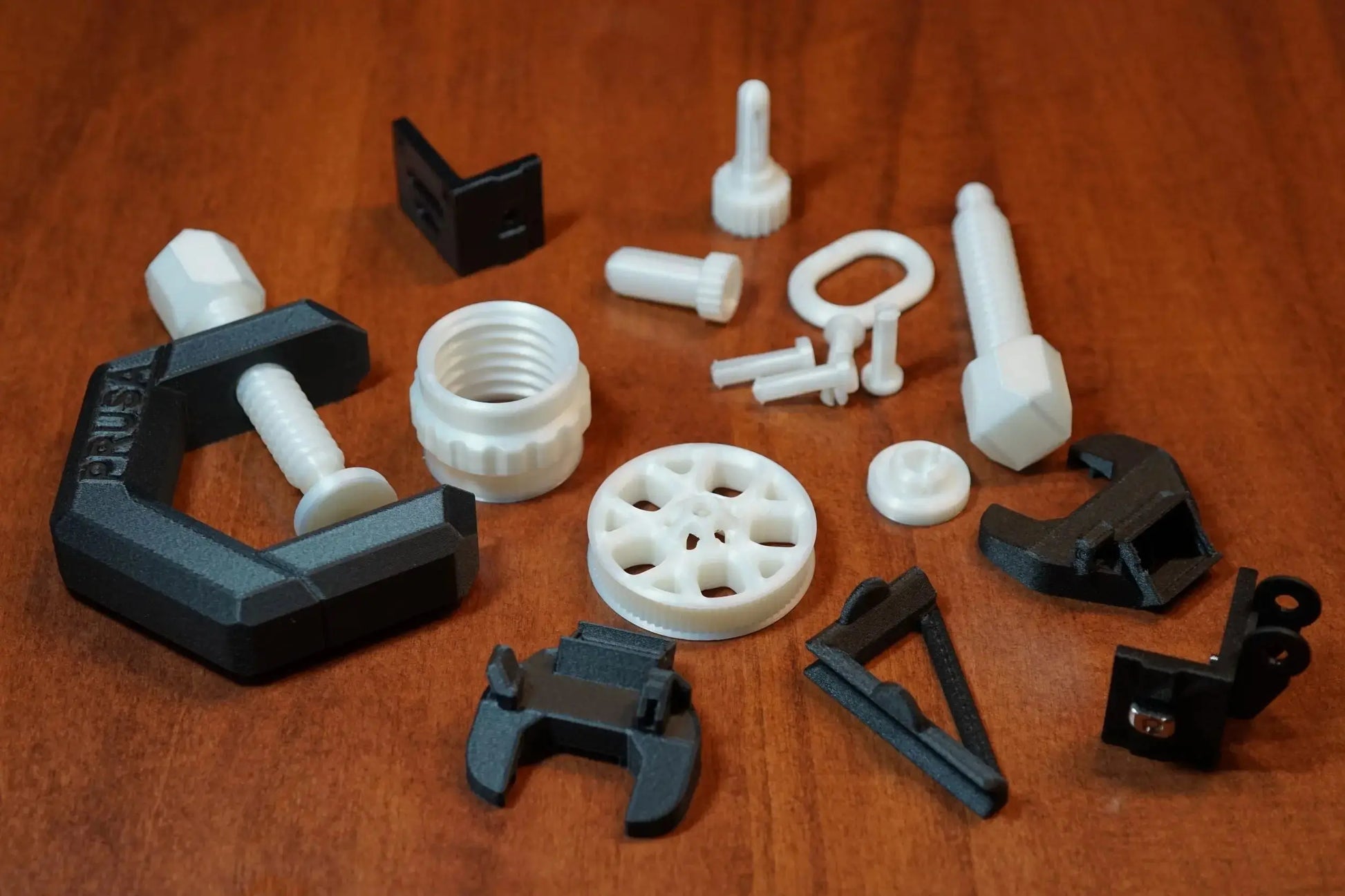

  • 3D printed white and black nylon mechanical parts on wooden table

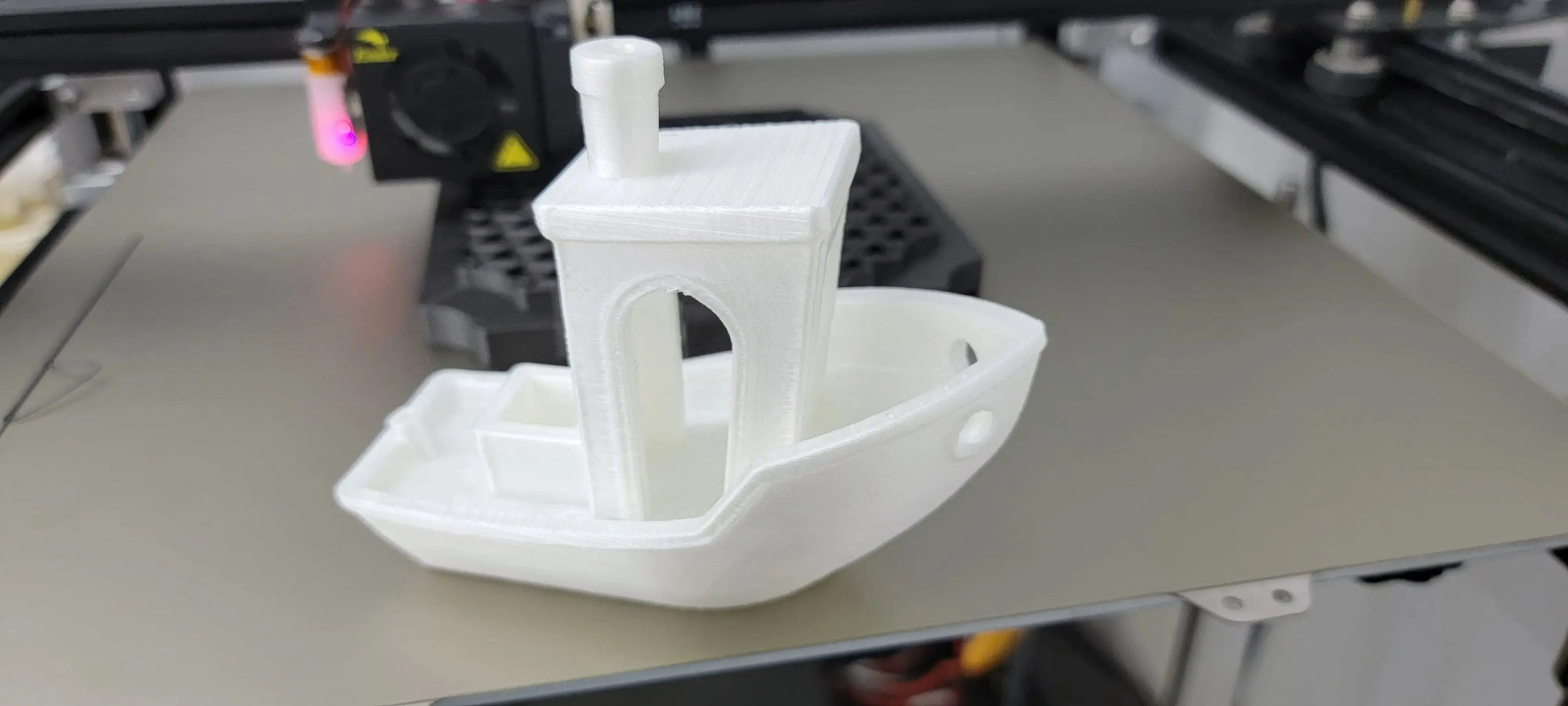

  • White nylon 3D printed boat model on a 3D printer bed, CoexNylex filament sample

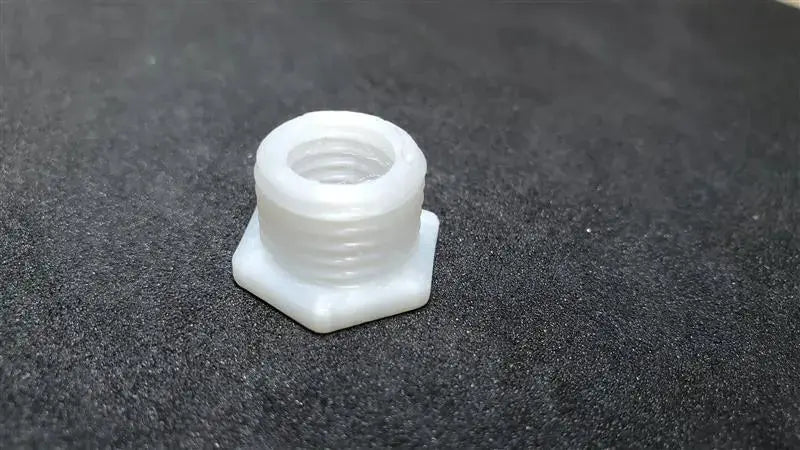

  • White unfilled nylon hex threaded insert on black background, 3D printed sample
1 5

COEX 3D

White CoexNylex™ Unfilled Nylon

White CoexNylex™ Unfilled Nylon

CX21-0200-18-1KG

Diameter
Weight

2 in stock

$85.00 USD
$85.00 USD $85.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

White CoexNylex™ Unfilled Nylon *NEW FORMULATION*

Coex White CoexNylex™ Unfilled Nylon is manufactured from the highest quality nylon resin. Coex Nylex is able to be printed on most 3D printers to produce extremely durable and strong parts.

Recommended print settings:

  • Print on a solvent-cleaned surface heated to 85°C-110°C
  • Recommended print temperature 245°C-295°C
  • Part cooling fan is not recommended. It may cause layer delamination.
  • Start retraction at 1-1.5 mm at 10-30 mm/sec for direct-drive extruders and 2.5 mm at 30-35 mm/sec for indirect-drive extruders


Coex 3D Filament Slicer Profiles

CX21 CoexNylex Unfilled Technical Data Sheet

Technical Data Sheet: CX21 COEX-NYLEX UNFILLED SERIES 3D PRINTING FILAMENT

TDS Rev 1.0

BASE RESIN: DuPont Zytel

Physical Properties

PropertyStandardUnitTypical Value
Specific Gravity - DensityISO 1183g/cm³1.09
Melting Temperature, 10°C/minISO 11357-1/-3°C198

Mechanical Properties

PropertyStandardUnitTypical Value
Tensile Stress @ BreakISO 527 Type 1BAMPa40
Tensile ModulusISO 527 Type 1AMPa23
Nominal Strain @ BreakISO 527 Type 1BA%15
Tensile Stress @ 50%ISO 527 Type 1BAMPa55
Notched Izod ImpactISO 180/1AkJ/m²3

Thermal Properties

PropertyStandardUnitTypical Value
Drying Temperature @ 12 hours-°C85

SPECIFICATIONS

Filament Size:1.75mm(in)2.85mm(in)
MIN Diameter:1.72mm0.0677 in2.79mm0.1098 in
MAX Diameter:1.78mm0.0701 in2.91mm0.1146 in
Tolerance+/- .03mm+/- 0.0012 in+/- .06mm+/- 0.0024 in

ADVANTAGES

  • Heat Resistant, Chemical Resistant, Strong, Durable
  • Lightweight and incredibly strong material to make durable, functional parts.

Printed Specimen Conditions

Printer:Open Source FDM/FFF
Nozzle:0.4mm
Layer Height:0.25mm
Infill:100%, +/-45°
Extrusion Temp:245 - 295°C
Bed Temp:80 - 110°C
Specimen Orientation:XY Flat and Vertical
Printing Speed60mm/sec..

Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.

The COEX Advantage

  • Tolerance:

    At Coex 3D, we use multi axis laser measuring heads to ensure a tolerance of ±.03mm. Reliability, print after print, spool after spool.

  • Quality:

    All Coex 3D filament is manufactured in our Green Bay, WI production facility. This allows us to ensure consistent quality for every spool through control of every aspect of the manufacturing process.

  • Packaging:

    Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag. No need to dry when you receive your order.

  • Tested:

    Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag. No need to dry when you receive your order.
