Transition "Mystery" Color PCTG Prime

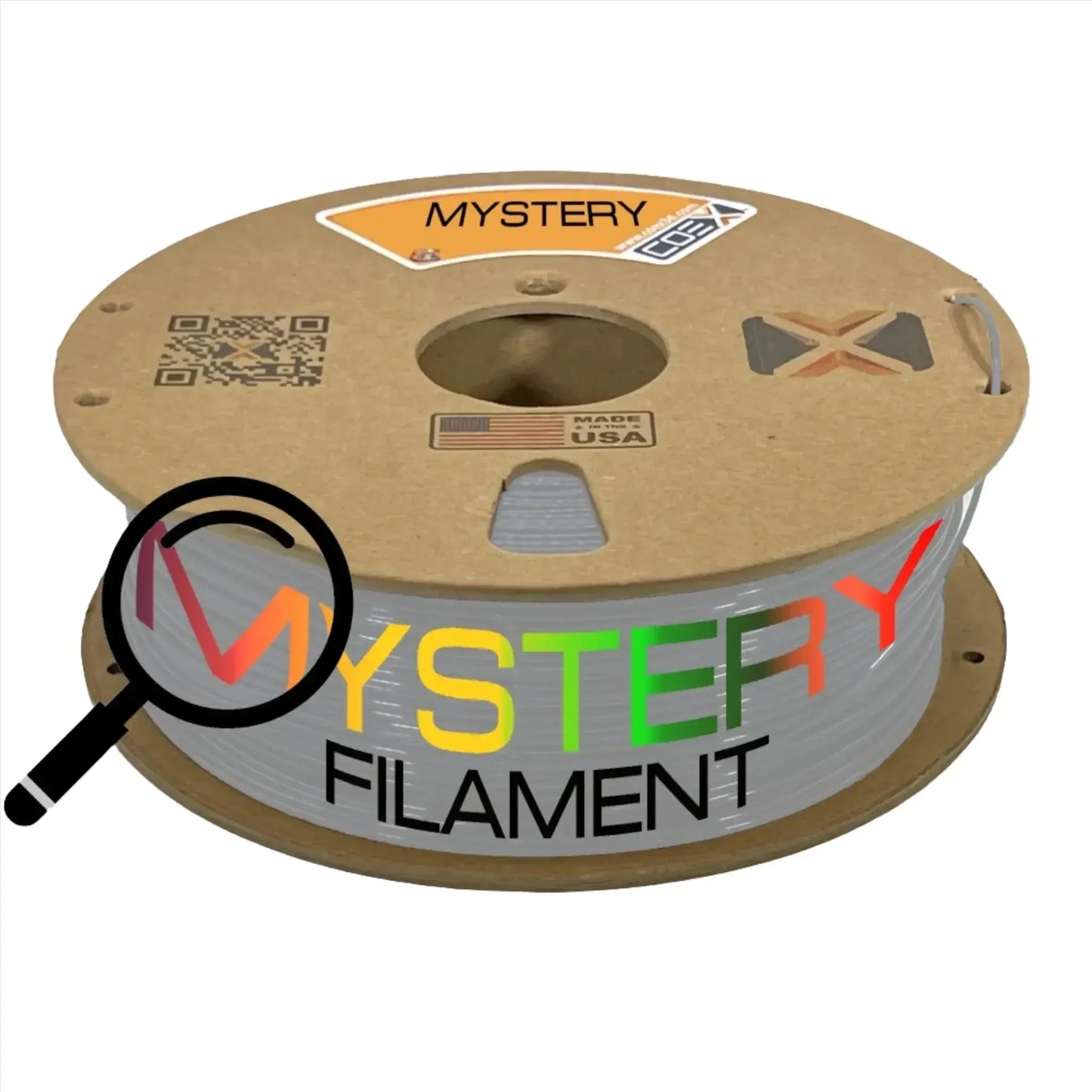

Transition Mystery Color PCTG Prime Filament

Our transition color PCTG Prime filament is the same high quality PCTG Prime filament that our customers trust but in "mystery colors." These varying colors are the result of our changeovers from one of our standard color to another during production of our filament and cannot be reproduced. While supplies last. Items are not returnable or refundable due to color.

Note: These are not a rainbow filament. The color change in each spool will vary and be very gradual.

*This product is limited to availability as we make changeovers. If you cannot add it to your cart, we are sorry, but we are out of stock.

COEX PCTG Prime print settings

Print PCTG Prime with a 250–280°C nozzle, a 75–90°C bed and the fan at 20–50%, and dry it at 65°C for 4–6 hours. An enclosure is recommended.

These are COEX 3D's recommended starting settings, made to match the COEX 3D filament settings tables for every filament we make in Green Bay, Wisconsin. Treat each value as a starting point and adjust it for your printer.

1. Material notes

Keep filament dry: store it sealed, and dry it again only after the spool has been exposed to air
Dry an opened spool at 65°C for 4–6 hours
An enclosure is recommended
Use a Z-offset slightly higher than for PLA (+0.05mm)
Enable "Avoid crossing perimeters" to reduce stringing
Consider using the "Wipe while retract" option
Enable "Slow down for small perimeters"
Print outer walls slower for better quality
Use a minimum layer time of 30 seconds for small parts
Increase cooling gradually after the first layer
Consider using "Extra Prime Amount" after retraction

2. Temperature settings

Nozzle temperature: 250–280°C

Bed temperature: 75–90°C

Wash the bed often for good adhesion: use dish soap and rinse thoroughly to remove oils
Bed adhesion: use a glue stick or hairspray as a release agent, or WELD3D. PETG and PCTG bond very strongly to glass and smooth PEI, so a release agent protects both the print and the plate
Use a brim for tall or large prints
Keep the ambient temperature stable

3. Basic parameters

COEX PCTG Prime basic parameters by nozzle size
Nozzle	Layer height	Line width	Max volumetric speed	Nozzle temperature
0.4mm	0.2mm	0.42mm	14.0 mm³/s	250°C
0.6mm	0.3mm	0.62mm	31.5 mm³/s	250°C
0.8mm	0.4mm	0.82mm	56.0 mm³/s	250°C
1.0mm	0.5mm	1.02mm	87.5 mm³/s	265°C

4. Speed settings

0.4mm nozzle (max volumetric speed 14.0 mm³/s)

COEX PCTG Prime speeds for a 0.4mm nozzle
Line type	Percentage	Speed
External perimeter	50%	83.33 mm/s
Internal perimeters	75%	125.00 mm/s
Infill	100%	166.67 mm/s
Top/bottom	60%	100.00 mm/s
First layer	30%	50.00 mm/s

0.6mm nozzle (max volumetric speed 31.5 mm³/s)

COEX PCTG Prime speeds for a 0.6mm nozzle
Line type	Percentage	Speed
External perimeter	50%	84.68 mm/s
Internal perimeters	75%	127.02 mm/s
Infill	100%	169.35 mm/s
Top/bottom	60%	101.61 mm/s
First layer	30%	50.81 mm/s

0.8mm nozzle (max volumetric speed 56.0 mm³/s)

COEX PCTG Prime speeds for a 0.8mm nozzle
Line type	Percentage	Speed
External perimeter	50%	85.37 mm/s
Internal perimeters	75%	128.05 mm/s
Infill	100%	170.73 mm/s
Top/bottom	60%	102.44 mm/s
First layer	30%	51.22 mm/s

1.0mm nozzle (max volumetric speed 87.5 mm³/s)

COEX PCTG Prime speeds for a 1.0mm nozzle
Line type	Percentage	Speed
External perimeter	50%	85.78 mm/s
Internal perimeters	75%	128.68 mm/s
Infill	100%	171.57 mm/s
Top/bottom	60%	102.94 mm/s
First layer	30%	51.47 mm/s

5. Retraction settings

Important: Set travel speed to the maximum your machine allows (200–500mm/s). Faster moves give the filament less time to ooze, which reduces stringing.

COEX PCTG Prime retraction by nozzle size
Nozzle	Distance	Speed	Z-hop
0.4mm	1.0–1.5mm	40mm/s	0.2mm
0.6mm	1.0–1.5mm	40mm/s	0.2mm
0.8mm	1.0–1.5mm	40mm/s	0.2mm
1.0mm	1.0–1.5mm	40mm/s	0.2mm

6. Cooling settings

Fan speed settings:

First layer: 0% (fan off)
General printing: 40% fan speed
Bridges and overhangs: 50% fan speed
Layers under 30 seconds: 50% fan speed

Advanced settings:

Keep fan always on: yes
Force fan speed for overhangs: yes
Minimum layer time: 30 seconds
Force fan speed for small perimeters: yes

Additional cooling notes:

Increase fan speed gradually after the first layer
Increase fan speed for small, detailed parts
Reduce fan speed for better layer adhesion if needed
Watch overhang and bridge quality and adjust fan speed to suit

7. Troubleshooting

COEX PCTG Prime troubleshooting
Problem	Solution
Irregular extrusion	Dry the filament Check the extruder Reduce speed
Poor adhesion	Dry the filament Use an adhesive Adjust the first layer
Stringing	Dry the filament Adjust retraction Increase travel speed Check temperature

Please note: These printing parameters are initial recommendations based on our experience. They may need adjustment for your specific 3D printer, environmental conditions and the geometry of the part you are printing. Use them as a starting point and fine-tune them for your needs.

Coex 3D Filament Slicer Profiles

CX15 PCTG Prime Technical Data Sheet

Technical Data Sheet: CX13 PCTG SERIES 3D PRINTING FILAMENT

TDS Rev 2.0

BASE RESIN: Selenis Mimesis PCTG Copolyester

Physical Properties

Property	Standard	Unit	Typical Value
Specific Gravity - Density	ASTM D792	g/cc	1.27
Melt Density @200°C	ASTM D1238	g/cm³	N/A
UL Flammability Class. @1.14mm	UL 94	N/A	N/A

Mechanical Properties

Property	Standard	Unit	Typical Value
Tensile Yield Strength	ASTM D638	MPa	50
Tensile Modulus	ASTM D638	MPa	2175
Tensile Elongation	ASTM D638	%	84
Flexural Stress	ISO 178	MPa	61
Notched Izod Impact	ASTM D256	J/m	5.2
Shrinkage Rate < 1%	ASTM D955	mm/mm	0.2 - 0.5

Thermal Properties

Property	Standard	Unit	Typical Value
Glass Transition Temperature (Tg)	DSC	°C	80 - 85
Heat Distortion Temp @ 0.45MPa	ASTM D648	°C	71
Decomposition Temperature	ASTM 3418	°C	N/A

SPECIFICATIONS

Filament Size:	1.75mm	(in)	2.85mm	(in)
MIN Diameter:	1.72mm	0.0677 in	2.79mm	0.1098 in
MAX Diameter:	1.78mm	0.0701 in	2.91mm	0.1146 in
Tolerance	+/- .03mm	+/- 0.0012 in	+/- .06mm	+/- 0.0024 in

CERTIFICATIONS

Meets ISO 10992 and/or USP Class VI biocompatibility requirements; Food Contact Status compliant

Printed Specimen Conditions

Printer:	Open Source FDM/FFF
Nozzle:	0.4mm
Layer Height:	0.25mm
Infill:	100%, +/-45°
Extrusion Temp:	250°C
Bed Temp:	80°C
Specimen Orientation:	XY Flat
Unannealed

Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.

Download TDS (PDF)

CX15 PCTG Prime Safety Data Sheet

Material Safety Data Sheet: CX15 PCTG PRIME SERIES 3D PRINTING FILAMENT

MSDS Rev 1.0

BASE RESIN: Selenis Mimesis

1. Identification of the substance/preparation and of the company

1.1 Trade name:Coex PCTG Prime 3D printer filament

1.2 Use of the product:3D printer filament, thermoplastic polymer

1.3 Supplier:Coex
1228 Elizabeth ST
Green Bay, WI 54302
Phone: (920) 757-1055

2. Hazards identification

2.1 Classification:Not applicable

3. Composition / information on ingredients

3.1 Chemical characteristics:

CAS #	Components	Concentration
-	Copolyester	> 99.9%
-	Additives	< .1%

4. First-aid measures

4.1 On skin contact:In case of contact with molten polymer immediately cool the skin with cold water. Medical aid may be required to remove adhering material and for treatment of burns.

4.2 After inhalation:Remove from exposure and move to fresh air immediately. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Get medical aid.

4.3 On ingestion:Do not induce vomiting unless directed by medical personnel. Never give anything by mouth to an unconscious person. Get medical attention if symptoms occur and show the TDS.

4.4 On eye contact:In case of contact, immediately flush eyes with copious amounts of water for at least (15) minutes.

5. Fire-fighting measures

5.1 Suitable fire extinguishing media:Use an extinguishing agent suitable to local circumstances and the surrounding environment. Example: Water Spray, Dry Chemical Powder and Carbon Dioxide.

5.2 Unsuitable extinguishing media:Avoid the use of water jets for extinguishing.

5.3 Special exposure hazards:Not available

5.4 Special protective equipment:Self-contained breathing apparatus

5.5 Remark:Powdered material may form explosive dust-air mixtures. High voltage static electricity build-up and discharge must be avoided when significant quantities of powdered material are present.

6. Accidental release measures

6.1 Personal precautions:Use suitable protective clothing. Avoid eye contact and inhalation of dusts. Keep ignition sources away.

6.2 Methods for cleaning up:Vacuum or sweep up material and place into a suitable disposal container.

7. Handling and storage

7.1 Handling:Avoid contact with molten polymer. Avoid generation of dust and electrostatic charge.

7.2 Storage:Protect against moisture. Store cool and keep packaging closed when not in use. Avoid sources of ignition.

8. Exposure controls/ personal protection

8.1 Technical safety measures:Good general ventilation (typically 10 air changes per hour) should be used. Provide for appropriate exhaust ventilation and dust collection at machinery. Provide exhaust ventilation at places where dust is formed.

8.2 Personal safety equipment:Use adequate safety equipment, e.g. protective clothing, eye protection glasses, heat protection gloves. In case of dust formation wear mask with particle filter.

8.3 Work hygiene:No eating or drinking during working. Avoid contact of hot material with the skin. Avoid breathing dust and vapors.

9. Physical and chemical properties

9.1 Form:Spool

9.2 Color:Various

9.3 Odor:Slight

9.4 Oxidizing properties:Not self-igniting / flammable

9.5 Explosions limits:Not Available

9.6 Density:1.27 g/cm³

9.7 Solubility in water:Insoluble

10. Stability and reactivity

10.1 Stability:The product is stable at recommended storage conditions.

10.2 Conditions to be avoided:Stable under recommended conditions of storage and handling.

10.3 Substances to be avoided:No special recommendations.

10.4 Hazardous decomposition products:Carbon monoxide, carbon dioxide, acetaldehyde

11. Toxicological information

11.1 Local irritation:No data available.

11.2 Other remarks:No data available.

12. Ecological information

12.1 Ecological info:This product is not classified as environmentally hazardous. However, this does not exclude the possibility that large or frequent spills can have a harmful or damaging effect on the environment.

12.2 Biological degradation:No data available.

12.3 Bioaccumulation:This product will not readily bioaccumulate due to its insolubility in water.

13. Disposal considerations

13.1 Product:The generation of waste should be avoided or minimized wherever possible. Waste packaging should be recycled. Incineration or landfill should only be considered when recycling is not feasible. Special precautions : This material and its container must be disposed of in a safe way. Empty containers or liners may retain some product residues. Avoid dispersal of spilt material and runoff and contact with soil, waterways, drains and sewers.

13.2 Uncleaned packaging:Packaging material has to be emptied completely and disposed in accordance with the regulations. Packaging can be recycled if not contaminated.

14. Transport information

14.1 Transport regulations:Not classified as hazardous under transport regulations DOT, ICAO/IATA, IMDG/GGVSee, ICAO/IATA

15. Regulatory information

15.1 EPA regulations: This material meets the EPA 'Hazard Categories' defined for SARA Title III Sections 311/312 as indicated:

Acute (immediate) Health Hazard: No
Chronic (delayed) Health Hazard: No
Sudden Release of Pressure Hazard: No
Reactive Hazard: No

16. Other information

This data is based on the current state of our information and experience. This safety data sheet describes our product in terms of safety requirements. Preceding data is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.

Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.

Download SDS (PDF)

Transition "Mystery" Color PCTG Prime

SKU: CX15-0000-18-1KG

4 reviews

Diameter: 1.75mm

Weight: 1kg

Variant

Price:

$25.00

Stock:

Stock: 57
