HEX #63666aTD 0.6

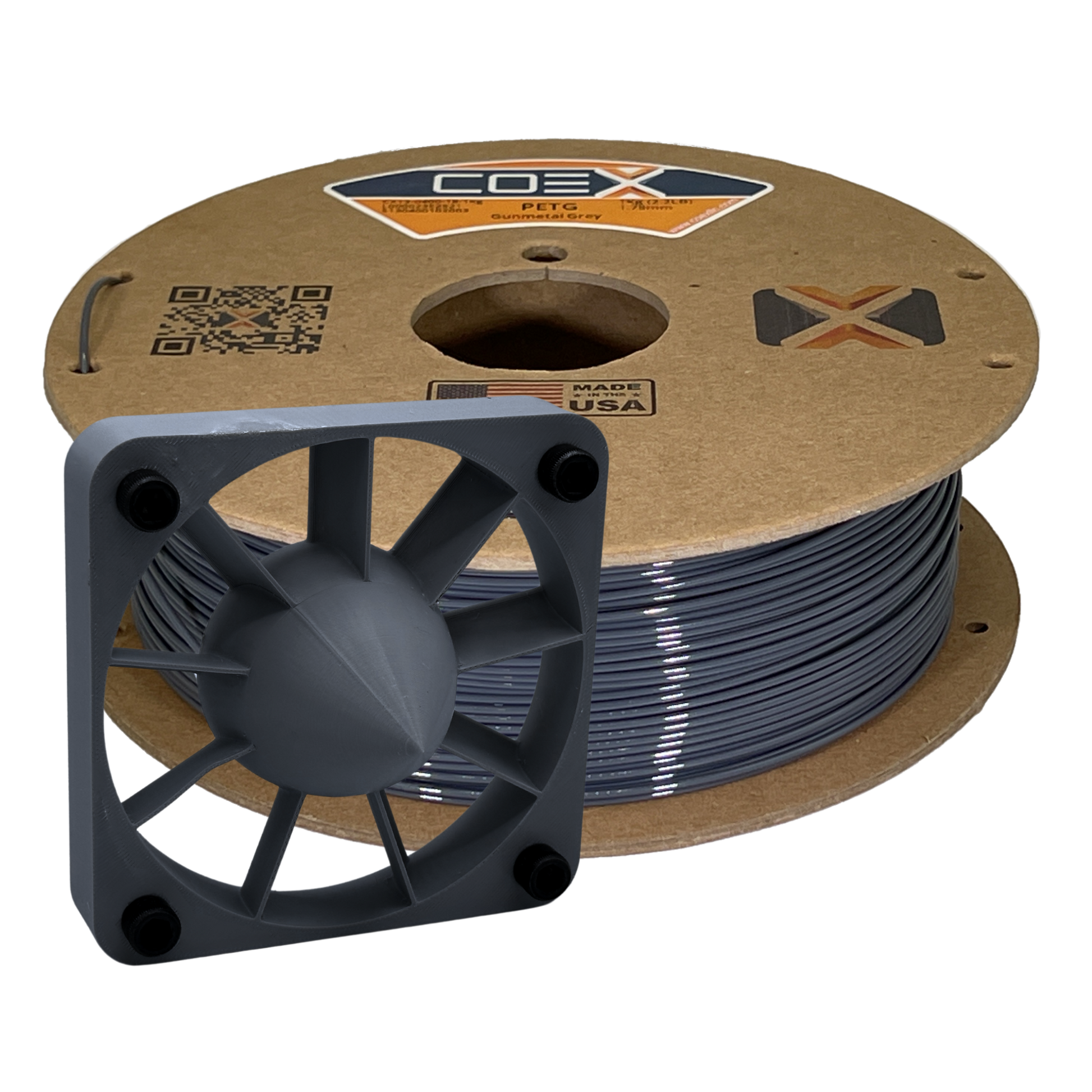

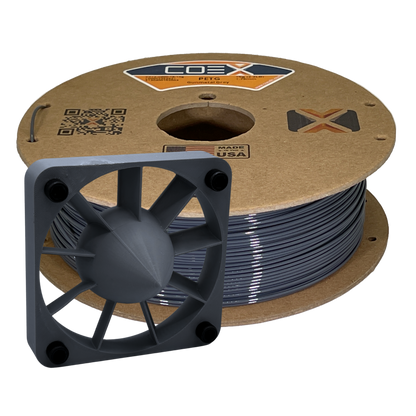

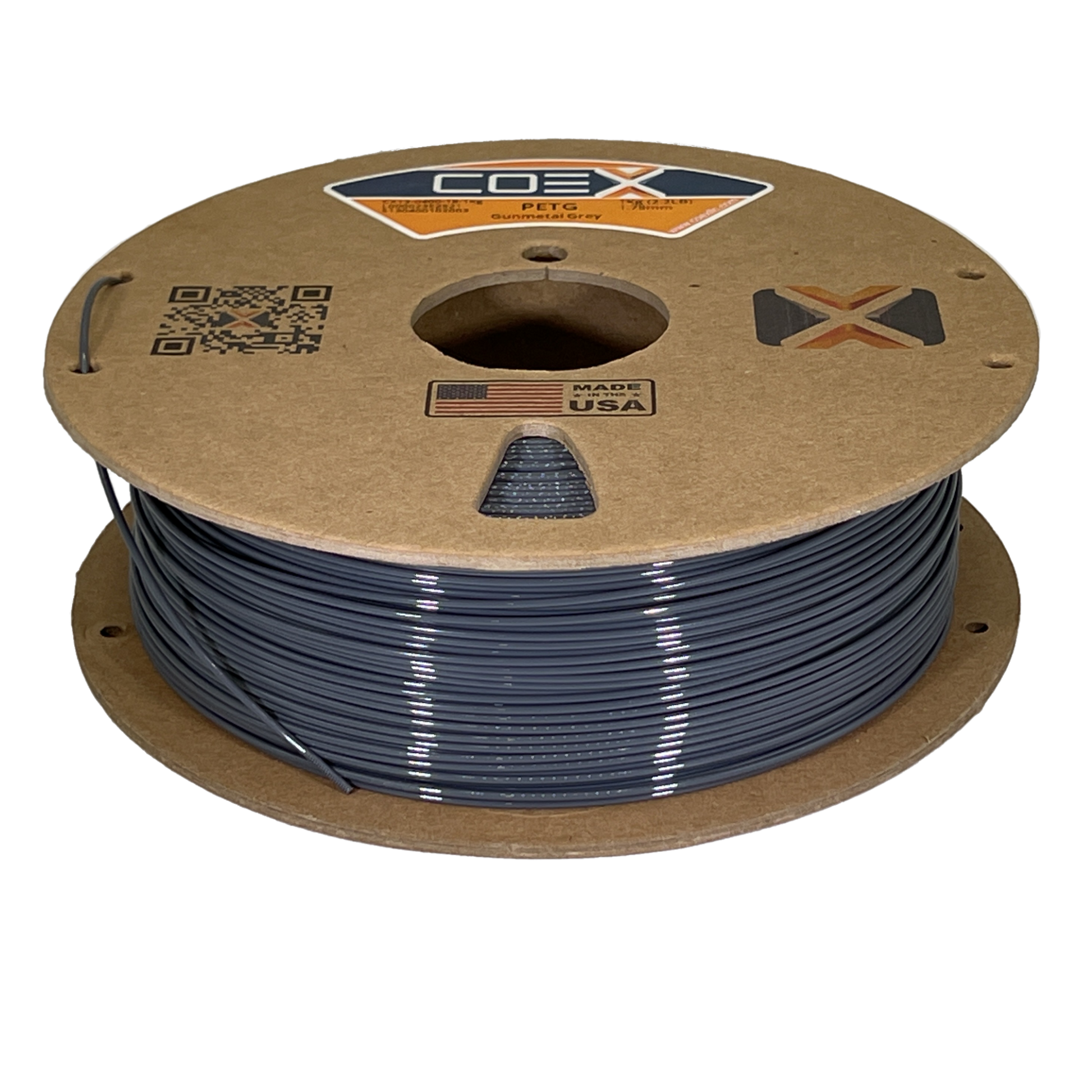

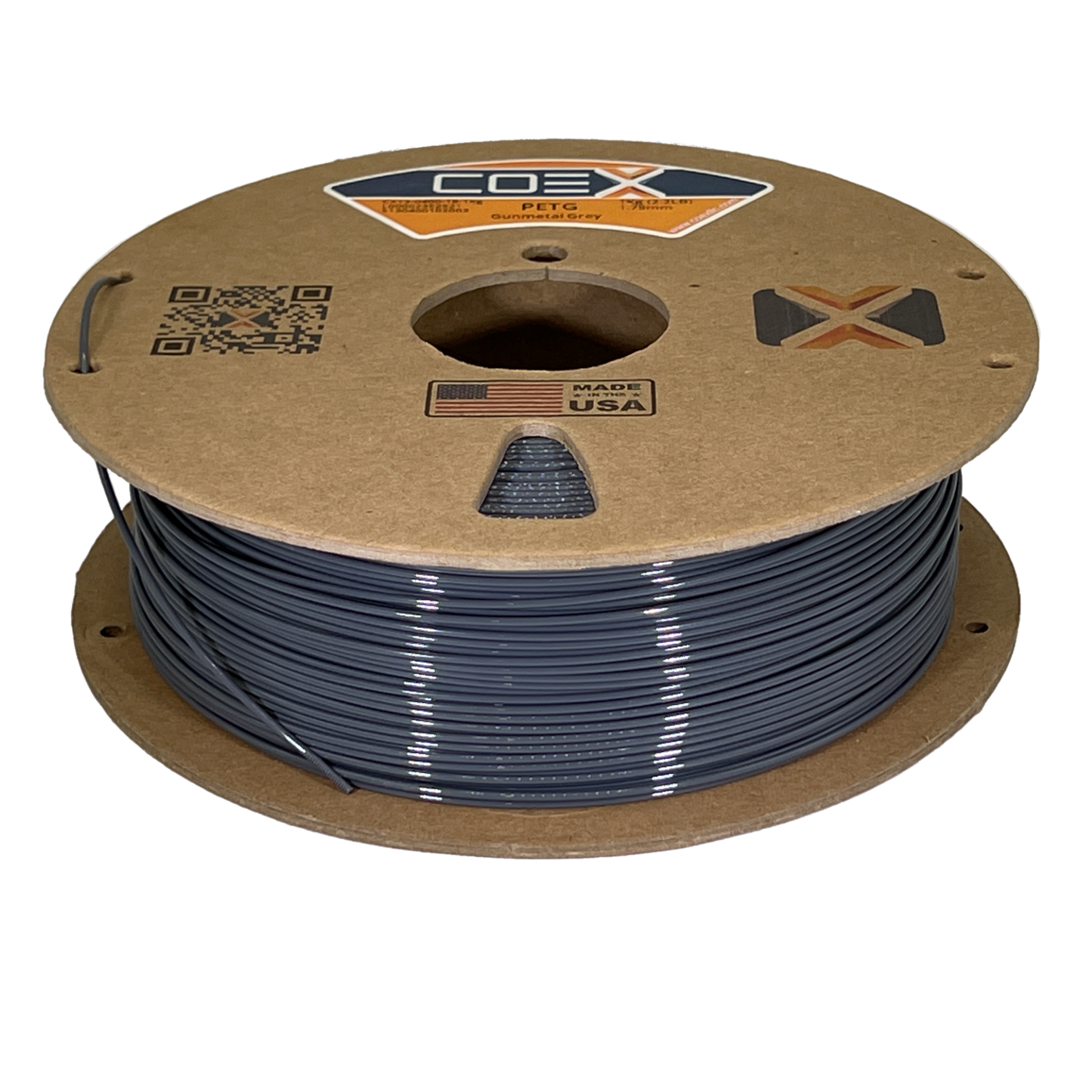

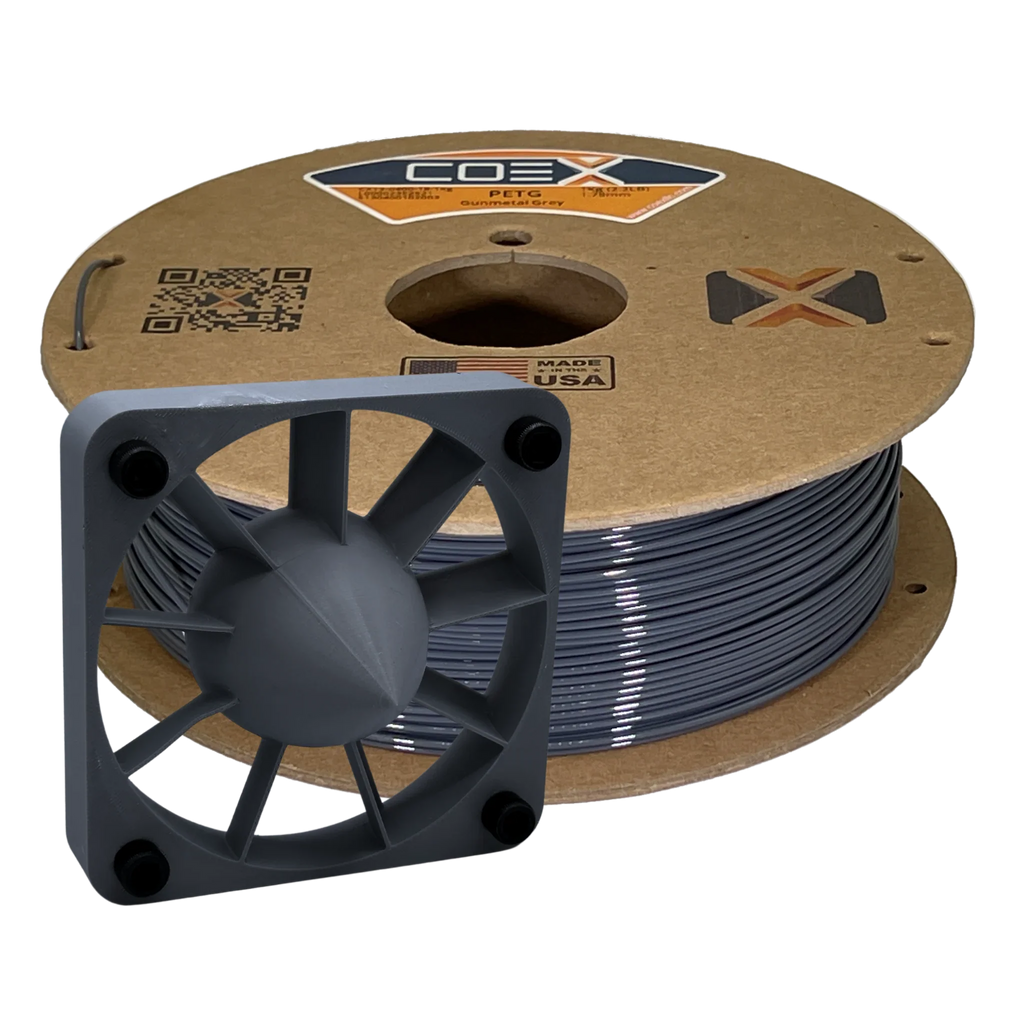

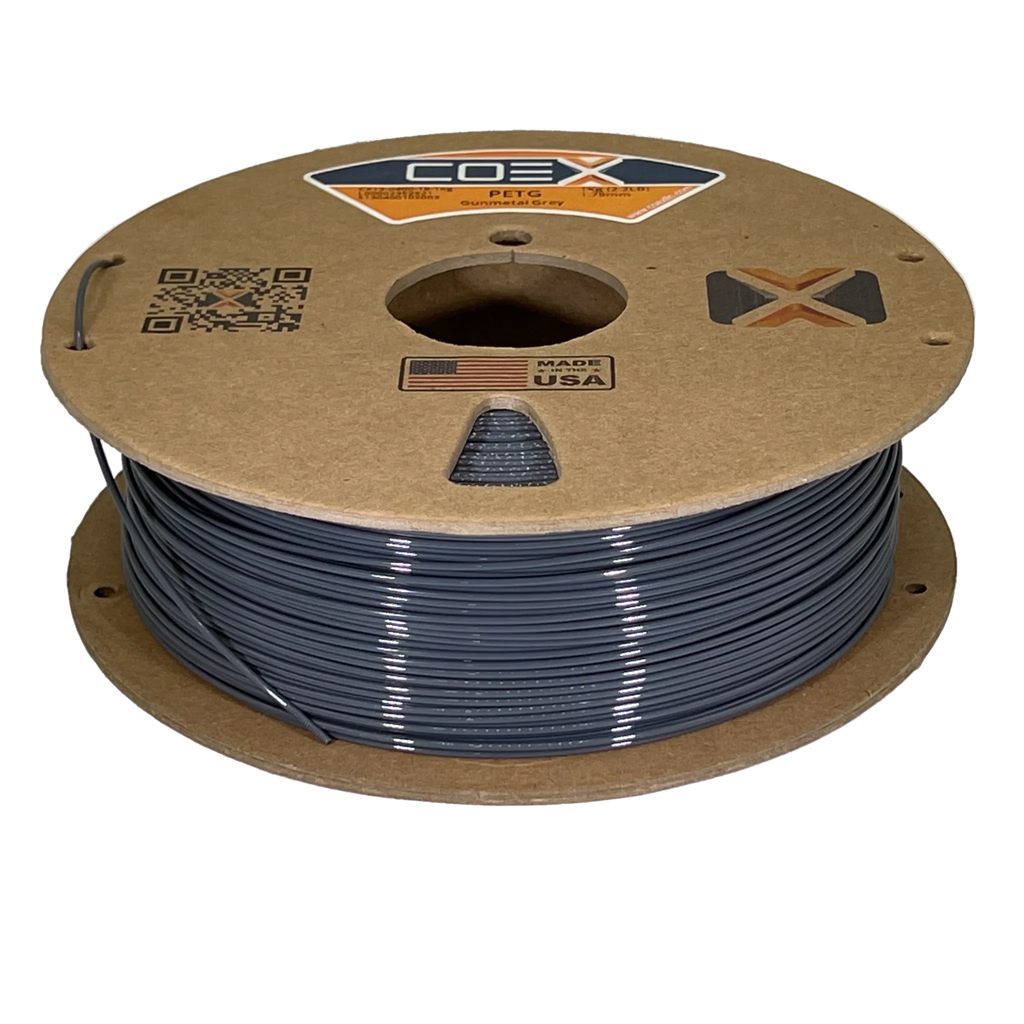

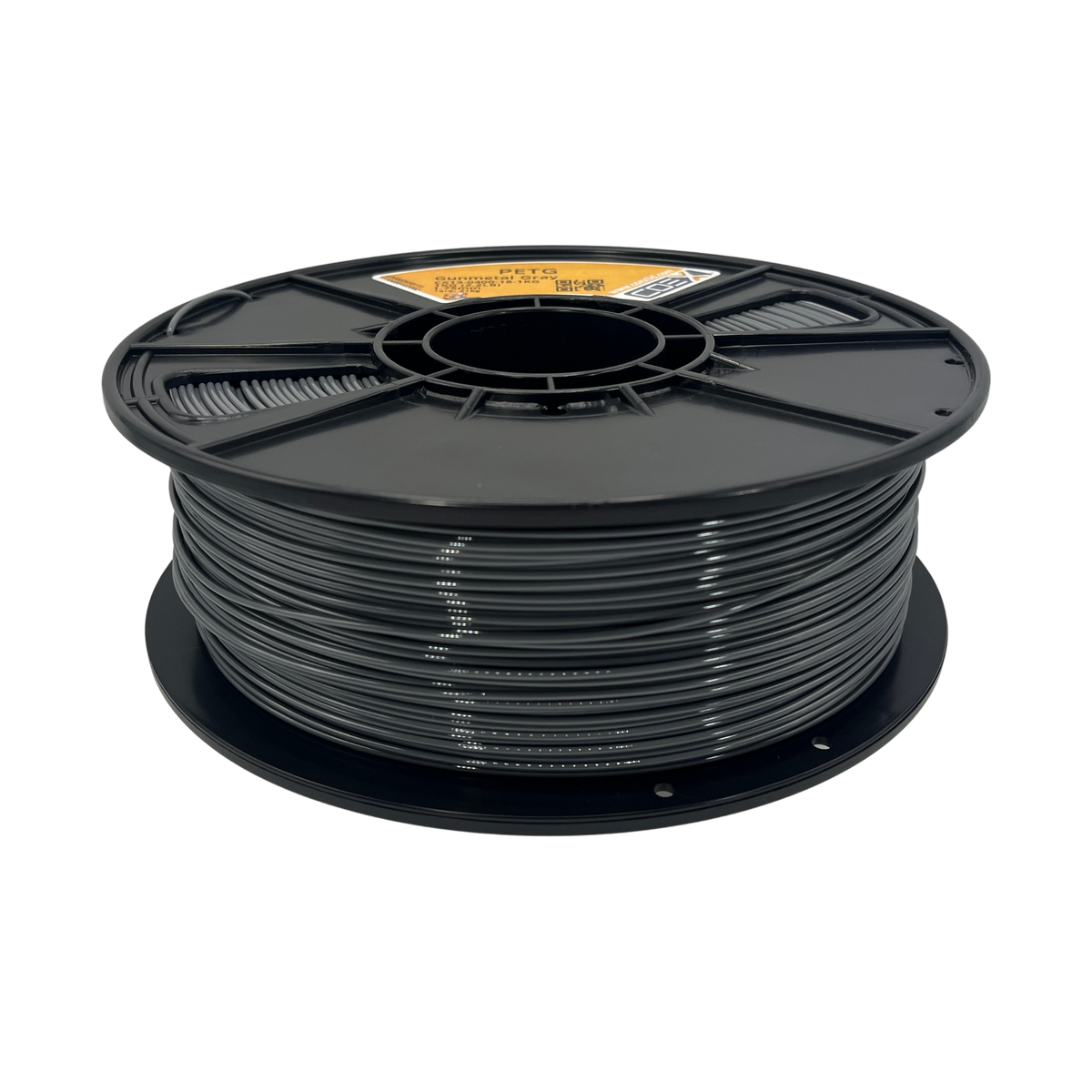

Gunmetal Gray PETG is a copolyester (polyethylene terephthalate glycol) with qualities comparable to ABS. It's made from virgin resin with colorant only and no fillers.
Key properties
- Durable, impact-resistant and temperature-resistant
- No enclosure or fume handling required
- Can't be vapor-smoothed with acetone (unlike ABS)
Specs
- Base resin: virgin PETG
- Tolerance: ±0.03 mm (1.75 mm) · ±0.06 mm (2.85 mm)
- Other spool sizes available by request: contact us.
- Extruded, quality controlled and shipped from one plant in Green Bay, WI.
COEX 3D Filament Slicer Profiles
Download TDS (PDF)
Download SDS (PDF)
CX13 PETG Technical Data Sheet
PETG 3D Printer Filament
PETG copolyester · Product code CX13 · 1.75 mm and 2.85 mm
Base resin: PETG copolyester
Typical values for the base resin. Printed parts vary with print settings, orientation and moisture content. Values are for the PETG base resin. Matte PETG contains 10% matte additive, so its values can differ.
Physical properties
| Property | Standard | Unit | Typical value |
|---|---|---|---|
| Density / specific gravity | ASTM D792 | 1.27 | |
| Molding shrinkage, flow | ASTM D955 | in/in | 2.0E-3 to 5.0E-3 |
| UL 94 flammability classification @ 1.0 mm | UL-94 | HB | |
| UL 94 flammability classification @ 1.5 mm | UL-94 | HB | |
| UL 94 flammability classification @ 3.0 mm | UL-94 | V-2 |
Mechanical properties
| Property | Standard | Unit | Typical value |
|---|---|---|---|
| Tensile strength at yield | ASTM D638 | MPa (psi) | 44.6 (6,470) |
| Tensile strength at yield | ISO 527-2 | MPa (psi) | 49.0 (7,110) |
| Tensile strength at break | ASTM D638 | MPa (psi) | 29.4 (4,270) |
| Tensile strength at break | ISO 527-2 | MPa (psi) | 30.0 (4,350) |
| Tensile elongation at yield | ASTM D638 | % | 4.5 |
| Tensile elongation at yield | ISO 527-2 | % | 4.1 |
| Tensile elongation at break | ASTM D638 | % | 250 |
| Tensile elongation at break | ISO 527-2 | % | 240 |
| Flexural modulus | ASTM D790 | MPa (psi) | 2,160 (313,000) |
| Flexural modulus | ISO 178 | MPa (psi) | 1,800 (261,000) |
| Flexural strength | ASTM D790 | MPa (psi) | 73.8 (10,700) |
| Flexural strength | ISO 178 | MPa (psi) | 64.0 (9,280) |
| Notched Izod impact, 73 °F | ASTM D256 | J/m (ft·lb/in) | 107 (2.0) |
| Notched Izod impact, 73 °F | ISO 180 | kJ/m² (ft·lb/in²) | 7.36 (3.5) |
| Rockwell hardness (R-scale) | ASTM D785 | 108 |
Thermal properties
| Property | Standard | Unit | Typical value |
|---|---|---|---|
| Deflection temperature under load, 66 psi, unannealed | ASTM D648 | °C (°F) | 70.0 (158) |
| Deflection temperature under load, 66 psi, unannealed | ISO 75-2/B | °C (°F) | 72.2 (162) |
| Deflection temperature under load, 264 psi, unannealed | ASTM D648 / ISO 75-2/A | °C (°F) | 62.2 (144) |
Optical properties
| Property | Standard | Unit | Typical value |
|---|---|---|---|
| Light transmittance | ASTM D1003 | % | 90.0 |
| Haze | ASTM D1003 | % | < 1.00 |
Filament specifications
| Diameter | Nominal | Minimum | Maximum | Tolerance |
|---|---|---|---|---|
| 1.75 mm | 1.75 mm (0.0689 in) | 1.72 mm (0.0677 in) | 1.78 mm (0.0701 in) | ±0.03 mm (±0.0012 in) |
| 2.85 mm | 2.85 mm (0.1122 in) | 2.79 mm (0.1098 in) | 2.91 mm (0.1146 in) | ±0.06 mm (±0.0024 in) |
Recommended print settings
| Nozzle temperature | 240–265 °C |
| Bed temperature | 70–90 °C |
| Part cooling fan | 40–70%, off for the first layer |
| Enclosure | Recommended |
| Drying | 65 °C for 4–6 hours |
www.coex3d.com · COEX LLC, 1228 Elizabeth St, Green Bay, WI 54302, USA · (920) 757-1055
Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specification limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.
CX13 PETG Safety Data Sheet
PETG 3D Printer Filament
PETG copolyester · Product code CX13
1. Identification
| Product identifier | PETG 3D Printer Filament |
| Product code | CX13 |
| Recommended use | 3D printing (FFF/FDM) filament, thermoplastic |
| Restrictions on use | Not specified |
| Supplier | COEX LLC, 1228 Elizabeth St, Green Bay, WI 54302, USA |
| Telephone | (920) 757-1055 |
| Emergency telephone | (920) 757-1055 (business hours) |
| Website | www.coex3d.com |
2. Hazard identification
| Classification | Not classified according to OSHA 29 CFR 1910.1200 |
| Label elements | Pictogram and symbol: Not applicable. Signal word: Not applicable. Hazard statements: Not applicable. Precautionary statements: Precaution: Not applicable. Treatment: Not applicable. Storage: Not applicable. Disposal: Not applicable. |
| Hazards not otherwise classified | No data available |
| Other information | Other hazard information not included in hazard classification (NFPA): Health: Not available. Flammability: Not available. Reactivity: Not available. Matte PETG (matte additive): under hot melt processing conditions wear personal protective equipment to prevent thermal burns; product dust can form an explosive mixture with air. |
3. Composition / information on ingredients
| Chemical name | CAS No. | Weight % |
|---|---|---|
| Copolyester (PETG) | proprietary (no CAS number given) | 100 (Matte PETG: 90) |
| Matte additive masterbatch: PETG copolyester carrier and proprietary additives (Matte PETG only) | 25640-14-6 (PETG copolyester carrier); additives: proprietary, no CAS given | 10 |
Matte PETG is 90 % PETG copolyester and 10 % matte additive masterbatch. The matte additive masterbatch contains PETG copolyester (CAS 25640-14-6, 30-95 % of the masterbatch) and proprietary additives (5-70 % of the masterbatch). The suppliers state that neither the PETG copolyester nor the masterbatch contains substances considered hazardous to health. Colorants are not covered by this composition.
4. First-aid measures
| Inhalation | Specific medical treatment is urgent. Move victim to fresh air. Administer oxygen if breathing is difficult. Matte PETG (matte additive): if difficulties occur after dust has been inhaled, remove to fresh air and consult a physician. |
| Eye contact | In case of contact with substance, immediately flush eyes with running water at least 20 minutes. Matte PETG (matte additive): consult a physician. |
| Skin contact | In case of contact with substance, immediately flush skin with running water at least 20 minutes. Remove and isolate contaminated clothing and shoes. Wash contaminated clothing and shoes before reuse. Get immediate medical advice/attention. Matte PETG (matte additive): wash skin with soap and water when in contact with molten residues; burns caused by molten material require hospital treatment. |
| Ingestion | Do not let him/her eat anything, if unconscious. Get immediate medical advice/attention. Matte PETG (matte additive): drink plenty of water; do not induce vomiting without medical advice; call a physician immediately. |
| Most important symptoms | Not available. |
| Note to physicians | Ensure that medical personnel are aware of the material(s) involved and take precautions to protect themselves. |
5. Fire-fighting measures
| Suitable extinguishing media | Suitable extinguishing media: Dry sand, dry chemical, alcohol-resistant foam, water spray, regular foam, CO2. Unsuitable extinguishing media: High pressure water streams. |
| Special hazards | May be ignited by heat, sparks or flames. Containers may explode when heated. Some of these materials may burn, but none ignite readily. If inhaled, may be harmful. Fire will produce irritating and/or toxic gases. Matte PETG (matte additive): product dust can form an explosive mixture with air. |
| Protective equipment | Dike fire-control water for later disposal; do not scatter the material. Move containers from fire area if you can do it without risk. Fire involving Tanks; Cool containers with flooding quantities of water until well after fire is out. Fire involving Tanks; Withdraw immediately in case of rising sound from venting safety devices or discoloration of tank. Fire involving Tanks; Always stay away from tanks engulfed in fire. Matte PETG (matte additive): firefighters should be equipped with self-contained breathing apparatus and turn-out gear. |
| Further information | Dispose of fire debris and contaminated extinguishing water in accordance with official regulations. |
6. Accidental release measures
| Personal precautions | Spilled filament or pieces may cause a slipping hazard. Ensure adequate ventilation. |
| Environmental precautions | Do not flush into surface water or sanitary sewer system. Keep out of waterways. |
| Cleaning up | Pick up or sweep up and place in a suitable container for disposal. |
7. Handling and storage
| Safe handling | Please note that materials and conditions to avoid. Wash thoroughly after handling. Please work with reference to engineering controls and personal protective equipment. Be careful to high temperature. Matte PETG (matte additive): avoid inhalation of dusts/mists/vapors; take precautionary measures against static discharges. |
| Fire and explosion | Dust from grinding or sanding can form an explosive mixture with air. Take precautionary measures against static discharges. |
| Storage | Store in a closed container. Store in cool and dry place. Matte PETG (matte additive): keep container tightly closed and dry; avoid dust formation; protect against moisture. |
| Incompatibilities | Combustibles |
8. Exposure controls / personal protection
| Exposure limits | ACGIH regulation: Not available. Biological exposure index: Not available. OSHA regulation: Not available. NIOSH regulation: Not available. EU regulation: Not available. Other: Not available. |
| Engineering controls | Provide exhaust ventilation if dust or fumes are generated during processing. |
| Personal protection | Engineering controls: Provide local exhaust ventilation system or other engineering controls to keep any airborne contamination below the respective threshold limit value. Respiratory protection: Wear NIOSH or European Standard EN 149 approved full or half face piece (with goggles) respiratory protective equipment when necessary. Eye protection: Wear facepiece with goggles to protect. An eye wash unit and safety shower station should be available nearby work place. Hand protection: Wear chemical resistant gloves. Body protection: Wear appropriate protective chemical resistant clothing. |
| Hygiene | Do not eat or drink while working. Handle in accordance with good industrial hygiene and safety practice. |
9. Physical and chemical properties
| Appearance | Solid (pellets); color: Colorless or varies with product |
| Odor | Slight odor |
| Odor threshold | Not applicable |
| pH | Not applicable |
| Melting temperature | Not applicable |
| Freezing point | No data available |
| Boiling point | Decomposes; not determined |
| Flash point | Not available |
| Evaporation rate | Not applicable (solid) |
| Flammability | Not available. Matte PETG (matte additive): may form combustible dust concentrations in air during processing. |
| Explosive limits | No data available |
| Vapor pressure / vapor density | No data available |
| Density | Specific gravity: > 1. Typical density 1.27 g/cm³ (ASTM D792) |
| Solubility in water | Negligible |
| Partition coefficient | No data available |
| Auto-ignition temperature | Not available |
| Decomposition temperature | Not available. Matte PETG (matte additive): thermal decomposition above 270 °C. |
| Viscosity | Not applicable (solid) |
| Oxidizing properties | No data available |
10. Stability and reactivity
| Reactivity | No data available |
| Chemical stability | No data available |
| Hazardous reactions | Fire may produce irritating and/or toxic gases. Inhalation of material may be harmful. |
| Conditions to avoid | Ignition sources (heat, sparks or flames). Matte PETG (matte additive): temperatures above 270 °C. |
| Incompatible materials | Combustibles |
| Hazardous decomposition products | Irritating and/or toxic gases. Matte PETG (matte additive): carbon monoxide, carbon dioxide. |
11. Toxicological information
| Routes of exposure | Inhalation, ingestion, eye or skin contact. |
| Acute toxicity | Information on the likely routes of exposure: Not available. Acute toxicity: Oral: Not available. Dermal: Not available. Inhalation: Not available. Matte PETG (matte additive): contact with molten product may cause thermal burns. |
| Inhalation | Not inhalable in the form supplied. |
| Irritation | Skin corrosion/irritation: Not classified. Serious eye damage/irritation: Not classified. Matte PETG (matte additive): irritation is possible when the product comes in contact with the skin, respiratory tract or the eyes; thermal decomposition products can irritate the eyes, skin and respiratory tract; may cause mechanical eye irritation. |
| Sensitization, repeated dose, mutagenicity, carcinogenicity, reproductive toxicity | Respiratory sensitization: Not available. Skin sensitization: Not available. Carcinogenicity: Not available. Mutagenicity: Not classified. Reproductive toxicity: Not available. Specific target organ toxicity (single exposure): Not classified. Specific target organ toxicity (repeat exposure): Not classified. Aspiration hazard: Not available. |
| Aspiration hazard | None expected. |
12. Ecological information
| Aquatic toxicity | Acute toxicity: Not available. Chronic toxicity: Not available. Mobility in soil: Not available. Other hazardous effect: Not available. Hazardous to the ozone layer: Not classified. |
| Persistence and degradability | Persistence: Not available. Degradability: Not available. |
| Bioaccumulation | Bioaccumulation: Not available. Biodegradation: Not biodegradable. |
13. Disposal considerations
| Product | Dispose of in accordance with local, state and federal regulations. Check for recycling options. Do not release into the environment. |
| Packaging | Empty spools and packaging can be recycled if not contaminated. |
14. Transport information
| US DOT, IMDG, IATA/ICAO | UN Number: Not applicable. UN Proper shipping name: Not applicable. Transport Hazard class: Not applicable. Packing group: Not applicable. Environmental hazards: Not applicable. |
15. Regulatory information
| U.S. TSCA | Matte PETG (matte additive): Complies. PETG base resin: status not stated by the resin maker. |
| SARA 313 | U.S.A management information (EPCRA 313 Regulation): Not regulated. |
16. Other information
| NFPA hazard codes | Health: Not available. Flammability: Not available. Reactivity: Not available. Matte PETG (matte additive): Health 1, Flammability 1, Reactivity 0. |
| HMIS III rating | Not available. Matte PETG (matte additive): Health 1, Flammability 1, Physical hazard 0. |
| Issue date / revision | 10-27-2026 · Revision 2.0, supersedes Revision 1.0 (02-04-21). Rewritten in the 16-section OSHA format. |
| Prepared by | COEX LLC |
This data is based on the current state of our information and experience.
www.coex3d.com
Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.
