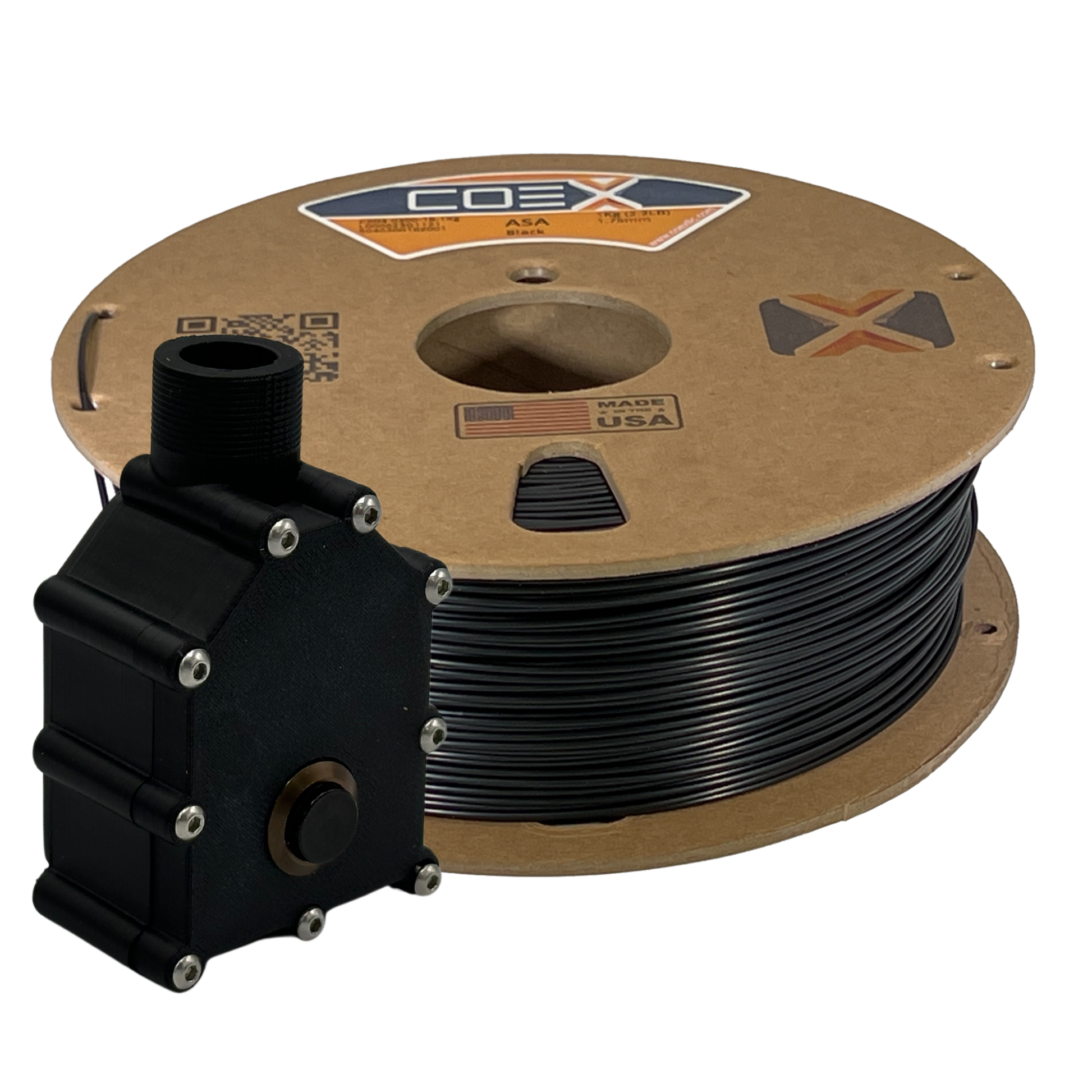

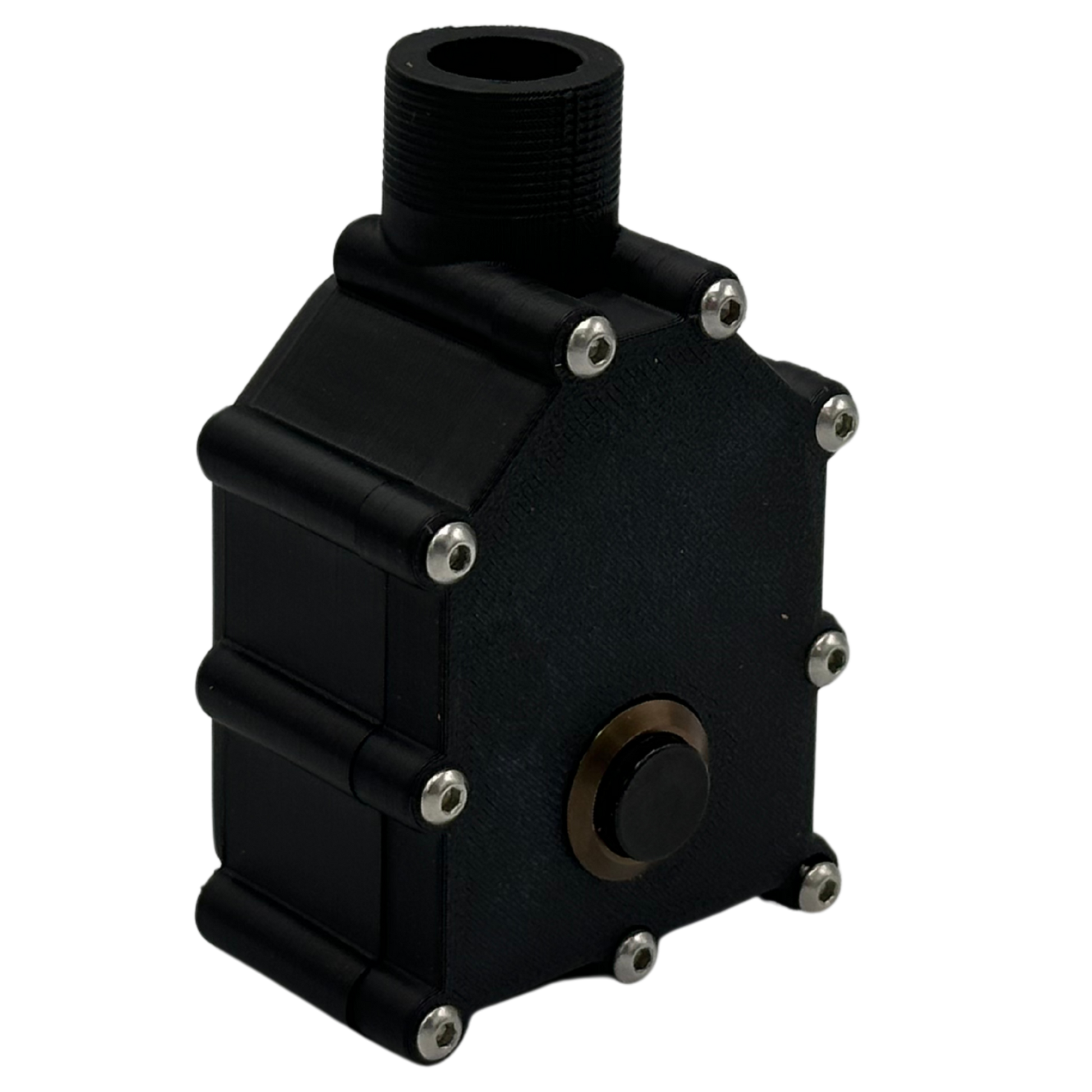

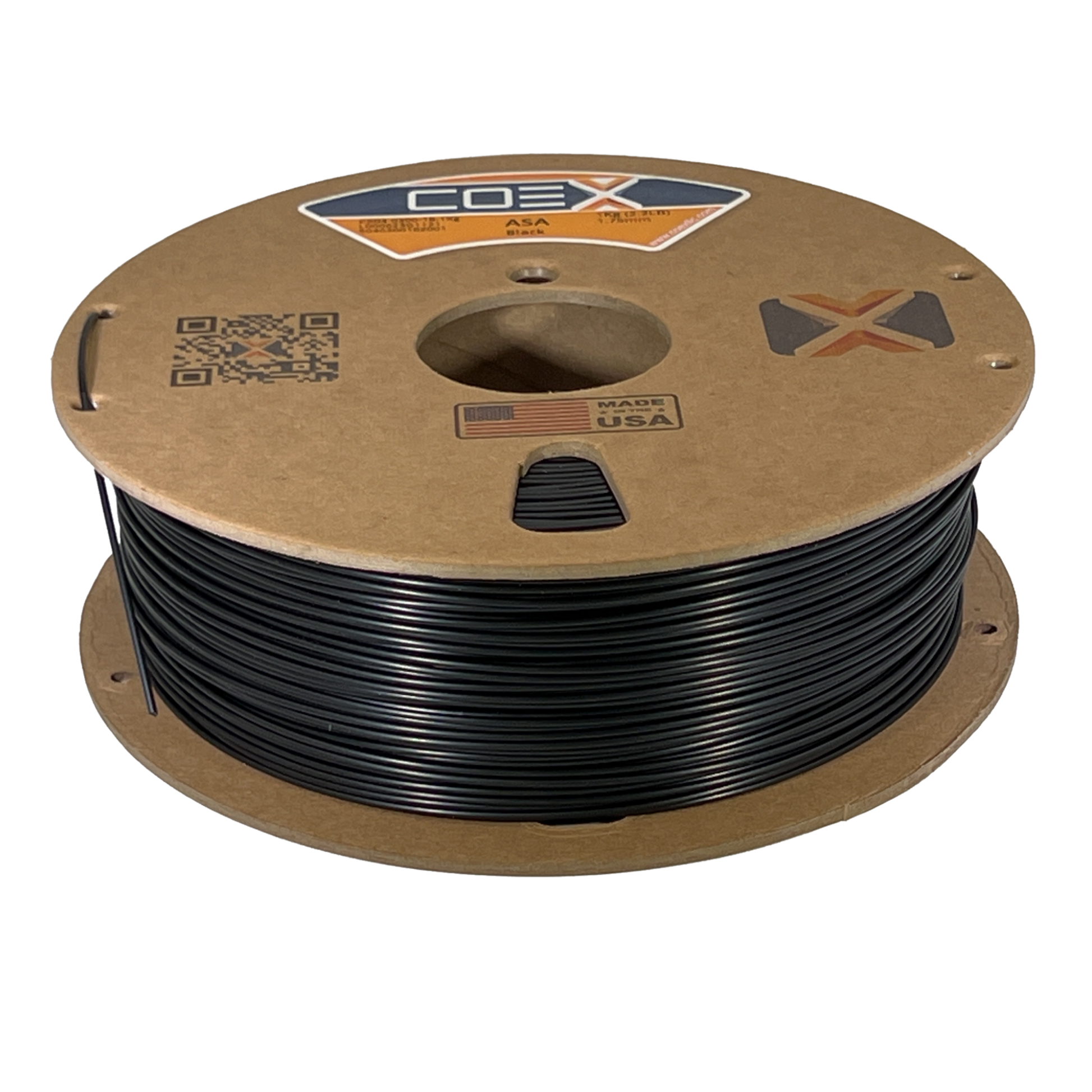

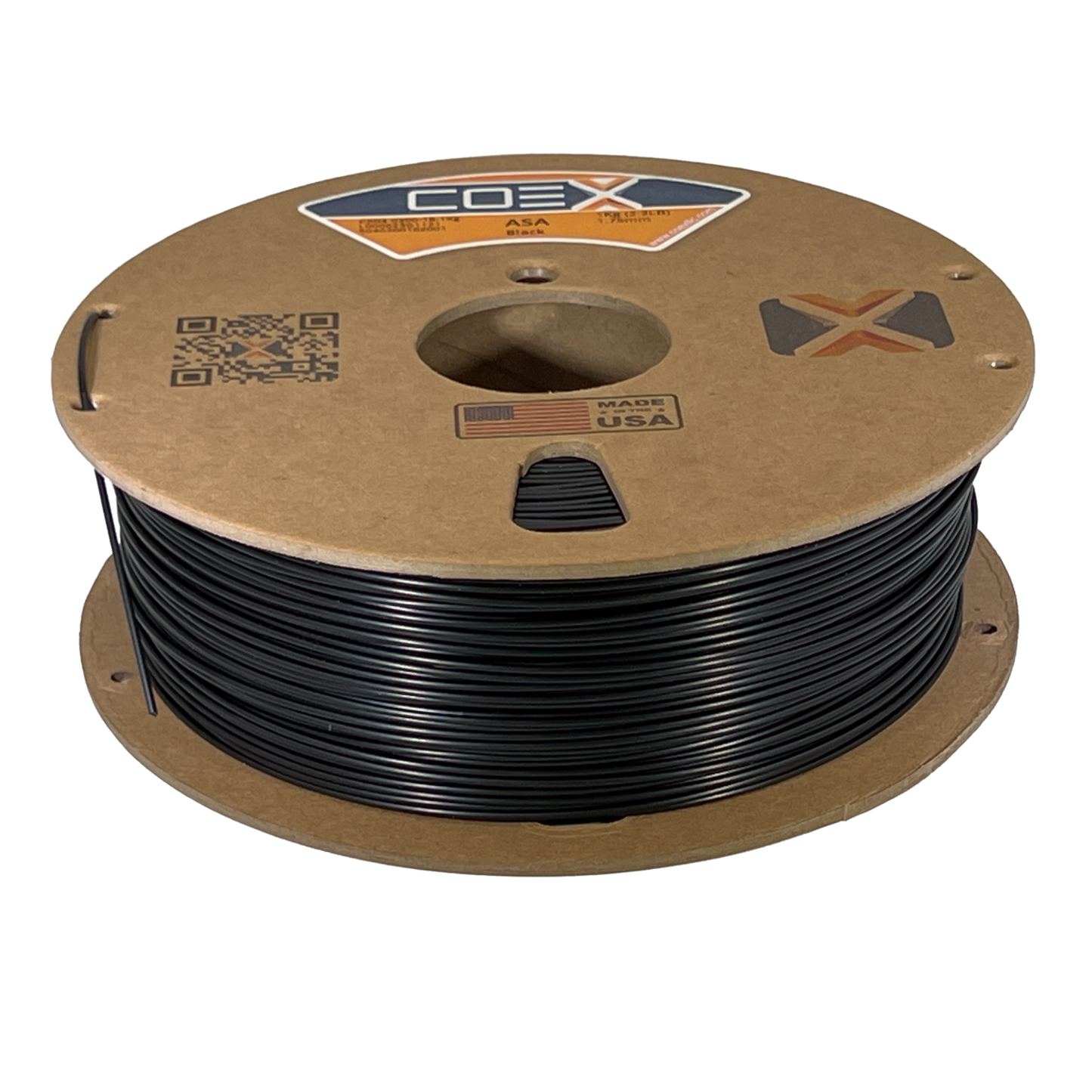

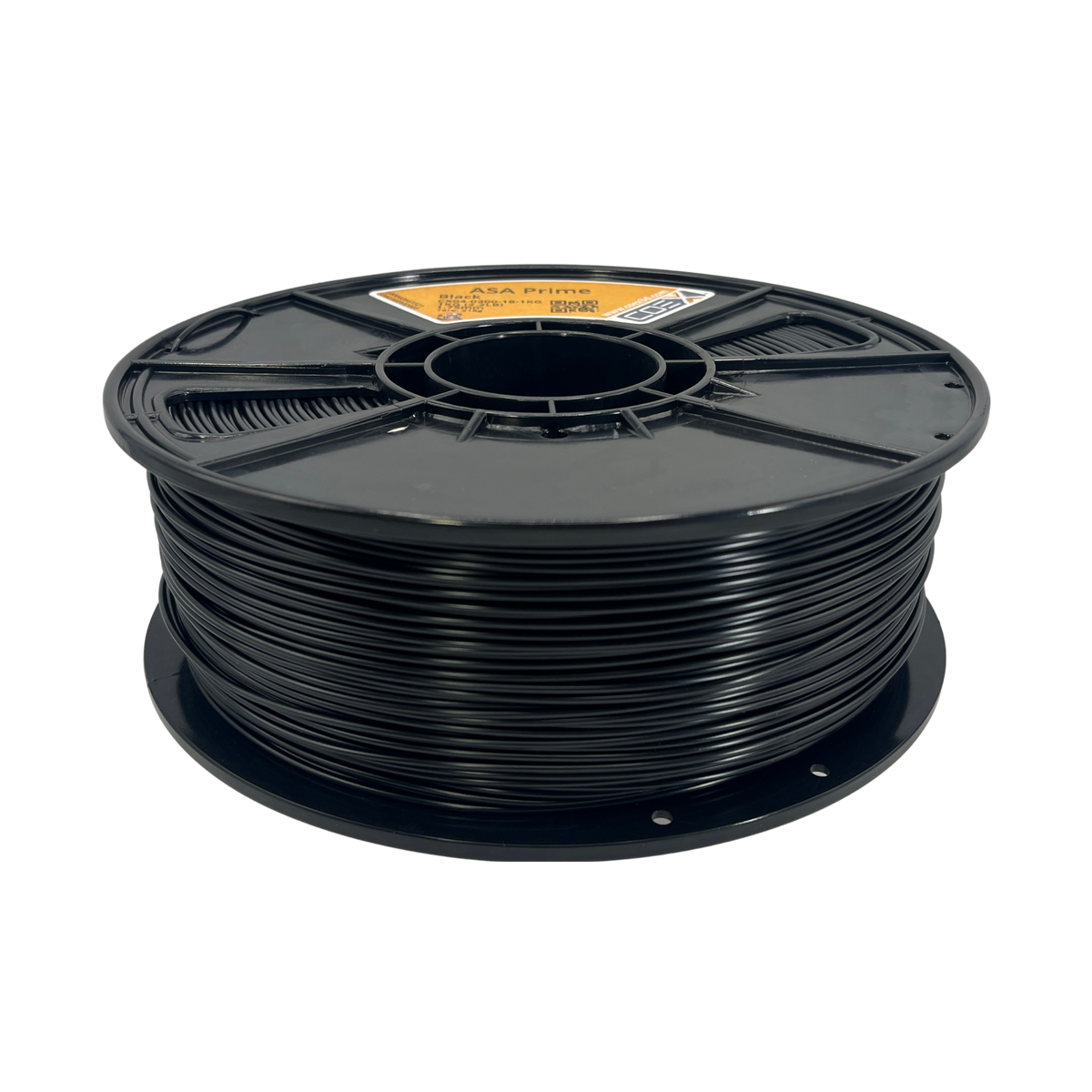

Black ASA Prime is for outdoor parts that have to stay black, like automotive trim. ASA Prime is the outdoor-rated alternative to ABS. It prints much like ABS, but it's UV-stabilized, so parts keep their color and strength in direct sun. Black is one of our two best-selling ASA colors, alongside Aqua Blue. It's made from LG Chem L1912 ASA resin, colorant only, no fillers.
Built for outdoors
- UV-stabilized: resists fading, cracking and deforming in sunlight
- Outdoor signage · automotive parts · garden fixtures · drone and RC parts · marine hardware
Printing notes
- Low warping, and strong layer adhesion for solid, watertight parts
- ASA absorbs moisture. Store it sealed and dry it if print quality drops.
- Ventilation helps with the smell but isn't required.
Specs
- Base resin: LG Chem L1912 ASA
- Tolerance: ±0.03 mm (1.75 mm) · ±0.06 mm (2.85 mm)
- Other spool sizes available by request: contact us.
- Vacuum-sealed with desiccant
- Backed by our defect guarantee: we replace or refund defective filament.
- Extruded, quality controlled and shipped from one plant in Green Bay, WI.
- Slicer profile: the COEX ASA PRIME profile for 1.75mm filament is built into OrcaSlicer 2.3.2 and later. In Filament Selection, choose vendor COEX 3D, then COEX ASA PRIME.
COEX 3D Filament Slicer Profiles
Download TDS (PDF)
Download SDS (PDF)
Download Yellow Card (PDF)
CX04 ASA Prime Technical Data Sheet
ASA Prime 3D Printer Filament
Acrylonitrile styrene acrylate (ASA) · Product code CX04 · 1.75 mm and 2.85 mm
Base resin: Acrylonitrile styrene acrylate (ASA)
Typical values for the base resin. Printed parts vary with print settings, orientation and moisture content. Values for LG ASA LI912 base grade (COEX ASA Prime uses LI912W).
Physical properties
| Property | Standard | Unit | Typical value |
|---|---|---|---|
| Specific gravity, 23 °C | ASTM D792 | 1.07 | |
| Mold shrinkage, 23 °C, 3.2 mm | ASTM D955 | % | 0.4 ~ 0.7 |
| Melt flow rate, 220 °C, 10 kg | ASTM D1238 | g/10 min | 12 |
| Rockwell hardness, R scale | ASTM D785 | 103 | |
| UL 94 flammability, 1.5 mm | UL 94 | HB | |
| UL 94 flammability, 3.0 mm | UL 94 | HB |
Mechanical properties
| Property | Standard | Unit | Typical value |
|---|---|---|---|
| Tensile strength at yield, 23 °C, 50 mm/min, 3.2 mm | ASTM D638 | MPa (psi) | 49 (7,110) |
| Tensile elongation at break, 23 °C, 50 mm/min, 3.2 mm | ASTM D638 | %, (Min) | 25 |
| Tensile modulus, 23 °C, 50 mm/min, 3.2 mm | ASTM D638 | MPa (psi) | 2,160 (313,000) |
| Flexural strength, 23 °C, 15 mm/min, 3.2 mm | ASTM D790 | MPa (psi) | 79 (11,500) |
| Flexural modulus, 23 °C, 15 mm/min, 3.2 mm | ASTM D790 | MPa (psi) | 2,300 (334,000) |
| Izod impact strength, notched, 3.2 mm, 23 °C | ASTM D256 | J/m (ft·lb/in) | 175 (3.28) |
| Izod impact strength, notched, 3.2 mm, −30 °C | ASTM D256 | J/m (ft·lb/in) | 40 (0.749) |
| Izod impact strength, notched, 6.4 mm, 23 °C | ASTM D256 | J/m (ft·lb/in) | 155 (2.90) |
| Izod impact strength, notched, 6.4 mm, −30 °C | ASTM D256 | J/m (ft·lb/in) | 40 (0.749) |
Thermal properties
| Property | Standard | Unit | Typical value |
|---|---|---|---|
| Heat deflection temperature, edgewise, 1.82 MPa, 6.4 mm, unannealed | ASTM D648 | °C (°F) | 86 (187) |
| Vicat softening temperature, 50 N, 50 °C/h | ASTM D1525 | °C (°F) | 95 (203) |
| Relative thermal index, electrical | UL 746B | °C (°F) | 50 (122) |
| Relative thermal index, mechanical with impact | UL 746B | °C (°F) | 50 (122) |
| Relative thermal index, mechanical without impact | UL 746B | °C (°F) | 50 (122) |
Filament specifications
| Diameter | Nominal | Minimum | Maximum | Tolerance |
|---|---|---|---|---|
| 1.75 mm | 1.75 mm (0.0689 in) | 1.72 mm (0.0677 in) | 1.78 mm (0.0701 in) | ±0.03 mm (±0.0012 in) |
| 2.85 mm | 2.85 mm (0.1122 in) | 2.79 mm (0.1098 in) | 2.91 mm (0.1146 in) | ±0.06 mm (±0.0024 in) |
Recommended print settings
| Nozzle temperature | 240–265°C |
| Bed temperature | 90–110°C |
| Enclosure | An enclosure is required |
| Part cooling fan | little or no part cooling |
| Drying | Dry an opened spool at 80°C for 4–6 hours |
| Storage | Keep filament dry: store it sealed, and dry it again only after the spool has been exposed to air |
| Bed adhesion | use WELD3D or ABS/ASA slurry |
www.coex3d.com · COEX LLC, 1228 Elizabeth St, Green Bay, WI 54302, USA · (920) 757-1055
Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specification limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.
CX04 ASA Prime Safety Data Sheet
ASA Prime 3D Printer Filament
Acrylonitrile styrene acrylate (ASA) · Product code CX04
1. Identification
| Product identifier | ASA Prime 3D Printer Filament |
| Product code | CX04 |
| Recommended use | 3D printing (FFF/FDM) filament, thermoplastic |
| Restrictions on use | Not specified |
| Supplier | COEX LLC, 1228 Elizabeth St, Green Bay, WI 54302, USA |
| Telephone | (920) 757-1055 |
| Emergency telephone | (920) 757-1055 (business hours) |
| Website | www.coex3d.com |
2. Hazard identification
| Classification | Classification according to Regulation (EC) No 1272/2008 [CLP]: Not applicable |
| Label elements | Hazard Pictogram(s): Not applicable. Signal word: Not applicable. Hazard statement(s): Not applicable. Precautionary statement(s) (prevention, response, storage, disposal): Not applicable |
| Hazards not otherwise classified | Not available |
| Other information | Not available |
3. Composition / information on ingredients
| Chemical name | CAS No. | Weight % |
|---|---|---|
| 2-Propenoic acid butyl ester polymer with ethenylbenzene and 2-propenenitrile | 26299-47-8 | 90–99.9 |
| 3,5-Bis(1,1-dimethylethyl)-4-hydroxybenzene-propanoic acid octadecyl ester | 2082-79-3 | < 1 |
| Decanedioic acid bis(2,2,6,6-tetramethyl-4-piperidinyl) ester | 52829-07-9 | < 1 |
4. First-aid measures
| Inhalation | When exposed to large amounts of steam and mist, move to fresh air. Take specific treatment if needed. |
| Eye contact | Do not rub your eyes. Immediately flush eyes with plenty of water for at least 15 minutes and call a doctor/physician. |
| Skin contact | Flush skin with plenty of water for at least 15 minutes while removing contaminated clothing and shoes. Wash contaminated clothing thoroughly before re-using. |
| Ingestion | Please be advised by doctor whether induction of vomit is demanded or not. Rinse your mouth with water immediately. |
| Most important symptoms | Not available |
| Note to physicians | Notify medical personnel of contaminated situations and have them take appropriate protective measures. |
5. Fire-fighting measures
| Suitable extinguishing media | Suitable extinguishing media: Dry chemical, carbon dioxide, regular foam extinguishing agent, spray. Unsuitable extinguishing media: Avoid use of water jet for extinguishing |
| Special hazards | Hazardous combustion products: Not available |
| Protective equipment | Keep unauthorized personnel out. Notify your local firestation and inform the location of the fire and characteristics hazard. In case of conflagration, use automatic fire sprinkler. Major fire may require withdrawal, allowing the object itself to burn. Avoid inhalation of materials or combustion by-products. Do not approach the tank surrounded by fire until it is extinguished. Keep containers cool with water spray. Use fire fighting procedures suitable for surrounding area. |
| Further information | Dispose of fire debris and contaminated extinguishing water in accordance with official regulations. |
6. Accidental release measures
| Personal precautions | Spilled filament or pieces may cause a slipping hazard. Ensure adequate ventilation. |
| Environmental precautions | Do not flush into surface water or sanitary sewer system. Keep out of waterways. |
| Cleaning up | Pick up or sweep up and place in a suitable container for disposal. |
7. Handling and storage
| Safe handling | Wash thoroughly after handling. Avoid direct physical contact. Avoid contact with incompatible materials. |
| Fire and explosion | Dust from grinding or sanding can form an explosive mixture with air. Take precautionary measures against static discharges. |
| Storage | Save in cool, dry and well ventilated place. Check regularly for leaks. Please pay attention to incompatibilities materials and conditions to avoid. Keep sealed when not in use. No open fire. |
| Incompatibilities | Not available |
8. Exposure controls / personal protection
| Exposure limits | European Union (EU) Commission Directive 2006/15/EC (IOELVs): Not available. DNEL/PNEC values: Not available |
| Engineering controls | Provide exhaust ventilation if dust or fumes are generated during processing. |
| Personal protection | Hand protection: Wear appropriate glove. Eye protection: Wear primary eye protection such as splash resistant safety goggles with a secondary protection face shield. Provide an emergency eye wash station and quick drench shower in the immediate work area. Respiratory protection: Respiratory protection is ranked in order from minimum to maximum. Consider warning properties before use. Dust, mist, fume-purifying respiratory protection; Air-purifying respirator with high-efficiency particulate filtering; Any respiratory protection with a electromotion fan (for dust, mist, fume-purifying); Self-contained breathing apparatus with a corpuscle filter of high efficiency. Skin protection: Wear appropriate clothing. Others: It is necessary to wear protective clothes and other protection equipment. Cover your face, head and neck. Thermal hazards: Not available |
| Hygiene | Do not eat or drink while working. Handle in accordance with good industrial hygiene and safety practice. |
9. Physical and chemical properties
| Appearance | Appearance (State): Solid (Pellets). Appearance (Color): Not available |
| Odor | Not available |
| Odor threshold | Not applicable |
| pH | Not applicable |
| Melting temperature | Melting point/Freezing point: Not available |
| Freezing point | No data available |
| Boiling point | Decomposes; not determined |
| Flash point | Not available |
| Evaporation rate | Not applicable (solid) |
| Flammability | Not available |
| Explosive limits | No data available |
| Vapor pressure / vapor density | No data available |
| Density | Relative density: 1.07 |
| Solubility in water | Not available |
| Partition coefficient | No data available |
| Auto-ignition temperature | Not available |
| Decomposition temperature | Not available |
| Viscosity | Not applicable (solid) |
| Oxidizing properties | Oxidising properties: Not available |
10. Stability and reactivity
| Reactivity | Not available |
| Chemical stability | This material is stable under recommended storage and handling conditions. |
| Hazardous reactions | Hazardous Polymerization will not occur. |
| Conditions to avoid | Avoid contact with incompatible materials and condition. Avoid: Accumulation of electrostatic charges, Heating, Flames and hot surfaces |
| Incompatible materials | Not available |
| Hazardous decomposition products | May emit flammable vapour if involved in fire. |
11. Toxicological information
| Routes of exposure | Inhalation, ingestion, eye or skin contact. |
| Acute toxicity | Acute toxicity, oral: Product (ATEmix): Not available; [3,5-Bis(1,1-dimethylethyl)-4-hydroxybenzene-propanoic acid octadecyl ester]: LD50 > 2000 mg/kg Rat (OECD TG423, NIER(2001-2004)). Dermal: Product (ATEmix): Not available; [same component]: LD50 > 2000 mg/kg Rat (OECD SIDS, EU IUCLID). Inhalation: Product (ATEmix): Not available; [same component]: dust LC50 > 1.8 mg/l Rat (OECD SIDS, EU IUCLID). |
| Inhalation | Not inhalable in the form supplied. |
| Irritation | Skin corrosion/irritation: Not available. Serious eye damage/irritation: Not available |
| Sensitization, repeated dose, mutagenicity, carcinogenicity, reproductive toxicity | Respiratory sensitization: Not available. Skin sensitization: Not available. Germ cell mutagenicity: Not available. Carcinogenicity (IARC, OSHA, ACGIH, NTP, EU CLP): Not available. Reproductive toxicity: Not available. Specific target organ toxicity (single exposure): Not available. Specific target organ toxicity (repeated exposure): Not available. Aspiration hazard: Not available |
| Aspiration hazard | None expected. |
12. Ecological information
| Aquatic toxicity | Fish: [3,5-Bis(1,1-dimethylethyl)-4-hydroxybenzene-propanoic acid octadecyl ester]: LC50 19.2 mg/l 96 hr Oryzias latipes (MOE existing chemicals safety test(2001-2004)). Invertebrate: [same component]: EC50 13.9 mg/l Daphnia magna (ECOTOX, MOE existing chemicals safety test(2001-2004)). Algae: [same component]: ErC50 30 mg/l 72 hr Scenedesmus subspicatus (Directivw 87/302/EEC, GLP . IUCLID). Mobility in soil: Not available. PBT and vPvB assessment: Not available. Other adverse effects: Not available |
| Persistence and degradability | Persistence: [3,5-Bis(1,1-dimethylethyl)-4-hydroxybenzene-propanoic acid octadecyl ester]: log Kow 13.41 (Estimate). Degradability: Not available |
| Bioaccumulation | Bioaccumulation: [3,5-Bis(1,1-dimethylethyl)-4-hydroxybenzene-propanoic acid octadecyl ester]: BCF ≤ 12 (Carp(Cyprinus carpio) 6 weeks 0.05mg/L)(CERI). Biodegradability: [same component]: 21 ~ 39 (%) 28 day (OECD TG 301 C . OECD SIDS) |
13. Disposal considerations
| Product | Dispose of in accordance with local, state and federal regulations. Check for recycling options. Do not release into the environment. |
| Packaging | Empty spools and packaging can be recycled if not contaminated. |
14. Transport information
| US DOT, IMDG, IATA/ICAO | UN No. (ADR/RID/ADN, IMDG, ICAO): Not applicable. UN proper shipping name: Not applicable. Transport hazard class(es): Not applicable. Packing group: Not applicable. Environmental hazards: Not available. Special precautions for user: Local transport follows in accordance with Dangerous goods Safety Management Law. Package and transport follow in accordance with Department of Transportation (DOT) and other regulatory agency requirements. Transport in bulk (MARPOL 73/78, IBC): Not applicable |
15. Regulatory information
| U.S. TSCA | No data available |
| SARA 313 | No data available |
16. Other information
| NFPA hazard codes | No data available |
| HMIS III rating | No data available |
| Issue date / revision | 10-27-2026 · Revision 2.0, supersedes Revision 1.0 (04-25-25). Rewritten in the 16-section OSHA format. |
| Prepared by | COEX LLC |
This data is based on the current state of our information and experience.
www.coex3d.com
Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.
CX04 ASA Prime Yellow Card
Yellow Card Sheet: CX04 ASA PRIME 3D PRINTING FILAMENT
YELLOW CARD Rev 1.0
Flammability
| Flame Rating | Value | Test Method |
|---|---|---|
| 1.0 mm, ALL | HB | UL 94 |
| 3.0 mm, ALL | HB | UL 94 |
| 6.0 mm, ALL | HB | UL 94 |
| 3.0 mm, ALL | HB40 | IEC 60695-11-10, -20 |
| 6.0 mm, ALL | HB40 | IEC 60695-11-10, -20 |
| 1.5 mm, ALL | HB75 | IEC 60695-11-10, -20 |
Electrical
| Property | Value | Test Method |
|---|---|---|
| Hot-wire Ignition (HWI) | ||
| 1.5 mm | PLC 4 | UL 746 |
| 3.0 mm | PLC 3 | |
| 6.0 mm | PLC 2 | |
| High Amp Arc Ignition (HAI) | ||
| 1.5 mm | PLC 0 | UL 746 |
| 3.0 mm | PLC 0 | |
| 6.0 mm | PLC 0 | |
| Comparative Tracking Index (CTI) | PLC 2 | UL 746 |
| Dielectric Strength | 27 kV/mm | ASTM 746 |
| High Voltage Arc Tracking Rate (HVTR) | PLC 1 | UL 746 |
| Volume Resistivity | 1.0E+15 ohms-cm | ASTM D257, IEC 60093 |
| Arc Resistance | PLC 6 | ASTM D495 |
Thermal
| Property | Value | Test Method |
|---|---|---|
| RTI Elec | ||
| 1.0 mm | 50.0 °C | UL 746 |
| 3.0 mm | 50.0 °C | |
| 6.0 mm | 50.0 °C | |
| RTI Imp | ||
| 1.5 mm | 50.0 °C | UL 746 |
| 3.0 mm | 50.0 °C | |
| 6.0 mm | 50.0 °C | |
| RTI Str | ||
| 1.5 mm | 50.0 °C | UL 746 |
| 3.0 mm | 50.0 °C | |
| 6.0 mm | 50.0 °C | |
| Dimensional Stability | 0.0% | ASTM D1042, ISO 2796 |
Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.
