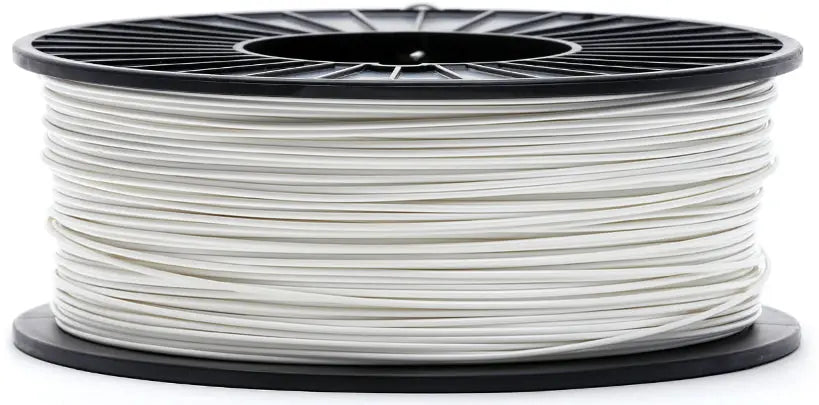

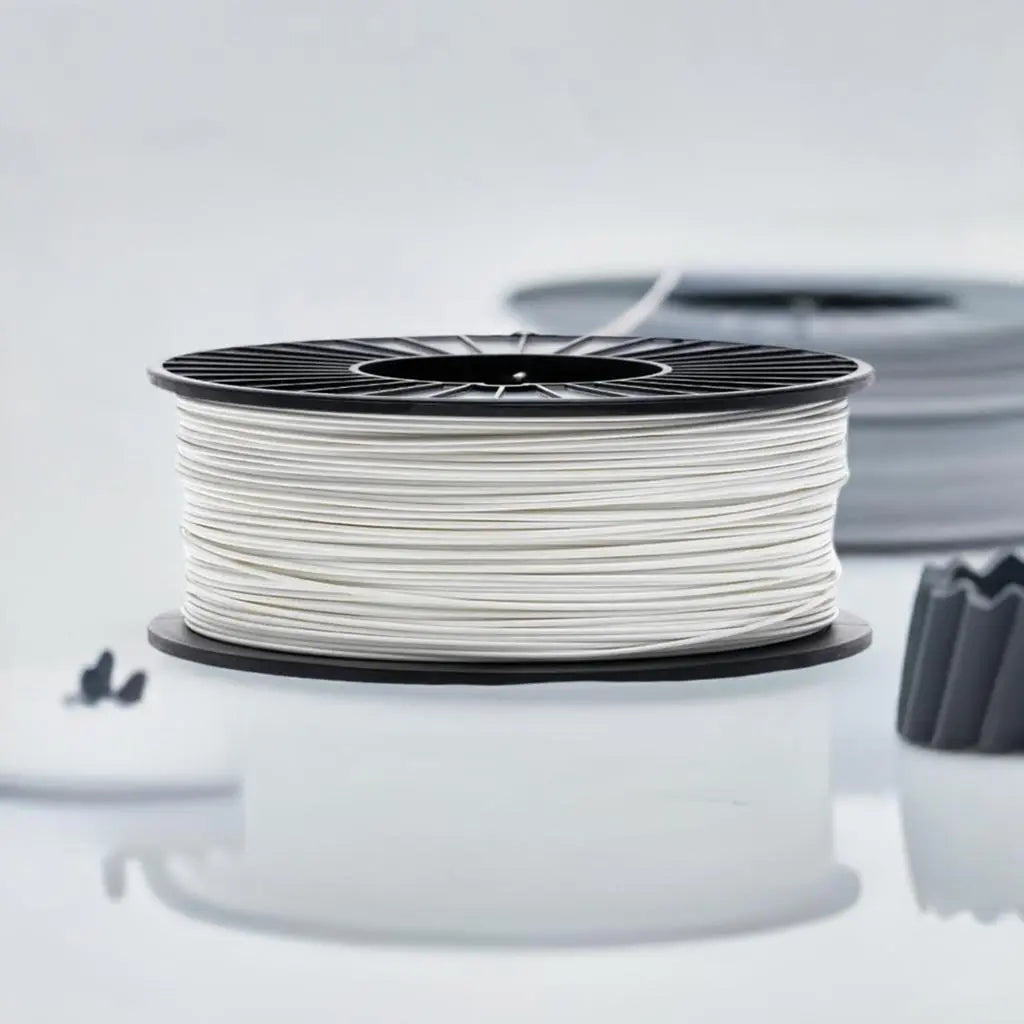

White CoexFlex™ 30D TPE

White CoexFlex™ 30D TPE

SKU:CX20-0200-18-1KG

Diameter
Weight

6 in stock

Regular price $80.00 USD
Regular price $80.00 USD Sale price $80.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

White CoexFlex™ 30D TPE

CoexFlex™ 30D TPE is our second most flexible filament.  With great layer adhesion and soft nature, it make very durable and flexible prints  30D can be referenced on the Shore Hardness scale. CoexFlex™ 30D TPE is a TPC (Thermoplastic Copolyester Elastomer), which exception temperature resistance, abrasion resistance, and tensile strength.

CoexFlex™ TPE/TPU lineup of filaments will give you the best results when you require a flexible 3D Printing Filament.  Proudly made in the USA.


Technical Printing Guide - COEXFLEX 30D

1. Material Notes

  • Keep filament dry - store properly and dry before use
  • If needed, dry at 55°C for 4 hours or more
  • Preferably use direct drive extruder
  • Print multiple parts sequentially to minimize stringing
  • Use maximum travel speed to minimize stringing

2. Basic Parameters

Unlike rigid filaments, TPE stretches when extruded, producing thinner lines. The line width will be smaller than the nozzle diameter. To ensure proper bonding between vertical walls and perimeters

Nozzle Layer Height Line Width Volumetric Speed Temperature
0.4mm 0.2mm 0.35mm 2.5 mm³/s 240°C
0.6mm 0.3mm 0.55mm 5.6 mm³/s 240°C
0.8mm 0.4mm 0.75mm 10.0 mm³/s 240°C
 1.0mm 0.5mm 0.95mm 15.6 mm³/s 240°C


3. Speed Settings

0.4mm Nozzle (Volumetric Speed: 2.5 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 17.86mm/s
Internal Perimeters 75% 26.79 mm/s
Infill 100% 35.71 mm/s
Top/Bottom 60% 21.43 mm/s
First Layer 30% 10.71 mm/s


0.6mm Nozzle (Volumetric Speed: 5.6 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 17.00 mm/s
Internal Perimeters 75% 25.50 mm/s
Infill 100% 34.00 mm/s
Top/Bottom 60% 20.40 mm/s
First Layer 30% 10.20 mm/s


0.8mm Nozzle (Volumetric Speed: 10.0 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 16.67 mm/s
Internal Perimeters 75% 25.00 mm/s
Infill 100% 33.33 mm/s
Top/Bottom 60% 20.00 mm/s
First Layer 30% 10.00 mm/s


1.0mm Nozzle (Volumetric Speed: 15.6 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 16.42 mm/s
Internal Perimeters 75% 24.63 mm/s
Infill 100% 32.84 mm/s
Top/Bottom 60% 19.70 mm/s
First Layer 30% 9.85 mm/s


4. Retraction Settings

IMPORTANT: Set travel speed to the maximum your machine allows (200-500mm/s). Faster movements reduce filament oozing time, minimizing stringing.

Nozzle Distance Speed Z-Hop
0.4mm 1.8-2.8mm 35mm/s 0.2mm
0.6mm 1.8-2.8mm 35mm/s 0.2mm
0.8mm 2.0-3.0mm 35mm/s 0.2mm
1.0mm 2.0-3.0mm 35mm/s 0.2mm


5. Temperature Settings

Bed Temperature: 25-85°C

Extruder Temperature: 205-225°C

6. Cooling Settings

Cooling Configuration:

  • General: 0% (fan off)
  • Force fan speed for overhangs and bridges: OFF
  • Layers < 20 seconds: 40% fan
  • First layer: 0%

7. Troubleshooting Guide

 Problem Solution
Irregular extrusion

1. Dry the filament

2. Check extruder

3. Reduce speed

Poor adhesion

1. Dry the filament

2. Use adhesive

3. Adjust first layer

Stringing

1. Dry the filament

2. Adjust retraction

3. Increase travel speed

4. Check temperature



PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.

  • Tolerance:

    At Coex 3D, we use multi axis laser measuring heads to ensure a tolerance of ±.03mm. Reliability, print after print, spool after spool.

  • Quality:

    All Coex 3D filament is manufactured in our Green Bay, WI production facility. This allows us to ensure consistent quality for every spool through control of every aspect of the manufacturing process.

  • Packaging:

    Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag. No need to dry when you receive your order.

  • Tested:

    Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag. No need to dry when you receive your order.
