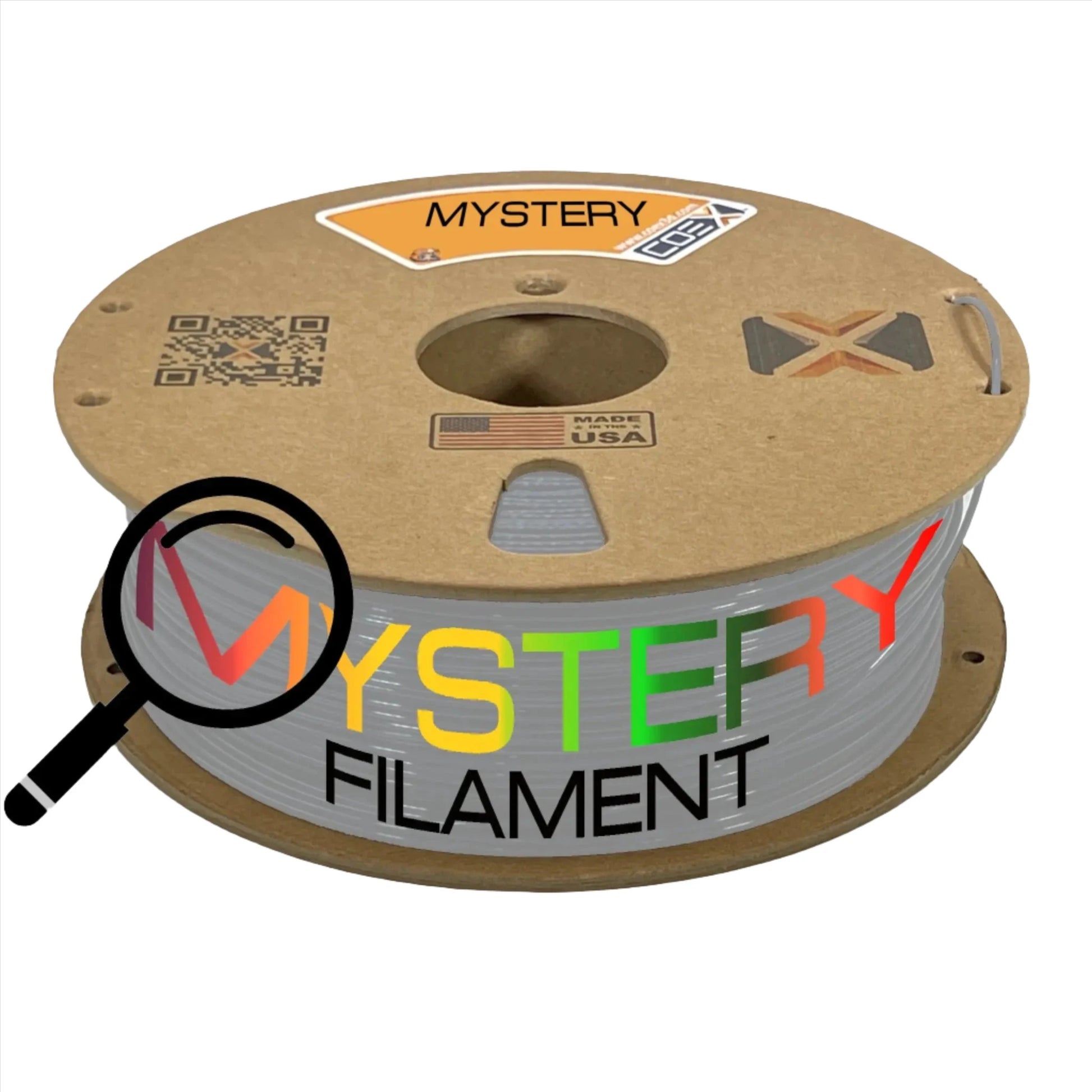

Transition "Mystery" Color CoexFlex™ 60A TPU

Transition "Mystery" Color CoexFlex™ 60A TPU

SKU:CX17-0000-18-1KG

*** Please verify the size selected is correct for your printer. We do not allow backorders on any of our Mystery Filament. The website autoselects the next size available. If you cannot select 1.75mm, we are out of stock and it cannot be ordered at this time. ***

Diameter
Weight

Out of stock

Regular price $60.00 USD
Regular price $65.00 USD Sale price $60.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Transition "Mystery" Color CoexFlex™ 60A TPU

CoexFlex™ 60A TPU is, by far, the most flexible filament on the market. At Shore 60A, it is much softer than Ninjaflex or Filaflex, feels like a rubber band, and produces finished parts that are completely flexible no matter what infill density you use. Highly functional for applications that require stretch, flexibility, or compliance. (NOTE: Only printable with select printers capable of printing this durometer of filament. A direct drive extruder is required. If you are unsure if your printer can print this material, please contact us prior to purchase!)

Note: These are not a rainbow filament.  The color change in each spool will vary and be very gradual.

Benefits of CoexFlex™ 60A TPU

  • Excellent layer adhesion
  • Incredible flexibility and elasticity
  • Great durability

Uses

  • Soft handles and grips
  • Protective cases and skins
  • Custom-shaped seals and gaskets
  • Soft and flexible functional parts

Recommended print settings

  • Hotend Temperature: 205°C – 215°C (DO NOT approach or exceed the material breakdown temperature of 230°C)
  • Bed Temperature: Bed heating not recommended.
  • Recommended build surfaces/adhesives:
    • BuildTak
    • PEI
    • Kapton Tape
    • Hairspray
    • Magigoo Flex
    • Magigoo
    • Painter’s Tape
  • Print speed – up to 40mm/s. Start very slow (20mm/s) and work up from there. Slow down for bridging and infill.
  • Extrusion multiplier – up to 1.25 compared to rigid material, depending on extruder tension
  • Extrusion width – 105% of nozzle diameter (0.42 for a 0.4mm nozzle)
  • Part cooling fan recommended

Technical Printing Guide - COEXFLEX 60A

1. Material Notes

  • Keep filament dry - store properly and dry before use
  • If needed, dry at 55°C for 4 hours or more
  • Preferably use direct drive extruder
  • Print multiple parts sequentially to minimize stringing
  • Use maximum travel speed to minimize stringing

2. Temperature Settings

Bed Temperature:

  • Small parts: No heating (room temperature)
  • Large parts: 40-45°C

Extruder Temperature: 205-225°C

  • Due to thermal breakdown of the material, do not exceed 230°C

3. Basic Parameters

Unlike rigid filaments, TPU stretches when extruded, producing thinner lines. The line width will be smaller than the nozzle diameter. To ensure proper bonding between vertical walls and perimeters

Nozzle Layer Height Line Width Volumetric Speed Temperature
0.4mm 0.2mm 0.34mm 2.0 mm³/s 225°C
0.6mm 0.3mm 0.54mm 4.5 mm³/s 225°C
0.8mm 0.4mm 0.74mm 8.0 mm³/s 225°C
 1.0mm 0.5mm 0.94mm 12.5 mm³/s 225°C


4. Speed Settings

0.4mm Nozzle (Volumetric Speed: 2.0 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 15.15 mm/s
Internal Perimeters 75% 22.73 mm/s
Infill 100% 30.30 mm/s
Top/Bottom 60% 18.18 mm/s
First Layer 30% 9.09 mm/s


0.6mm Nozzle (Volumetric Speed: 4.5 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 14.15 mm/s
Internal Perimeters 75% 21.23 mm/s
Infill 100% 28.30 mm/s
Top/Bottom 60% 16.98 mm/s
First Layer 30% 8.49 mm/s


0.8mm Nozzle (Volumetric Speed: 8.0 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 13.70 mm/s
Internal Perimeters 75% 20.55 mm/s
Infill 100% 27.40 mm/s
Top/Bottom 60% 16.44 mm/s
First Layer 30% 8.22 mm/s


1.0mm Nozzle (Volumetric Speed: 12.5 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 13.44 mm/s
Internal Perimeters 75% 20.16 mm/s
Infill 100% 26.88 mm/s
Top/Bottom 60% 16.13 mm/s
First Layer 30% 8.06 mm/s


5. Retraction Settings

IMPORTANT: Set travel speed to the maximum your machine allows (200-500mm/s). Faster movements reduce filament oozing time, minimizing stringing.

Nozzle Distance Speed Z-Hop
0.4mm 1.5-2.0mm 30mm/s 0.2mm
0.6mm 1.5-2.5mm 30mm/s 0.2mm
0.8mm 2.0-3.5mm 30mm/s 0.2mm
1.0mm 2.0-3.5mm 30mm/s 0.2mm



6. Cooling Settings

Cooling Configuration:

  • General: 0% (fan off)
  • Force fan speed for overhangs and bridges: OFF
  • Layers < 10 seconds: 40% fan
  • First layer: 0%

7. Troubleshooting Guide

 Problem Solution
Irregular extrusion

1. Dry the filament

2. Check extruder

3. Reduce speed

Poor adhesion

1. Dry the filament

2. Use adhesive

3. Adjust first layer

Stringing

1. Dry the filament

2. Adjust retraction

3. Increase travel speed

4. Check temperature



PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.

  • Tolerance:

    At Coex 3D, we use multi axis laser measuring heads to ensure a tolerance of ±.03mm. Reliability, print after print, spool after spool.

  • Quality:

    All Coex 3D filament is manufactured in our Green Bay, WI production facility. This allows us to ensure consistent quality for every spool through control of every aspect of the manufacturing process.

  • Packaging:

    Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag. No need to dry when you receive your order.

  • Tested:

    Coex 3D doesn't just sell filament, we use it on a daily basis. Our 50+ 3D printers are constantly running with our filament. We rely on our quality as much as our customers do.
