COEX 3D

Salsa Red ABS+

Salsa Red ABS+

SKU:CX09-1400-18-1KG

Diameter
Weight

16 in stock

Regular price $39.00 USD
Regular price $34.00 USD Sale price $39.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

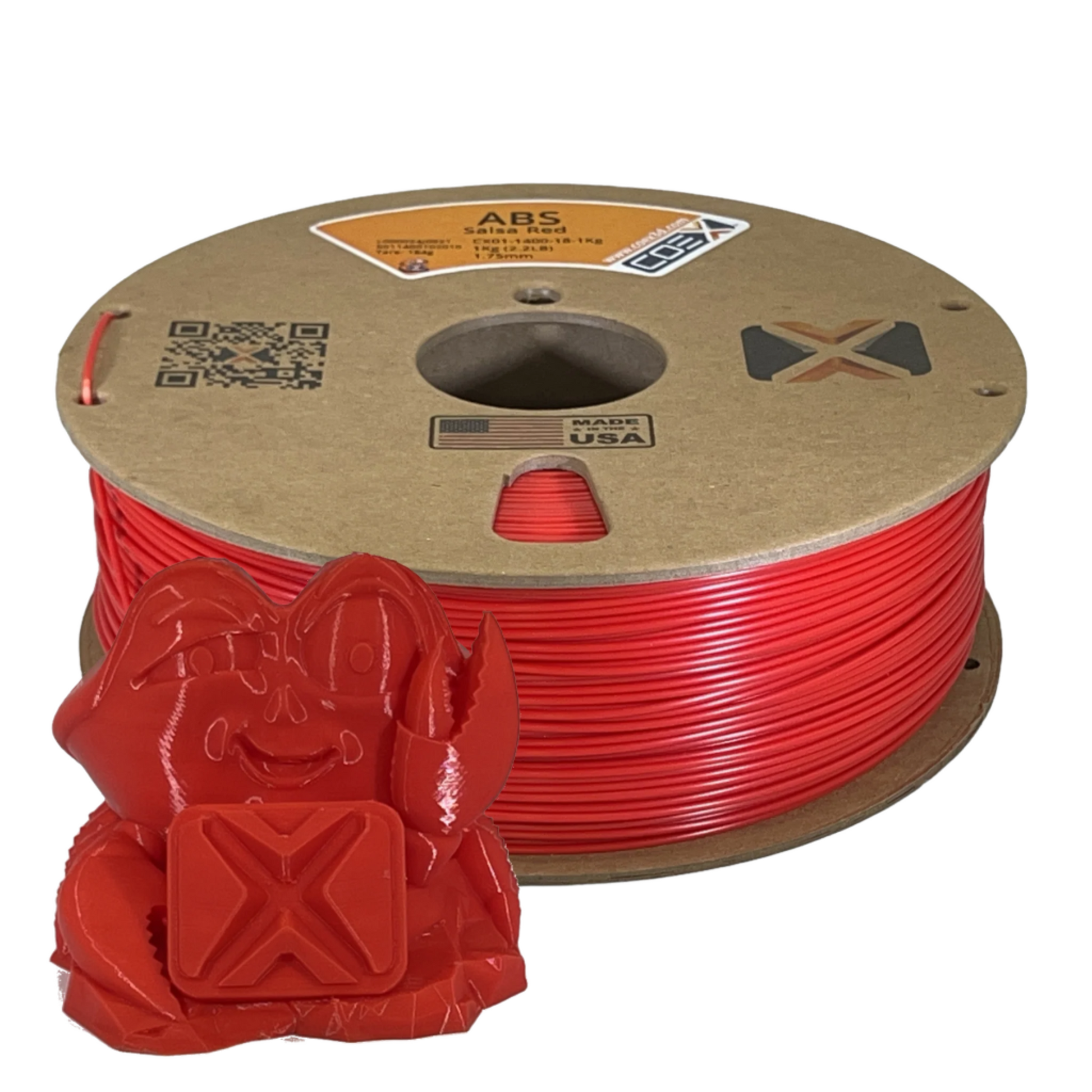

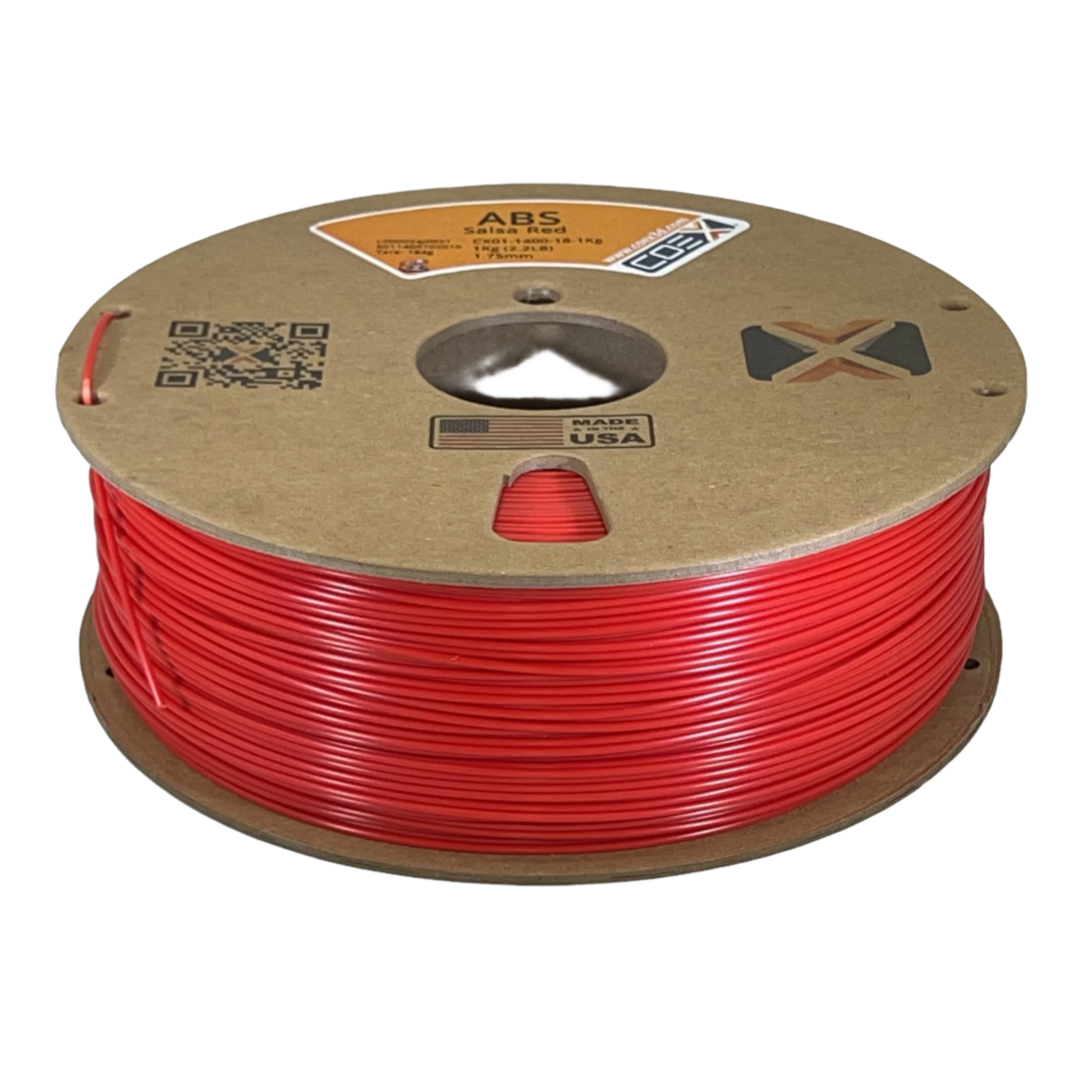

Salsa Red ABS+

ABS+ filament is an advanced thermoplastic 3d printing filament.  ABS, which stands for Acrylonitrile Butadiene Styrene. Coex ABS + or ABS Prime is an engineering grade material made from a higher grade base resin which will provide an even stronger finished print than the standard Coex ABS filament.  ABS is used by a variety of manufacturing industries for parts requiring structural integrity and detail and is commonly used in rapid prototyping and additive manufacturing environments to test product impact resistance and durability.  This 3D printer filament comes in a variety of colors and is available in 1.75 and 2.85 MM in diameter, and comes in 500 g, 5 lbs, 15 lbs and 1 kg.



As opposed to PLA and PETG filament, ABS Prime is a bit more technical and may be more challenging for new 3D printing users and requires the use of an enclosed 3D printer.  ABS is a stiff 3D printing material that will be impact and heat resistant. Common applications for ABS include end-use tools, moving parts, and parts that must withstand high mechanical stress.





Technical Printing Guide - COEX ABS Prime

1. Material Notes

  • Keep filament dry - store properly and dry before use
  • If needed, dry at 75°C for 3 hours or more
  • Enclosure is necessary
  • Use Z-offset slightly higher than PLA (+0.05mm)
  • Enable "Avoid crossing perimeters" to reduce stringing
  • Consider using the "Wipe while retract" option
  • Enable "Slow down for small perimeters."
  • Print outer walls slower for better quality
  • Use a minimum layer time of 30 seconds for small parts
  • Consider using "Extra Prime Amount" after retraction

2. Basic Parameters

Nozzle Layer Height Line Width Volumetric Speed Temperature
0.4mm 0.2mm 0.42mm 14.0 mm³/s 250°C
0.6mm 0.3mm 0.62mm 31.5 mm³/s 255°C
0.8mm 0.4mm 0.82mm 56.0 mm³/s 260°C
 1.0mm 0.5mm 1.02mm 87.5 mm³/s 265°C


3. Speed Settings

0.4mm Nozzle (Volumetric Speed: 14.0 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 83.33 mm/s
Internal Perimeters 75% 125.00 mm/s
Infill 100% 166.67 mm/s
Top/Bottom 60% 100.00 mm/s
First Layer 30% 50.00 mm/s


0.6mm Nozzle (Volumetric Speed: 31.5 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 84.68 mm/s
Internal Perimeters 75% 127.02 mm/s
Infill 100% 169.35 mm/s
Top/Bottom 60% 101.61 mm/s
First Layer 30% 50.81 mm/s


0.8mm Nozzle (Volumetric Speed: 56.0 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 85.37 mm/s
Internal Perimeters 75% 128.05 mm/s
Infill 100% 170.73 mm/s
Top/Bottom 60% 102.44 mm/s
First Layer 30% 51.22 mm/s


1.0mm Nozzle (Volumetric Speed: 87.5 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 85.78 mm/s
Internal Perimeters 75% 128.68 mm/s
Infill 100% 171.57 mm/s
Top/Bottom 60% 102.94 mm/s
First Layer 30% 51.47 mm/s


4. Retraction Settings

IMPORTANT: Set travel speed to the maximum your machine allows (200-500mm/s). Faster movements reduce filament oozing time, minimizing stringing.

Nozzle Distance Speed Z-Hop
0.4mm 1.0-1.5mm 40mm/s 0.2mm
0.6mm 1.0-1.5mm 40mm/s 0.2mm
0.8mm 1.0-1.5mm 40mm/s 0.2mm
1.0mm 1.0-1.5mm 40mm/s 0.2mm


5. Temperature Settings

Bed Temperature: 80-100°C

  • Wash the bed often for good adhesion - Use dish soap and rinse thoroughly to remove oils
  • Use bed adhesion products if necessary (gluestick, WELD3D)
  • Use brim for tall or large prints
  • Keep the ambient temperature stable

Extruder Temperature: 245-265°C

6. Cooling Settings

Cooling Configuration:

    • First Layer: 0% (fan off)
    • General Printing: 100% base fan speed
    • Bridges and Overhangs: 100% fan speed
    • Layers < 15 seconds: 100% fan speed

7. Troubleshooting Guide

 Problem Solution
Irregular extrusion

1. Dry the filament

2. Check the extruder

3. Reduce speed

Poor adhesion

1. Dry the filament

2. Use adhesive

3. Adjust the first layer

Stringing

1. Dry the filament

2. Adjust retraction

3. Increase travel speed

4. Check temperature



PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.

Tolerance: At Coex 3D, we use multi axis laser measuring heads to ensure a tolerance of ±.03mm.

Quality: All Coex 3D printer filament is manufactured in our Green Bay, WI production facility. This allows us to ensure consistent quality for every spool through control of every aspect of the manufacturing process.

Packaging: Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag.

Tested: Coex 3D doesn't just sell filament, we use it on a daily basis. Our 50+ 3D printers are constantly running with our filament. We rely on our quality as much as our customers do.
