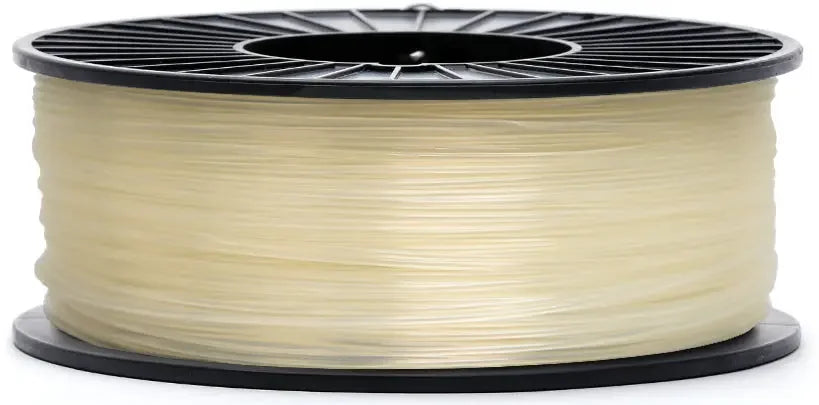

• Natural CoexFlex 60D TPE COEX 3D printer filament spool on white background

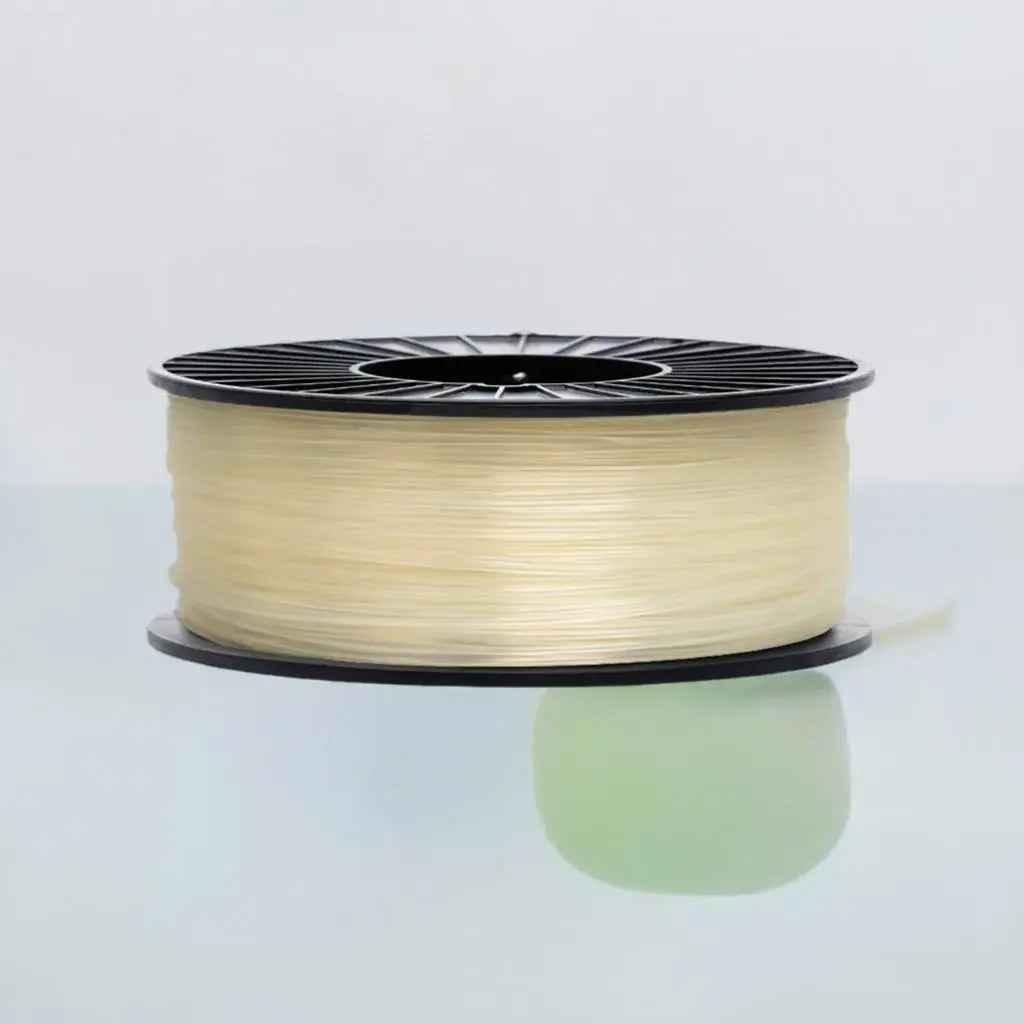

  • Natural CoexFlex 60D TPE flexible 3D printer filament on black spool
1 2

COEX 3D

Natural CoexFlex™ 60D TPE

Natural CoexFlex™ 60D TPE

CX19-0100-18-1KG

Diameter
Weight

3 in stock

$80.00 USD
$80.00 USD $80.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Natural CoexFlex™ 60D TPE

TPU-Like Flexibility, Faster Printing, Greater Strength

Experience flexible printing without the fuss. CoexFlex™ 60D TPE (TPC) delivers the same smooth, rubber-like performance you expect from TPU—but prints faster and with superior strength, heat, and chemical resistance.

With excellent layer adhesion and a soft 60D Shore hardness, it’s ideal for parts that need to flex, bend, and endure repeated use. From protective grips to seals and functional prototypes, CoexFlex™ 60D maintains durability where TPU can fall short.

Formulated from a Thermoplastic Copolyester Elastomer (TPC), it offers exceptional temperature and abrasion resistance while remaining easy to print on any TPU-capable setup.

Proudly made in the USA.

Benefits of CoexFlex™ Filament

  • Excellent layer adhesion
  • Great durability
  • Wide range of hardness options (60A, 30D, 40D, 60D)

Uses

  • Soft handles and grips
  • Protective cases and skins
  • Custom-shaped seals and gaskets
  • Soft and flexible functional parts

Recommended Print Settings

  • Hotend Temperature: 205 °C - 250 °C
  • Bed Temperature: 25 °C - 85 °C
  • Heated Bed Recommended
  • Recommended Build Surfaces/Adhesives:
    • Magigoo
    • Magigoo Flex
    • Painter's Tape
    • Gluestick
    • PEI
  • Part Cooling Fan Recommended

Technical Printing Guide - COEXFLEX 60D

1. Material Notes

  • Keep filament dry - store properly and dry before use
  • If needed, dry at 55°C for 4 hours or more
  • Preferably use a direct drive extruder
  • Print multiple parts sequentially to minimize stringing
  • Use maximum travel speed to minimize stringing

2. Temperature Settings

Bed Temperature: 25-85°C

Extruder Temperature: 205-225°C

3. Basic Parameters

Unlike rigid filaments, TPE stretches when extruded, producing thinner lines. The line width will be smaller than the nozzle diameter. To ensure proper bonding between vertical walls and perimeters

Nozzle Layer Height Line Width Volumetric Speed Temperature
0.4mm 0.2mm 0.38mm 4.5 mm³/s 240°C
0.6mm 0.3mm 0.58mm 10.1 mm³/s 240°C
0.8mm 0.4mm 0.78mm 18.0 mm³/s 240°C
1.0mm 0.5mm 0.98mm 28.1 mm³/s 240°C


4. Speed Settings

0.4mm Nozzle (Volumetric Speed: 4.5 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 29.61 mm/s
Internal Perimeters 75% 44.41 mm/s
Infill 100% 59.21 mm/s
Top/Bottom 60% 35.53 mm/s
First Layer 30% 17.76 mm/s


0.6mm Nozzle (Volumetric Speed: 10.1 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 29.01 mm/s
Internal Perimeters 75% 43.52 mm/s
Infill 100% 58.02 mm/s
Top/Bottom 60% 34.81 mm/s
First Layer 30% 17.41 mm/s


0.8mm Nozzle (Volumetric Speed: 18.0 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 28.85 mm/s
Internal Perimeters 75% 43.27 mm/s
Infill 100% 57.69 mm/s
Top/Bottom 60% 34.62 mm/s
First Layer 30% 17.31 mm/s


1.0mm Nozzle (Volumetric Speed: 28.1 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 28.67 mm/s
Internal Perimeters 75% 43.01 mm/s
Infill 100% 57.35 mm/s
Top/Bottom 60% 34.41 mm/s
First Layer 30% 17.20 mm/s


5. Retraction Settings

IMPORTANT: Set travel speed to the maximum your machine allows (200-500mm/s). Faster movements reduce filament oozing time, minimizing stringing.

Nozzle Distance Speed Z-Hop
0.4mm 1.8-2.5mm 40mm/s 0.2mm
0.6mm 1.8-2.5mm 40mm/s 0.2mm
0.8mm 2.0-3.0mm 40mm/s 0.2mm
1.0mm 2.0-3.0mm 40mm/s 0.2mm



6. Cooling Settings

Cooling Configuration:

  • General: 0% (fan off)
  • Force fan speed for overhangs and bridges: OFF
  • Layers < 20 seconds: 40% fan
  • First layer: 0%

7. Troubleshooting Guide

 Problem Solution
Irregular extrusion

1. Dry the filament

2. Check extruder

3. Reduce speed
Poor adhesion

1. Dry the filament

2. Use adhesive

3. Adjust first layer
Stringing

1. Dry the filament

2. Adjust retraction

3. Increase travel speed

4. Check temperature



PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.

Coex 3D Filament Slicer Profiles

CX19 CoexFlex TPE 60D Technical Data Sheet

Technical Data Sheet: CX16 ABS FLAME RETARDANT 3D PRINTING FILAMENT

TDS Rev 2.0

BASE RESIN: LG Chem Ltd. ABS AF366A

Physical Properties

PropertyStandardUnitTypical Value
Specific Gravity - DensityASTM D792g/cm³1.16
Melt Density @220°C, 10KGASTM D1238g/10 min54
UL Flammability Class. @1.0mmUL 94N/AHB

Mechanical Properties

PropertyStandardUnitTypical Value
Tensile Yield StrengthASTM D638MPa40.2
Tensile ModulusASTM D638MPa2059
Tensile ElongationASTM D638%5
Flexural StressISO 178MPa63
Notched Izod ImpactASTM D256J/m196
Shrinkage Rate < 1%ASTM D955mm/mm0.40 - 0.70%

Thermal Properties

PropertyStandardUnitTypical Value
Glass Transition Temperature (Tg)DSC°C95
Heat Distortion Temp @ 0.45MPaASTM D648°C85
Decomposition TemperatureASTM 3418°CN/A

SPECIFICATIONS

Filament Size:1.75mm(in)2.85mm(in)
MIN Diameter:1.72mm0.0677 in2.79mm0.1098 in
MAX Diameter:1.78mm0.0701 in2.91mm0.1146 in
Tolerance+/- .03mm+/- 0.0012 in+/- .06mm+/- 0.0024 in

CERTIFICATIONS

UL/C-UL Certified Yellow Card E67171

Printed Specimen Conditions

Printer:Open Source FDM/FFF
Nozzle:0.4mm
Layer Height:0.25mm
Infill:100%, +/-45°
Extrusion Temp:240°C
Bed Temp:90°C
Specimen Orientation:XY Flat
Unannealed

Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.

Download TDS (PDF)

CX19 CoexFlex TPE 60D Safety Data Sheet

Material Safety Data Sheet: CX19 TPE 60D SERIES 3D PRINTING FILAMENT

MSDS Rev 1.0

1. Identification of the substance/preparation and of the company

1.1 Trade name:Coexflex TPE 60D 3D printer filament
1.2 Use of the product:3D printer filament, thermoplastic.
1.3 Supplier:Coex
660 Corporate WAY
Pulaski, WI 54162
Phone: (920) 757-1055

2. Hazards identification

2.1 Classification:Not classified as a hazardous substance or mixture according to the Occupational Safety and Health Administration (OSHA) Hazard Communication Standard 2012.
2.2 Special advice on hazards:No specific dangers known

3. Composition / information on ingredients

3.1 Chemical characteristics:

This product does not contain any components that require disclosure according to OSHA Hazard Communication Standard 2012.

4. First-aid measures

4.1 On skin contact:In case of contact with molten polymer immediately cool the skin with cold water. Medical aid may be required to remove adhering material and for treatment of burns. The material is not likely to be hazardous by skin contact, but cleaning the skin after use is advisable.
4.2 After inhalation:Remove from exposure and move to fresh air immediately. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Get medical aid.
4.3 On ingestion:If swallowed, wash out mouth with water provided person is conscious.
4.4 On eyes contact:In case of contact, immediately flush eyes with copious amounts of water for at least (15) minutes.

5. Fire-fighting measures

5.1 Suitable fire extinguishing media:Water spray, chemical powder or carbon dioxide.
5.2 Special exposure hazards:No particular hazards known.
5.3 Special protective equipment:Self-contained breathing apparatus
5.4 Remark:In case of fire and/or explosion do not breathe fumes.

6. Accidental release measures

6.1 Personal precautions:Spilled material may cause a slipping Hazard.
6.2 Methods for cleaning up:Vacuum or sweep up material and place into a suitable disposal container.

7. Handling and storage

7.1 Handling:Avoid contact with molten polymer.
7.2 Storage:Protect against moisture. Store cool and keep packaging closed when not in use. Avoid sources of ignition.

8. Exposure controls/ personal protection

8.1 Technical safety measures:General mechanical ventilation is normally adequate but use local exhaust where necessary to maintain exposures below acceptable limits. Use local exhaust to completely remove vapors and fumes liberated during hot processing from the work area.
8.2 Personal safety equipment:Use adequate safety equipment, e.g. protective clothing, eye protection glasses, heat protection gloves. Additives in this product do not present a respiration hazard unless the product is ground to a powder of respirable size and the dust is inhaled. All dusts are potentially injurious to the respiratory tract if respirable particles are generated and inhaled. A respiratory protection program that meets country requirements must be followed whenever workplace conditions warrant respirator use. Consult the respirator manufacturer to determine the appropriate type of equipment for a given application. Observe respirator use limitations specified by the manufacturer. Consult the OSHA respiratory protection information located at 29CFR 1910.134. Use a positive pressure air supplied respirator if exposure levels are not known or there are any other circumstances where air purifying respirators may not provide adequate protection.
8.3 Work hygiene:No eating or drinking during working. Avoid contact of hot material with the skin. Avoid breathing dust and vapors.

9. Physical and chemical properties

9.1 Form:Spool
9.2 Color:Various
9.3 Odor:None
9.4 Melting Temperature:>130C
9.5 Oxidizing properties:Not self-igniting / flammable
9.6 Explosions limits:No test data
9.7 Density:1 g/cm³
9.8 Solubility in water:Not soluble

10. Stability and reactivity

10.1 Stability:The product is stable at recommended storage conditions.
10.2 Conditions to be avoided:Temperature > 275 °C (> 527 °F) Abnormally long processing time or high temperatures can produce irritating and toxic fumes. Decomposes on heating. At temperatures above the "conditions to avoid" temperature, thermal decomposition of the resin accelerates. Decomposition can occur below the recommended processing temperature limit. Decomposition is a function of both processing temperature and time at that temperature.
10.3 Substances to be avoided:No special recommendations.
10.4 Hazardous decomposition products:Hazardous thermal decomposition products may include: Tetrahydrofuran, Carbon dioxide, Carbon monoxide, Acetic acid, 2- Methylpropene, Acetaldehyde, Formic acid, Acrolein, Propionaldehyde.

11. Toxicological information

11.1 Local irritation:None
11.2 Other remarks:None

12. Ecological information

12.1 Biological degradation:This product is not biodegradable.
12.2 Bioaccumulation:This product is not biodegradable.

13. Disposal considerations

13.1 Product:In accordance with local and national regulations. Should not be released into the environment. Do not contaminate ponds, waterways or ditches with chemical or used container.
13.2 Uncleaned packaging:Packaging material has to be emptied completely and disposed in accordance with the regulations. Packaging can be recycled if not contaminated.

14. Transport information

14.1 Transport regulations:Not classified as hazardous under transport regulations DOT, ICAO/IATA, IMDG/GGVSee, ICAO/IATA

15. Regulatory information

15.1 EPA regulations:

Sara 313 title III: This material does not contain any chemical components with known CAS numbers that exceed the threshold (De Minimis) reporting levels established by SARA Title III, Section 313.

TSCA Inventory List: In compliance with TSCA Inventory requirements for commercial purposes.

16. Other information

This data is based on the current state of our information and experience. This safety data sheet describes our product in terms of safety requirements. Preceding data is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.

Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.

Download SDS (PDF)

The COEX Advantage

  • Tolerance:

    At Coex 3D, we use multi axis laser measuring heads to ensure a tolerance of ±.03mm. Reliability, print after print, spool after spool.

  • Quality:

    All Coex 3D filament is manufactured in our Green Bay, WI production facility. This allows us to ensure consistent quality for every spool through control of every aspect of the manufacturing process.

  • Packaging:

    Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag. No need to dry when you receive your order.

  • Tested:

    Every spool of Coex 3D filament is thoroughly dried in our industrial dryer before being sealed. Spools are sealed with desiccant in a 4mil thick vacuum bag. No need to dry when you receive your order.
