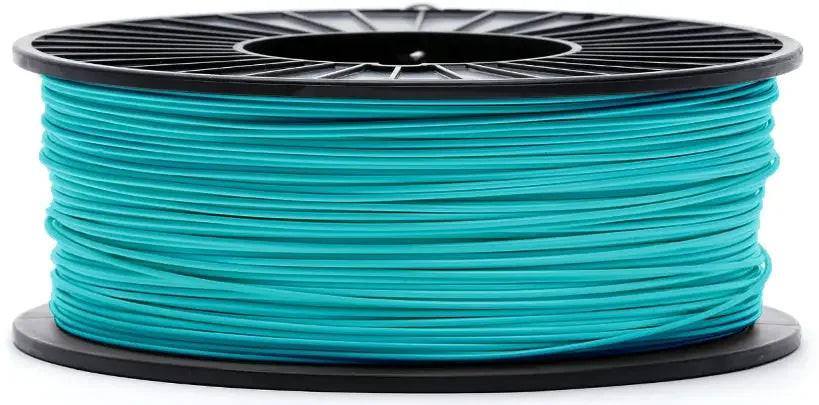

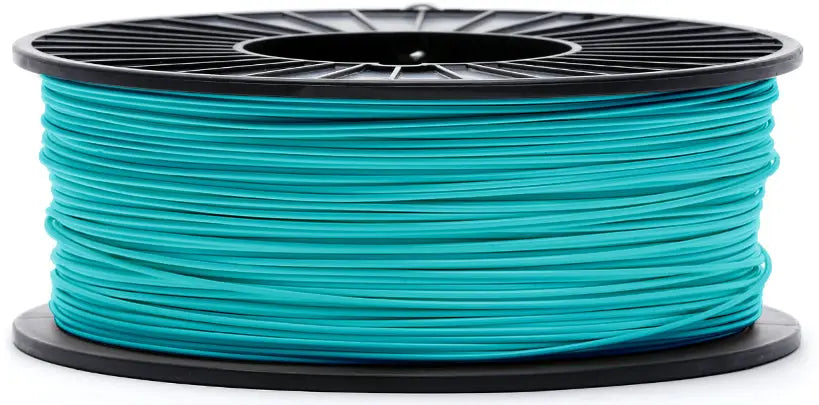

Aqua blue ABS 3D printer filament spool on a black plastic reel

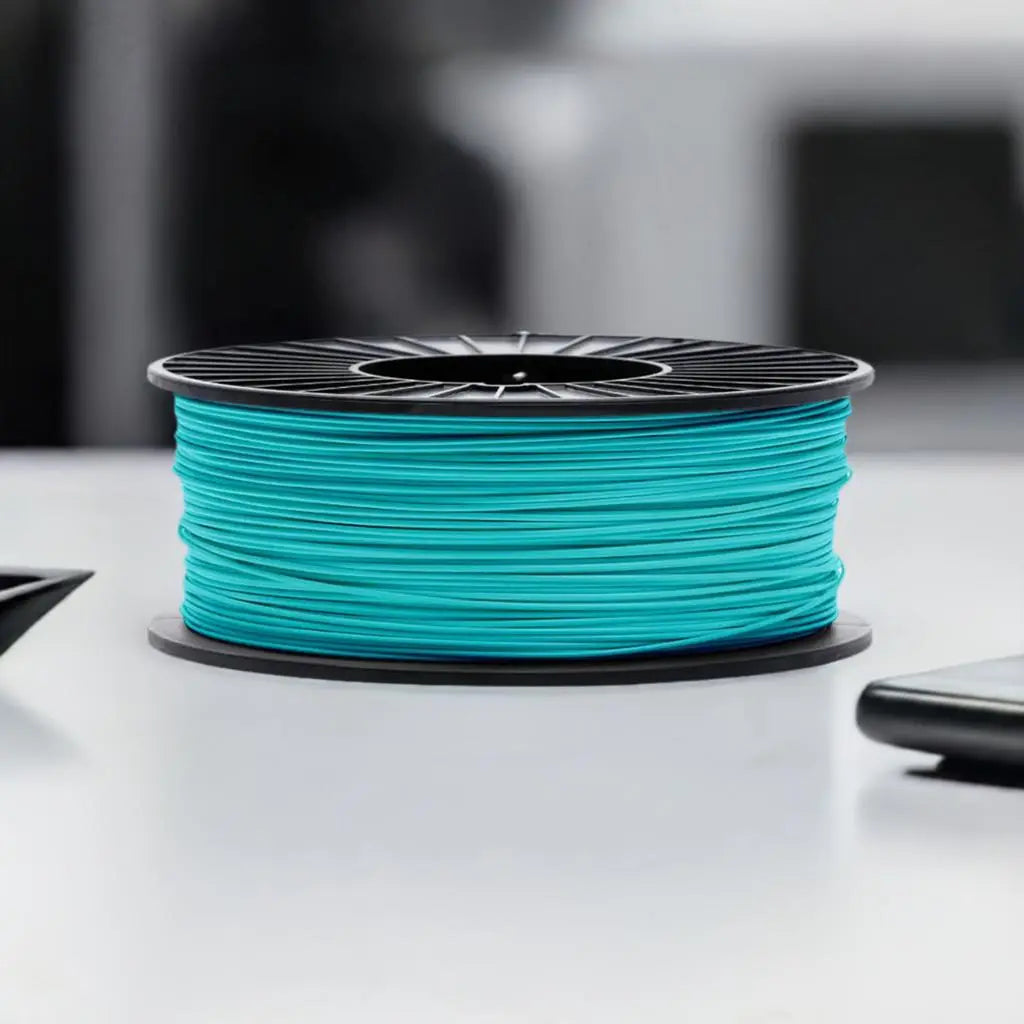

Aqua blue ABS filament spool for 3D printing on a white table
Roll over image to zoom in Click on image to zoom
Aqua blue ABS 3D printer filament spool on a black plastic reelAqua blue ABS filament spool for 3D printing on a white table

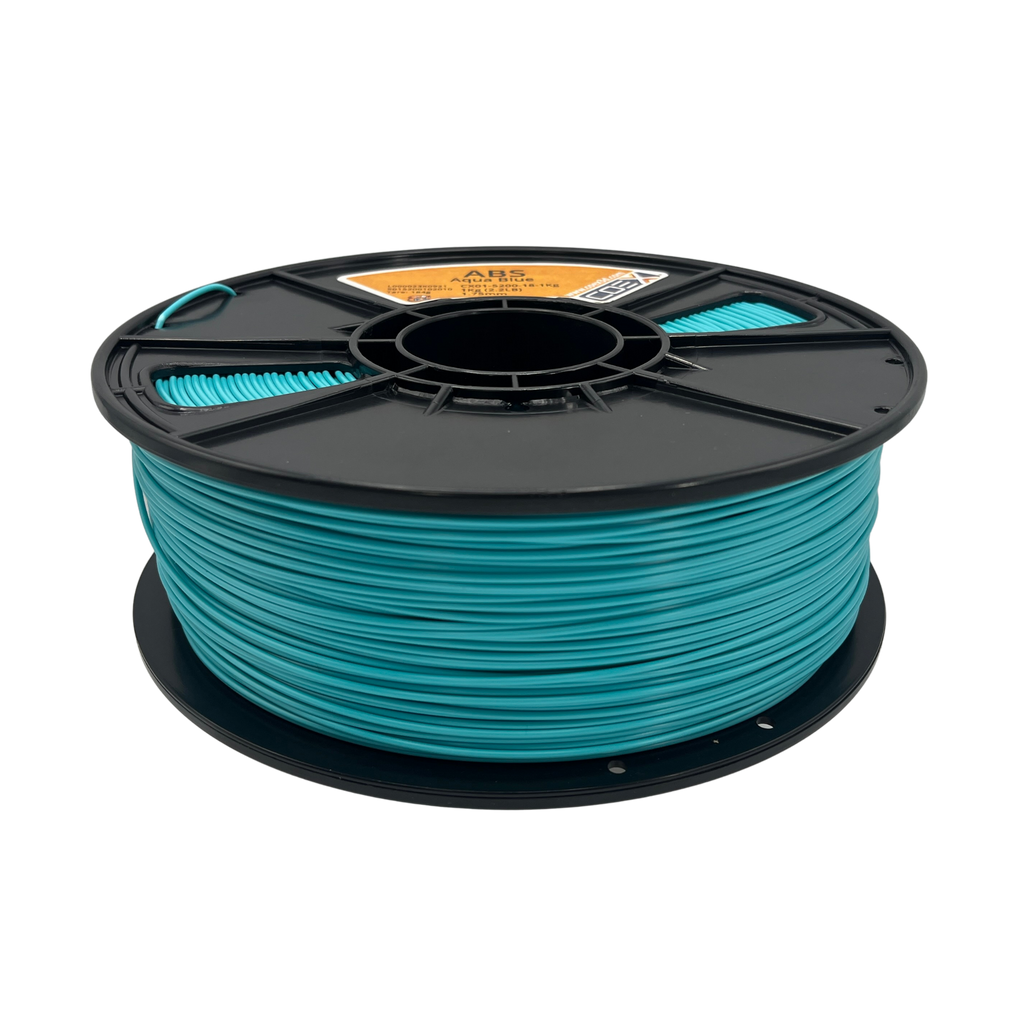

Aqua Blue ABS

SKU: CX01-5200-18-1KG
No reviews
Diameter: 1.75mm
Weight: 1kg
Price:
$30.00
Stock:
Stock: 14

Aqua Blue ABS

ABS filament is a thermoplastic 3d printer filament ABS, which stands for Acrylonitrile Butadiene Styrene. It easily molds when heated and sets evenly when cooled.  ABS filament is used by a variety of manufacturing industries for parts requiring  structural integrity and detail, and is ideal for “wear and tear” projects. It is commonly used in rapid prototyping and additive manufacturing environments to test product impact resistance and durability. It is also popular with 3D printing hobbyist who utilize 3D printing in their home or at a local maker faire.  This 3D printer filament comes in a variety of colors and is available in 1.75 and 2.85 MM in diameter, and comes in 500 g, 5 lbs, 15 lbs and 1 kg.

As opposed to PLA and PETG filament, ABS is a bit more technical and may be more challenging for new 3D printing users and requires the use of an enclosed 3D printer.  ABS is a stiff 3D printing material and it is impact and heat resistant. Common applications for ABS include end-use tools, moving parts, and parts that have to withstand high mechanical stress.





Technical Printing Guide - COEX ABS

1. Material Notes

  • Keep filament dry - store properly and dry before use
  • If needed, dry at 75°C for 3 hours or more
  • Enclosure is nessecary
  • Use Z-offset slightly higher than PLA (+0.05mm)
  • Enable "Avoid crossing perimeters" to reduce stringing
  • Consider using the "Wipe while retract" option
  • Enable "Slow down for small perimeters."
  • Print outer walls slower for better quality
  • Use a minimum layer time of 30 seconds for small parts
  • Consider using "Extra Prime Amount" after retraction

2. Temperature Settings

Bed Temperature: 80-100°C

  • Wash the bed often for good adhesion - Use dish soap and rinse thoroughly to remove oils
  • Use bed adhesion products if necessary (gluestick, WELD3D)
  • Use brim for tall or large prints
  • Keep the ambient temperature stable

Extruder Temperature: 245-265°C

3. Basic Parameters

Nozzle Layer Height Line Width Volumetric Speed Temperature
0.4mm 0.2mm 0.42mm 14.0 mm³/s 250°C
0.6mm 0.3mm 0.62mm 31.5 mm³/s 255°C
0.8mm 0.4mm 0.82mm 56.0 mm³/s 260°C
 1.0mm 0.5mm 1.02mm 87.5 mm³/s 265°C


4. Speed Settings

0.4mm Nozzle (Volumetric Speed: 14.0 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 83.33 mm/s
Internal Perimeters 75% 125.00 mm/s
Infill 100% 166.67 mm/s
Top/Bottom 60% 100.00 mm/s
First Layer 30% 50.00 mm/s


0.6mm Nozzle (Volumetric Speed: 31.5 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 84.68 mm/s
Internal Perimeters 75% 127.02 mm/s
Infill 100% 169.35 mm/s
Top/Bottom 60% 101.61 mm/s
First Layer 30% 50.81 mm/s


0.8mm Nozzle (Volumetric Speed: 56.0 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 85.37 mm/s
Internal Perimeters 75% 128.05 mm/s
Infill 100% 170.73 mm/s
Top/Bottom 60% 102.44 mm/s
First Layer 30% 51.22 mm/s


1.0mm Nozzle (Volumetric Speed: 87.5 mm³/s)

 Line Type Percentage Speed
External Perimeter 50% 85.78 mm/s
Internal Perimeters 75% 128.68 mm/s
Infill 100% 171.57 mm/s
Top/Bottom 60% 102.94 mm/s
First Layer 30% 51.47 mm/s


4. Retraction Settings

IMPORTANT: Set travel speed to the maximum your machine allows (200-500mm/s). Faster movements reduce filament oozing time, minimizing stringing.

Nozzle Distance Speed Z-Hop
0.4mm 1.0-1.5mm 40mm/s 0.2mm
0.6mm 1.0-1.5mm 40mm/s 0.2mm
0.8mm 1.0-1.5mm 40mm/s 0.2mm
1.0mm 1.0-1.5mm 40mm/s 0.2mm



6. Cooling Settings

Cooling Configuration:

    • First Layer: 0% (fan off)
    • General Printing: 100% base fan speed
    • Bridges and Overhangs: 100% fan speed
    • Layers < 15 seconds: 100% fan speed

7. Troubleshooting Guide

 Problem Solution
Irregular extrusion

1. Dry the filament

2. Check the extruder

3. Reduce speed
Poor adhesion

1. Dry the filament

2. Use adhesive

3. Adjust the first layer
Stringing

1. Dry the filament

2. Adjust retraction

3. Increase travel speed

4. Check temperature



PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.

Coex 3D Filament Slicer Profiles

CX01 ABS Technical Data Sheet

Technical Data Sheet: CX01 ABS SERIES 3D PRINTING FILAMENT

TDS Rev 2.0

BASE RESIN: CHIMEI General ABS POLYLAC Ultra-High Impact Strength

Physical Properties

PropertyStandardUnitTypical Value
Specific Gravity - DensityASTM D792g/cm³1.03
Melt Density @220°C, 10KGASTM D1133g/10 min13
UL Flammability Class. @1.5mmUL 94N/A94HB

Mechanical Properties

PropertyStandardUnitTypical Value
Tensile Yield StrengthASTM D638MPa40
Tensile ModulusASTM D638MPa2350
Tensile ElongationASTM D638%35
Flexural StressISO 178MPa58
Notched Izod ImpactASTM D256J/m285
Shrinkage Rate < 1%ASTM D955mm/mm0.40 - 0.70%

Thermal Properties

PropertyStandardUnitTypical Value
Glass Transition Temperature (Tg)DSC°C105
Heat Distortion Temp @ 0.45MPaASTM D648°C85
Decomposition TemperatureASTM 3418°C300

SPECIFICATIONS

Filament Size:1.75mm(in)2.85mm(in)
MIN Diameter:1.72mm0.0677 in2.79mm0.1098 in
MAX Diameter:1.78mm0.0701 in2.91mm0.1146 in
Tolerance+/- .03mm+/- 0.0012 in+/- .06mm+/- 0.0024 in

CERTIFICATIONS

ROHS compliant to (2011/65/EU), 2003/11/EC, TCO'07, Blue Angel and SONY Std. (SS-00259)

NSF/ANSI/CAN 61 Drinking Water System Components

UL/C-UL Certified Yellow Card E56070

Printed Specimen Conditions

Printer:Open Source FDM/FFF
Nozzle:0.4mm
Layer Height:0.25mm
Infill:100%, +/-45°
Extrusion Temp:240°C
Bed Temp:90°C
Specimen Orientation:XY Flat
Unannealed

Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.

Download TDS (PDF)

CX01 ABS Safety Data Sheet

Material Safety Data Sheet: CX01 ABS SERIES 3D PRINTING FILAMENT

MSDS Rev 1.0

BASE RESIN: CHIMEI General ABS POLYLAC Ultra-High Impact Strength

1. Identification of the substance/preparation and of the company

1.1 Trade name:Coex ABS 3D printer filament
1.2 Use of the product:3D printer filament, thermoplastic polymer
1.3 Supplier:Coex
660 Corporate WAY
Pulaski, WI 54162
Phone: (920) 757-1055

2. Hazards identification

2.1 Classification:Combustible Dust
2.2 Special advice on hazards:May form combustible dust concentrations in air. While this product may not be a combustible dust as sold, further processing or handling may form combustible dust concentrations in air.

3. Composition / information on ingredients

3.1 Chemical characteristics:

CAS #Hazardous ComponentsConcentration
9003-54-7Styrene Acrylonitrile Copolymer<=95 %
1333-86-4Carbon black<=5.0 %

4. First-aid measures

4.1 On skin contact:In case of contact with molten polymer immediately cool the skin with cold water. Medical aid may be required to remove adhering material and for treatment of burns.
4.2 After inhalation:Remove from exposure and move to fresh air immediately. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Get medical aid.
4.3 On ingestion:If swallowed, wash out mouth with water provided person is conscious. Call a physician.
4.4 On eyes contact:In case of contact, immediately flush eyes with copious amounts of water for at least (15) minutes.

5. Fire-fighting measures

5.1 Suitable fire extinguishing media:Water spray and foam. Water is the best extinguishing medium.
5.2 Special exposure hazards:Emits toxic fumes under fire conditions. Approved positive pressure demand breathing apparatus (SCBA) and protective clothing should be used for all fires.
5.3 Special protective equipment:Self-contained breathing apparatus
5.4 Remark:Carbon dioxide and carbon monoxide generated when the material burns. Combustible Dust may form during material transfer. Estimated Dust Explosion Class = ST2; Kst estimated (bar.m/s): >200 -

6. Accidental release measures

6.1 Personal precautions:Use suitable protective clothing. Avoid eye contact and inhalation of dusts. Keep ignition sources away.
6.2 Methods for cleaning up:Vacuum or sweep up material and place into a suitable disposal container.

7. Handling and storage

7.1 Handling:Avoid contact with molten polymer. Avoid generation of dust and electrostatic charge.
7.2 Storage:Protect against moisture. Store cool and keep packaging closed when not in use. Avoid sources of ignition.

8. Exposure controls/ personal protection

8.1 Technical safety measures:Use with adequate ventilation. Minimize dust generation and accumulation as combustible dust mixtures may be formed.
8.2 Personal safety equipment:Use adequate safety equipment, e.g. protective clothing, eye protection glasses, heat protection gloves. In case of dust formation wear mask with particle filter.
8.3 Work hygiene:No eating or drinking during working. Avoid contact of hot material with the skin. Avoid breathing dust and vapors.

9. Physical and chemical properties

9.1 Form:Spool
9.2 Color:Various
9.3 Odor:Almost Odorless
9.4 Melting Temperature:250 °C
9.5 Oxidizing properties:Not self-igniting / flammable
9.6 Explosions limits:Class = ST2
9.7 Density:1.27 g/cm³
9.8 Solubility in water:Insoluble

10. Stability and reactivity

10.1 Stability:The product is stable at recommended storage conditions.
10.2 Conditions to be avoided:Stable under recommended conditions of storage and handling.
10.3 Substances to be avoided:No special recommendations.
10.4 Hazardous decomposition products:Processing fumes evolved at recommended processing conditions may include trace levels of low molecular weight hydrocarbon fragments, carbon dioxide, carbon monoxide and Irritating fumes and gases.

11. Toxicological information

11.1 Local irritation:No data available.
11.2 Other remarks:No data available.

12. Ecological information

12.1 Ecological info:This product is not classified as environmentally hazardous. However, this does not exclude the possibility that large or frequent spills can have a harmful or damaging effect on the environment.
12.2 Biological degradation:No data available.
12.3 Bioaccumulation:This product will not readily bioaccumulate due to its insolubility in water.

13. Disposal considerations

13.1 Product:Chemical waste generators must determine whether a discarded chemical is classified as a hazardous waste. US EPA guidelines for the classification determination are listed in (261) CFR Parts (261.3). Additionally, waste generators must consult state and local hazardous waste regulations to ensure complete and accurate classification. RCRA P-Series: None listed. RCRA U-Series: None listed.
13.2 Uncleaned packaging:Packaging material has to be emptied completely and disposed in accordance with the regulations. Packaging can be recycled if not contaminated.

14. Transport information

14.1 Transport regulations:Not classified as hazardous under transport regulations DOT, ICAO/IATA, IMDG/GGVSee, ICAO/IATA

15. Regulatory information

15.1 EPA regulations: This material meets the EPA 'Hazard Categories' defined for SARA Title III Sections 311/312 as indicated:

  • Acute (immediate) Health Hazard: No
  • Chronic (delayed) Health Hazard: No
  • Fire Hazard: Yes
  • Sudden Release of Pressure Hazard: No
  • Reactive Hazard: No

16. Other information

This data is based on the current state of our information and experience. This safety data sheet describes our product in terms of safety requirements. Preceding data is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.

Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.

Download SDS (PDF)
