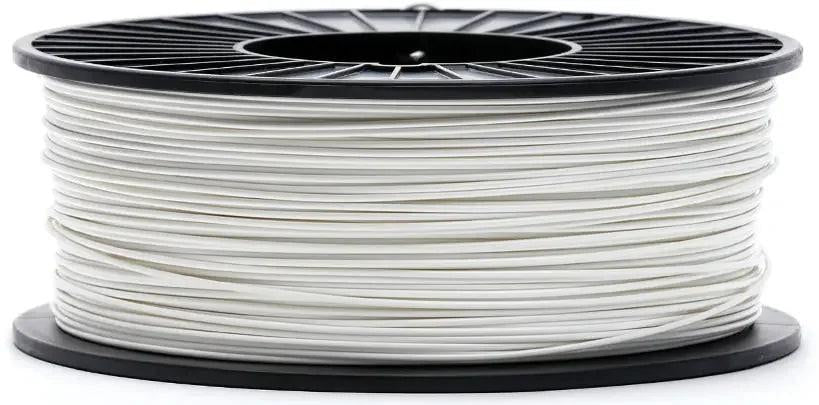

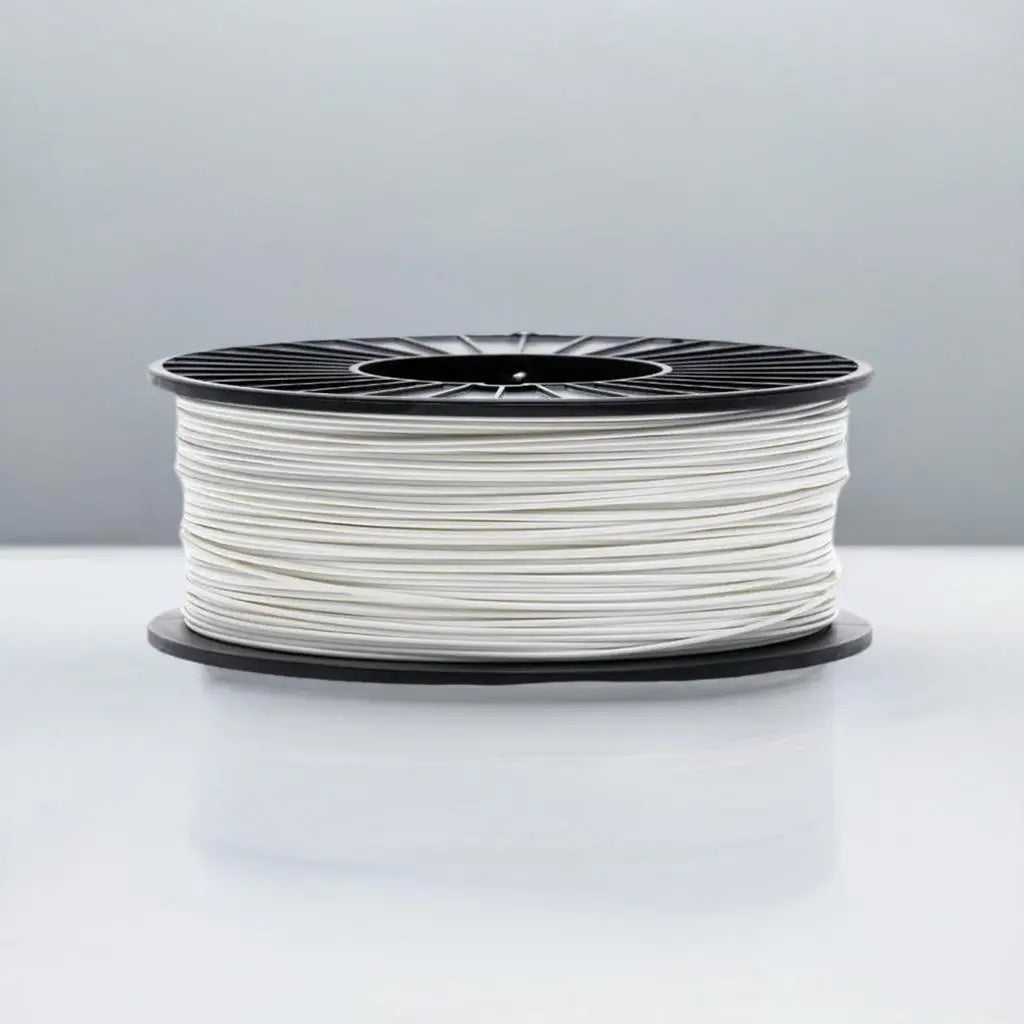

White CoexFlex™ 60A TPU
**60A is very soft and can be challenging to print with. We recommend a direct drive extruder with a contained filament path (it will squeeze out any gap it can) and a PTFE-lined hot end (it tends to stick to the walls of an all-metal hot end). Seasoning an all-metal hot-end may help.**
CoexFlex™ 60A TPU is, by far, the most flexible filament on the market. At Shore 60A, it is much softer than Ninjaflex or Filaflex, feels like a rubber band, and produces finished parts that are completely flexible, no matter what infill density you use. Highly functional for applications that require stretch, flexibility, or compliance. (NOTE: Only printable with select printers capable of printing this durometer of filament. A direct drive extruder is required. If you are unsure if your printer can print this material, please contact us prior to purchase!)
Benefits of CoexFlex™ 60A TPU
- Excellent layer adhesion
- Incredible flexibility and elasticity
- Great durability
Uses
- Soft handles and grips
- Protective cases and skins
- Custom-shaped seals and gaskets
- Soft and flexible functional parts
Technical Printing Guide - COEXFLEX 60A
1. Material Notes
- Keep filament dry - store properly and dry before use
- If needed, dry at 55°C for 4 hours or more
- Preferably use direct drive extruder
- Print multiple parts sequentially to minimize stringing
- Use maximum travel speed to minimize stringing
2. Temperature Settings
Bed Temperature:
- Small parts: No heating (room temperature)
- Large parts: 40-45°C
Extruder Temperature: 205-225°C
- Due to thermal breakdown of the material, do not exceed 230°C
3. Basic Parameters
Unlike rigid filaments, TPU stretches when extruded, producing thinner lines. The line width will be smaller than the nozzle diameter. To ensure proper bonding between vertical walls and perimeters
| Nozzle | Layer Height | Line Width | Volumetric Speed | Temperature |
| 0.4mm | 0.2mm | 0.42mm | 2.0 mm³/s | 225°C |
| 0.6mm | 0.3mm | 0.63mm | 4.5 mm³/s | 225°C |
| 0.8mm | 0.4mm | 0.84mm | 8.0 mm³/s | 225°C |
| 1.0mm | 0.5mm | 1.05mm | 12.5 mm³/s | 225°C |
4. Speed Settings
0.4mm Nozzle (Volumetric Speed: 2.0 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 15.15 mm/s |
| Internal Perimeters | 75% | 22.73 mm/s |
| Infill | 100% | 30.30 mm/s |
| Top/Bottom | 60% | 18.18 mm/s |
| First Layer | 30% | 9.09 mm/s |
0.6mm Nozzle (Volumetric Speed: 4.5 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 14.15 mm/s |
| Internal Perimeters | 75% | 21.23 mm/s |
| Infill | 100% | 28.30 mm/s |
| Top/Bottom | 60% | 16.98 mm/s |
| First Layer | 30% | 8.49 mm/s |
0.8mm Nozzle (Volumetric Speed: 8.0 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 13.70 mm/s |
| Internal Perimeters | 75% | 20.55 mm/s |
| Infill | 100% | 27.40 mm/s |
| Top/Bottom | 60% | 16.44 mm/s |
| First Layer | 30% | 8.22 mm/s |
1.0mm Nozzle (Volumetric Speed: 12.5 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 13.44 mm/s |
| Internal Perimeters | 75% | 20.16 mm/s |
| Infill | 100% | 26.88 mm/s |
| Top/Bottom | 60% | 16.13 mm/s |
| First Layer | 30% | 8.06 mm/s |
5. Retraction Settings
IMPORTANT: Set travel speed to the maximum your machine allows (200-500mm/s). Faster movements reduce filament oozing time, minimizing stringing.
| Nozzle | Distance | Speed | Z-Hop |
| 0.4mm | 1.5-2.0mm | 30mm/s | 0.2mm |
| 0.6mm | 1.5-2.5mm | 30mm/s | 0.2mm |
| 0.8mm | 2.0-3.5mm | 30mm/s | 0.2mm |
| 1.0mm | 2.0-3.5mm | 30mm/s | 0.2mm |
6. Cooling Settings
Cooling Configuration:
- General: 0% (fan off)
- Force fan speed for overhangs and bridges: OFF
- Layers < 10 seconds: 40% fan
- First layer: 0%
7. Troubleshooting Guide
| Problem | Solution |
| Irregular extrusion |
1. Dry the filament 2. Check extruder 3. Reduce speed |
| Poor adhesion |
1. Dry the filament 2. Use adhesive 3. Adjust first layer |
| Stringing |
1. Dry the filament 2. Adjust retraction 3. Increase travel speed 4. Check temperature |
PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.
CX17 CoexFlex TPU 60A Technical Data Sheet
Technical Data Sheet: CX17 COEX-FLEX TPU 60A SERIES 3D PRINTING FILAMENT
TDS Rev 1.0
BASE RESIN: BASF ELASTOLLAN
Physical Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Specific Gravity - Density | ISO 1183 | g/cm³ | 1.17 |
| Melting Temperature, 10°C/min | ISO 11357-1/-3 | °C | 150 |
| Vicat Softening Temp, 50°C/h, 10N | ISO 306 | °C | 70 |
| Hardness, Shore A (max) | ISO 868 | - | 60 |
Mechanical Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Tensile Stress @ Break | ISO 527 Type 1BA | MPa | 27 |
| Tensile Modulus | ISO 527 Type 1A | MPa | 35 |
| Nominal Strain @ Break | ISO 527 Type 1BA | % | 1000 |
| Tensile Stress @ 100% | ISO 527 Type 1BA | MPa | 1.5 |
| Notched & Unnotched Izod Impact | ISO 180/1A | J/m | No Break |
| Shrinkage Rate < 0.5% | ISO 294-4 | mm/mm | 0.50 - 0.80% |
Thermal Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Glass Transition Temperature (Tg) | ISO 11357-2 | °C | -60.0 |
| Melt Temperature | - | °C | 170 |
| Drying Temperature @ 4 hours | - | °C | 55 |
SPECIFICATIONS
| Filament Size: | 1.75mm | (in) | 2.85mm | (in) |
|---|---|---|---|---|
| MIN Diameter: | 1.72mm | 0.0677 in | 2.79mm | 0.1098 in |
| MAX Diameter: | 1.78mm | 0.0701 in | 2.91mm | 0.1146 in |
| Tolerance | +/- .03mm | +/- 0.0012 in | +/- .06mm | +/- 0.0024 in |
ADVANTAGES
- Resilient, Flexible, Heat Resistant, Chemical Resistant, Strong, Durable
- Contains up to 60% renewably sourced materials from biomass
- Combines the flexibility of rubber with the strength and processability of thermoplastics
Printed Specimen Conditions
| Printer: | Open Source FDM/FFF |
| Nozzle: | 0.4mm |
| Layer Height: | 0.25mm |
| Infill: | 100%, +/-45° |
| Extrusion Temp: | 205 - 225°C (Do not exceed 230C) |
| Bed Temp: | 00°C |
| Specimen Orientation: | XY Flat and Vertical |
| Printing Speed | 15mm/sec.. |
Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.
CX17 CoexFlex TPU 60A Safety Data Sheet
Material Safety Data Sheet: CX17 TPU 60A SERIES 3D PRINTING FILAMENT
MSDS Rev 1.0
BASE RESIN: BASF™ Elastollan C60A10WH US
1. Identification of the substance/preparation and of the company
660 Corporate WAY
Pulaski, WI 54162
Phone: (920) 757-1055
2. Hazards identification
3. Composition / information on ingredients
3.1 Chemical characteristics:
| CAS # | Hazardous Components | Concentration |
|---|---|---|
| 27138-31-4 | Propanol, oxybis-, dibenzoate | >= 15.0 - < 50.0% |
4. First-aid measures
5. Fire-fighting measures
6. Accidental release measures
7. Handling and storage
8. Exposure controls/ personal protection
9. Physical and chemical properties
10. Stability and reactivity
11. Toxicological information
12. Ecological information
13. Disposal considerations
14. Transport information
15. Regulatory information
15.1 EPA regulations:
Sara 313 title III: Not Listed
TSCA Inventory List: Listed
16. Other information
This data is based on the current state of our information and experience. This safety data sheet describes our product in terms of safety requirements. Preceding data is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.
Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.
