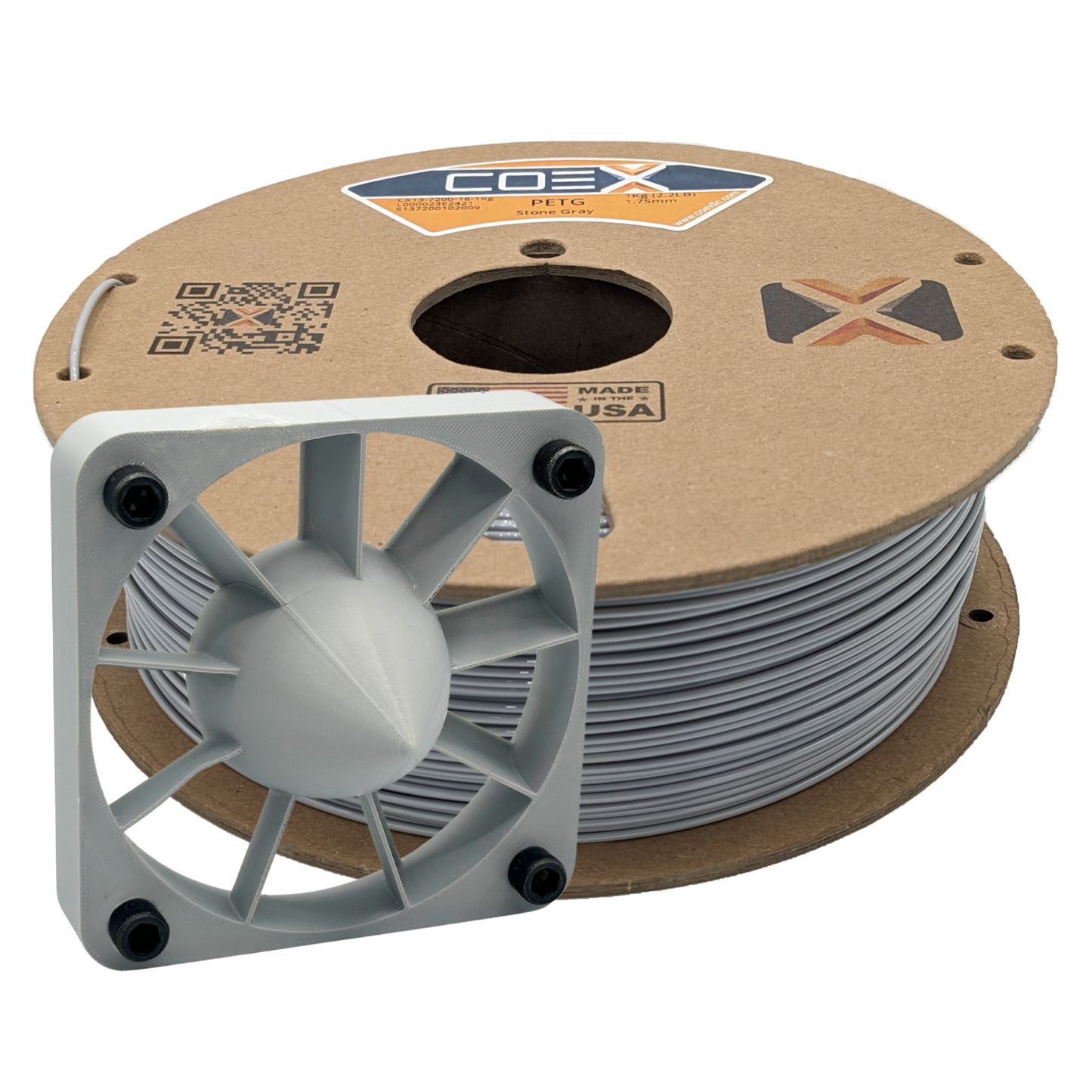

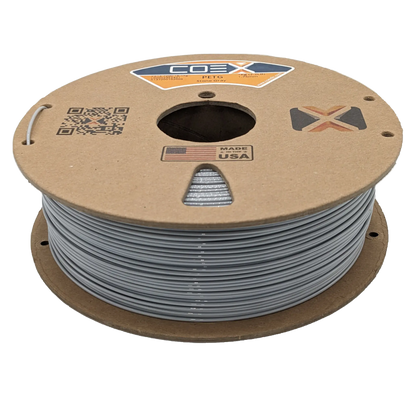

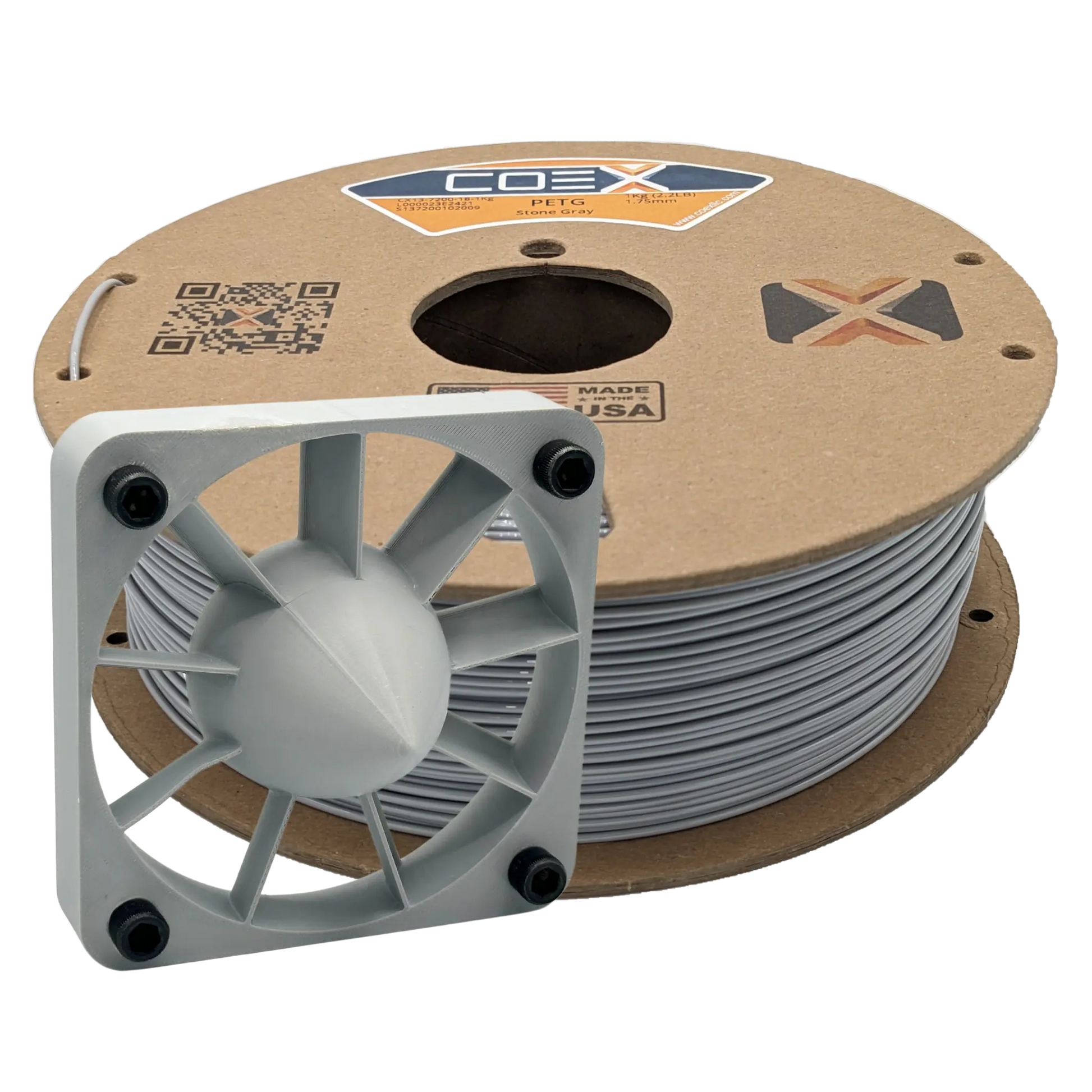

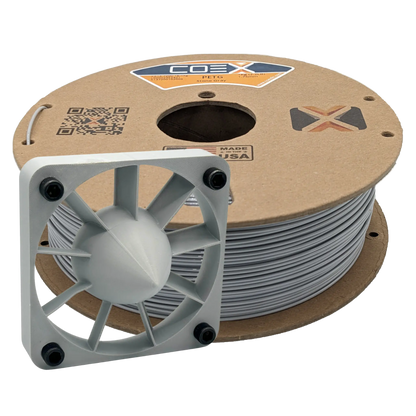

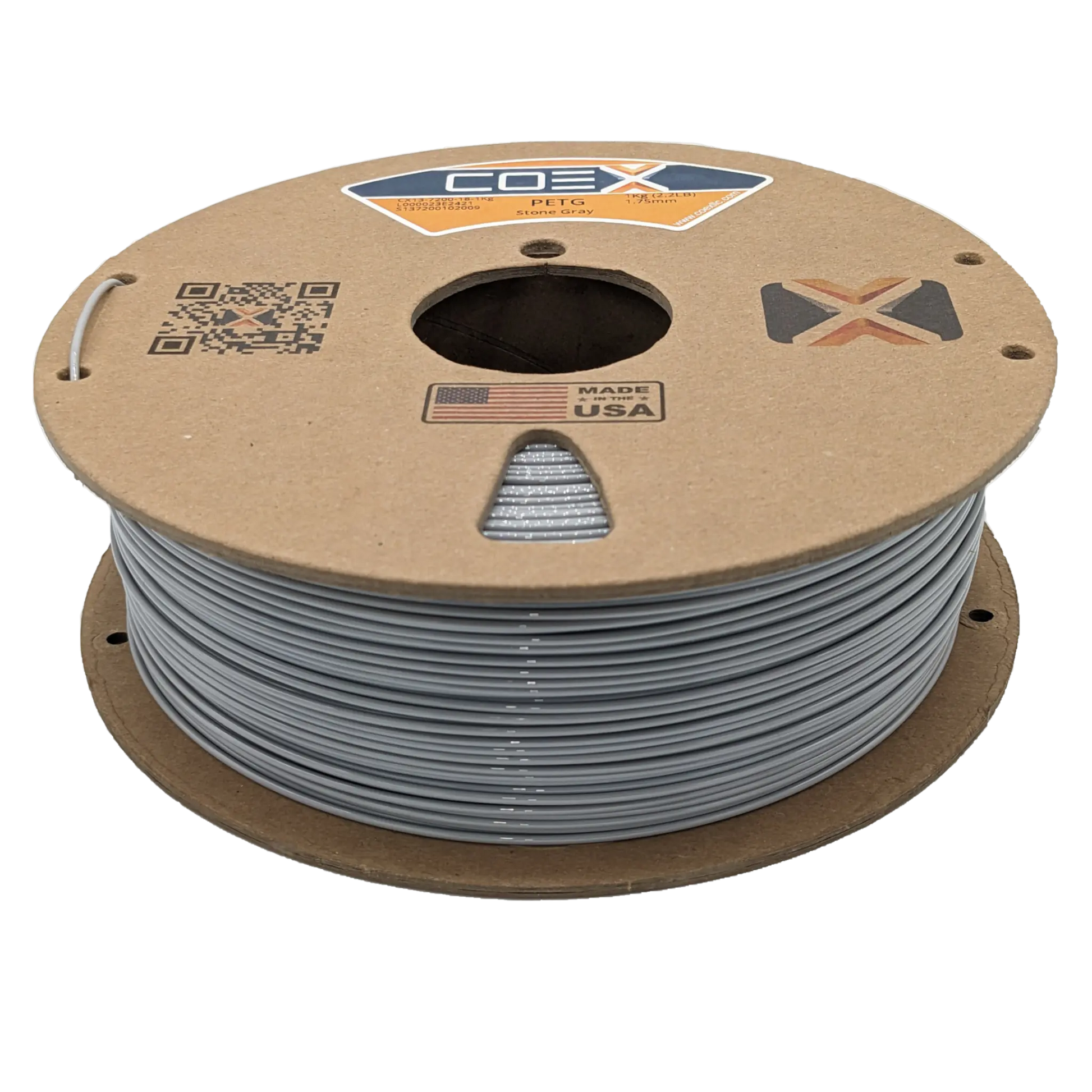

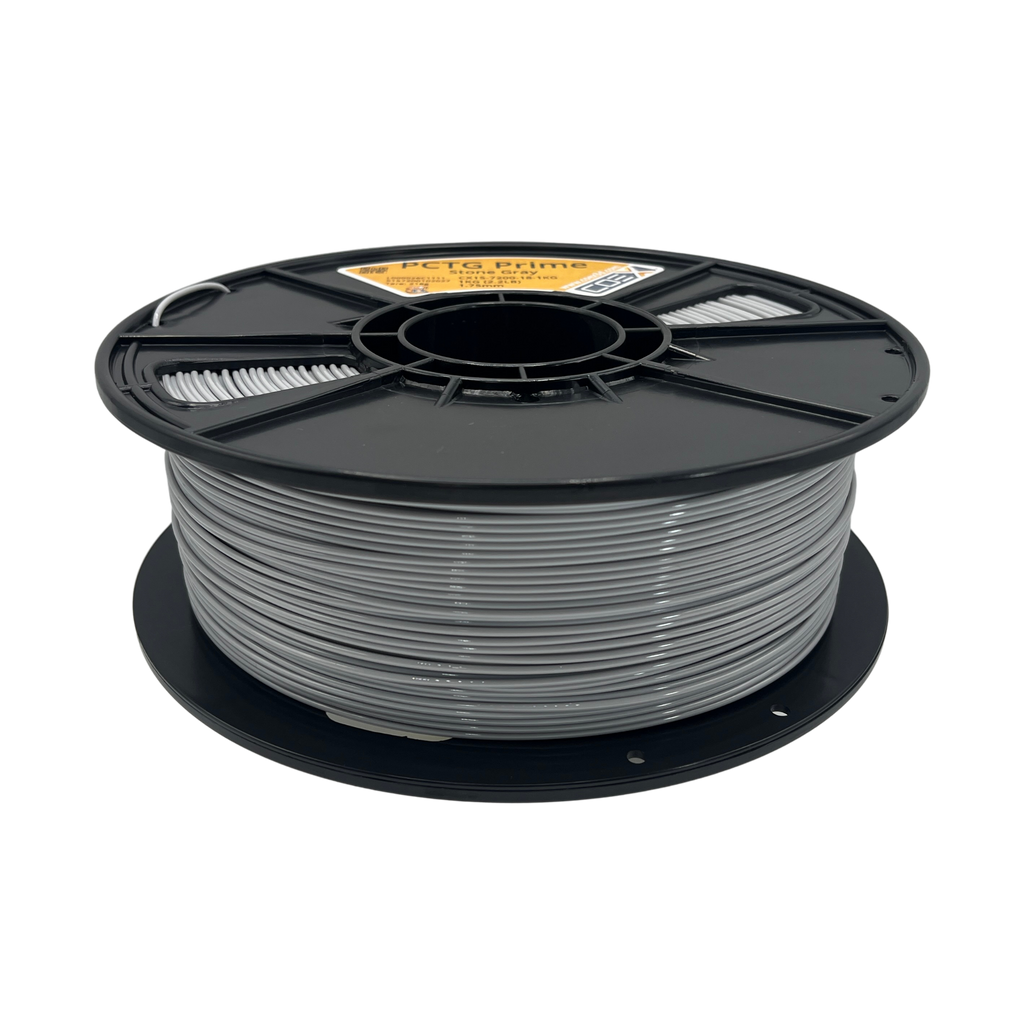

Stone Gray PCTG Prime
More Colors and Spool Sizes Coming Soon!
Please message us with requests.
Experience the next level of 3D printing with Coex 3D's PCTG Prime filament. PCTG is a glycol-modified copolyester and does not contain Polycarbonate. This advanced copolyester offers a significant upgrade from standard PETG, providing superior strength, chemical resistance, and temperature stability without sacrificing ease of use. Coex 3D's PCTG Prime is engineered to deliver exceptional results.
Made in the USA and held to rigorous quality standards, our PCTG filament ensures consistent diameter and ovality, leading to reliable, high-quality prints from start to finish. We use only premium virgin resins to produce a filament you can trust for your most demanding applications.
Unparalleled Strength and Durability
Step up your printing game with a material designed for resilience. PCTG boasts significantly higher impact strength than its common counterpart, PETG. This makes it the ideal choice for mechanical parts, tools, and any application that requires robust, long-lasting performance. Its superior ductility also means it can withstand bending and stress without fracturing.
Superior Chemical and Temperature Resistance
Don't let harsh environments compromise your creations. PCTG filament offers excellent resistance to a wide range of chemicals, including oils, greases, and solvents. This makes it a valuable material for automotive components, industrial jigs and fixtures, and containers that may come into contact with various substances. Furthermore, with a higher heat deflection temperature than standard PETG—withstanding temperatures up to 76°C (169°F)—your PCTG prints will maintain their integrity in more demanding thermal conditions.
Effortless Printing and Exceptional Finish
Despite its industrial-grade properties, Coex 3D's PCTG Prime filament is remarkably easy to print with, making it accessible to both professionals and hobbyists. It exhibits low shrinkage and excellent dimensional stability, minimizing the risk of warping and ensuring your prints maintain their intended size and shape. This filament does not require a heated chamber, making it compatible with a wide range of 3D printers. The result is a smooth, high-clarity finish that gives your projects a professional look.
Key Features:
- Exceptional Impact Strength: Creates tough, durable parts resistant to breakage.
- Excellent Chemical Resistance: Withstands exposure to a variety of chemicals.
- Increased UV Resistance: Withstands UV exposure better than PETG
- Higher Thermal Stability: Maintains its form at elevated temperatures.
- Easy to Print: Low shrinkage and warping for a hassle-free printing experience.
- High Clarity: Produces prints with excellent optical transparency.
- Made in the USA: Manufactured with high-quality virgin resins in Green Bay, WI.
- Precision Manufacturing: Consistent diameter tolerance of ±0.03mm for reliable extrusion.
Applications:
- Functional Prototypes
- Mechanical Parts and Jigs
- Automotive Components
- Protective Casings and Covers
- Durable Hobbyist Prints
- Containers and Organizers
Technical Printing Guide - COEX PCTG
1. Material Notes
- Keep filament dry - store properly and dry before use
- If needed, dry at 65°C for 3 hours or more
- Enclosure is helpful but not mandatory
- Use Z-offset slightly higher than PLA (+0.05mm)
- Enable "Avoid crossing perimeters" to reduce stringing
- Consider using the "Wipe while retract" option
- Enable "Slow down for small perimeters."
- Print outer walls slower for better quality
- Use a minimum layer time of 30 seconds for small parts
- Enable cooling gradually after the first layer
- Consider using "Extra Prime Amount" after retraction
2. Temperature Settings
Bed Temperature: 70-90°C
- Wash the bed often for good adhesion - Use dish soap and rinse thoroughly to remove oils
- Use bed adhesion products if necessary (gluestick, WELD3D)
- Use brim for tall or large prints
- Keep the ambient temperature stable
Extruder Temperature: 240-275°C
3. Basic Parameters
| Nozzle | Layer Height | Line Width | Volumetric Speed | Temperature |
| 0.4mm | 0.2mm | 0.42mm | 14.0 mm³/s | 245°C |
| 0.6mm | 0.3mm | 0.62mm | 31.5 mm³/s | 245°C |
| 0.8mm | 0.4mm | 0.82mm | 56.0 mm³/s | 250°C |
| 1.0mm | 0.5mm | 1.02mm | 87.5 mm³/s | 265°C |
4. Speed Settings
0.4mm Nozzle (Volumetric Speed: 14.0 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 83.33 mm/s |
| Internal Perimeters | 75% | 125.00 mm/s |
| Infill | 100% | 166.67 mm/s |
| Top/Bottom | 60% | 100.00 mm/s |
| First Layer | 30% | 50.00 mm/s |
0.6mm Nozzle (Volumetric Speed: 31.5 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 84.68 mm/s |
| Internal Perimeters | 75% | 127.02 mm/s |
| Infill | 100% | 169.35 mm/s |
| Top/Bottom | 60% | 101.61 mm/s |
| First Layer | 30% | 50.81 mm/s |
0.8mm Nozzle (Volumetric Speed: 56.0 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 85.37 mm/s |
| Internal Perimeters | 75% | 128.05 mm/s |
| Infill | 100% | 170.73 mm/s |
| Top/Bottom | 60% | 102.44 mm/s |
| First Layer | 30% | 51.22 mm/s |
1.0mm Nozzle (Volumetric Speed: 87.5 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 85.78 mm/s |
| Internal Perimeters | 75% | 128.68 mm/s |
| Infill | 100% | 171.57 mm/s |
| Top/Bottom | 60% | 102.94 mm/s |
| First Layer | 30% | 51.47 mm/s |
5. Retraction Settings
IMPORTANT: Set travel speed to the maximum your machine allows (200-500mm/s). Faster movements reduce filament oozing time, minimizing stringing.
| Nozzle | Distance | Speed | Z-Hop |
| 0.4mm | 1.0-1.5mm | 40mm/s | 0.2mm |
| 0.6mm | 1.0-1.5mm | 40mm/s | 0.2mm |
| 0.8mm | 1.0-1.5mm | 40mm/s | 0.2mm |
| 1.0mm | 1.0-1.5mm | 40mm/s | 0.2mm |
6. Cooling Settings
Cooling Configuration:
Fan Speed Settings:
- First Layer: 0% (fan off)
- General Printing: 40% fan speed
- Bridges and Overhangs: 70% fan speed
- Layers < 30 seconds: 70% fan speed
Advanced Settings:
- Keep Fan Always On: YES
- Force Fan Speed for Overhangs: YES
- Minimum Layer Time: 30 seconds
- Force Fan Speed for Small Perimeters: YES
Additional Cooling Notes:
- Enable gradual fan speed increase after the first layer
- Increase fan speed for small, detailed parts
- Consider reducing fan speed for better layer adhesion if needed
- Monitor overhangs and bridge quality to adjust fan speed
7. Troubleshooting Guide
| Problem | Solution |
| Irregular extrusion |
1. Dry the filament 2. Check the extruder 3. Reduce speed |
| Poor adhesion |
1. Dry the filament 2. Use adhesive 3. Adjust the first layer |
| Stringing |
1. Dry the filament 2. Adjust retraction 3. Increase travel speed 4. Check temperature |
PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.
CX15 PCTG Prime Technical Data Sheet
Technical Data Sheet: CX13 PCTG SERIES 3D PRINTING FILAMENT
TDS Rev 2.0
BASE RESIN: Selenis Mimesis PCTG Copolyester
Physical Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Specific Gravity - Density | ASTM D792 | g/cc | 1.27 |
| Melt Density @200°C | ASTM D1238 | g/cm³ | N/A |
| UL Flammability Class. @1.14mm | UL 94 | N/A | N/A |
Mechanical Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Tensile Yield Strength | ASTM D638 | MPa | 50 |
| Tensile Modulus | ASTM D638 | MPa | 2175 |
| Tensile Elongation | ASTM D638 | % | 84 |
| Flexural Stress | ISO 178 | MPa | 61 |
| Notched Izod Impact | ASTM D256 | J/m | 5.2 |
| Shrinkage Rate < 1% | ASTM D955 | mm/mm | 0.2 - 0.5 |
Thermal Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Glass Transition Temperature (Tg) | DSC | °C | 80 - 85 |
| Heat Distortion Temp @ 0.45MPa | ASTM D648 | °C | 71 |
| Decomposition Temperature | ASTM 3418 | °C | N/A |
SPECIFICATIONS
| Filament Size: | 1.75mm | (in) | 2.85mm | (in) |
|---|---|---|---|---|
| MIN Diameter: | 1.72mm | 0.0677 in | 2.79mm | 0.1098 in |
| MAX Diameter: | 1.78mm | 0.0701 in | 2.91mm | 0.1146 in |
| Tolerance | +/- .03mm | +/- 0.0012 in | +/- .06mm | +/- 0.0024 in |
CERTIFICATIONS
Meets ISO 10992 and/or USP Class VI biocompatibility requirements; Food Contact Status compliant
Printed Specimen Conditions
| Printer: | Open Source FDM/FFF |
| Nozzle: | 0.4mm |
| Layer Height: | 0.25mm |
| Infill: | 100%, +/-45° |
| Extrusion Temp: | 250°C |
| Bed Temp: | 80°C |
| Specimen Orientation: | XY Flat |
| Unannealed | |
Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.
CX15 PCTG Prime Safety Data Sheet
Material Safety Data Sheet: CX15 PCTG PRIME SERIES 3D PRINTING FILAMENT
MSDS Rev 1.0
BASE RESIN: Selenis Mimesis
1. Identification of the substance/preparation and of the company
1228 Elizabeth ST
Green Bay, WI 54302
Phone: (920) 757-1055
2. Hazards identification
3. Composition / information on ingredients
3.1 Chemical characteristics:
| CAS # | Components | Concentration |
|---|---|---|
| - | Copolyester | > 99.9% |
| - | Additives | < .1% |
4. First-aid measures
5. Fire-fighting measures
6. Accidental release measures
7. Handling and storage
8. Exposure controls/ personal protection
9. Physical and chemical properties
10. Stability and reactivity
11. Toxicological information
12. Ecological information
13. Disposal considerations
14. Transport information
15. Regulatory information
15.1 EPA regulations: This material meets the EPA 'Hazard Categories' defined for SARA Title III Sections 311/312 as indicated:
- Acute (immediate) Health Hazard: No
- Chronic (delayed) Health Hazard: No
- Sudden Release of Pressure Hazard: No
- Reactive Hazard: No
16. Other information
This data is based on the current state of our information and experience. This safety data sheet describes our product in terms of safety requirements. Preceding data is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.
Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.
