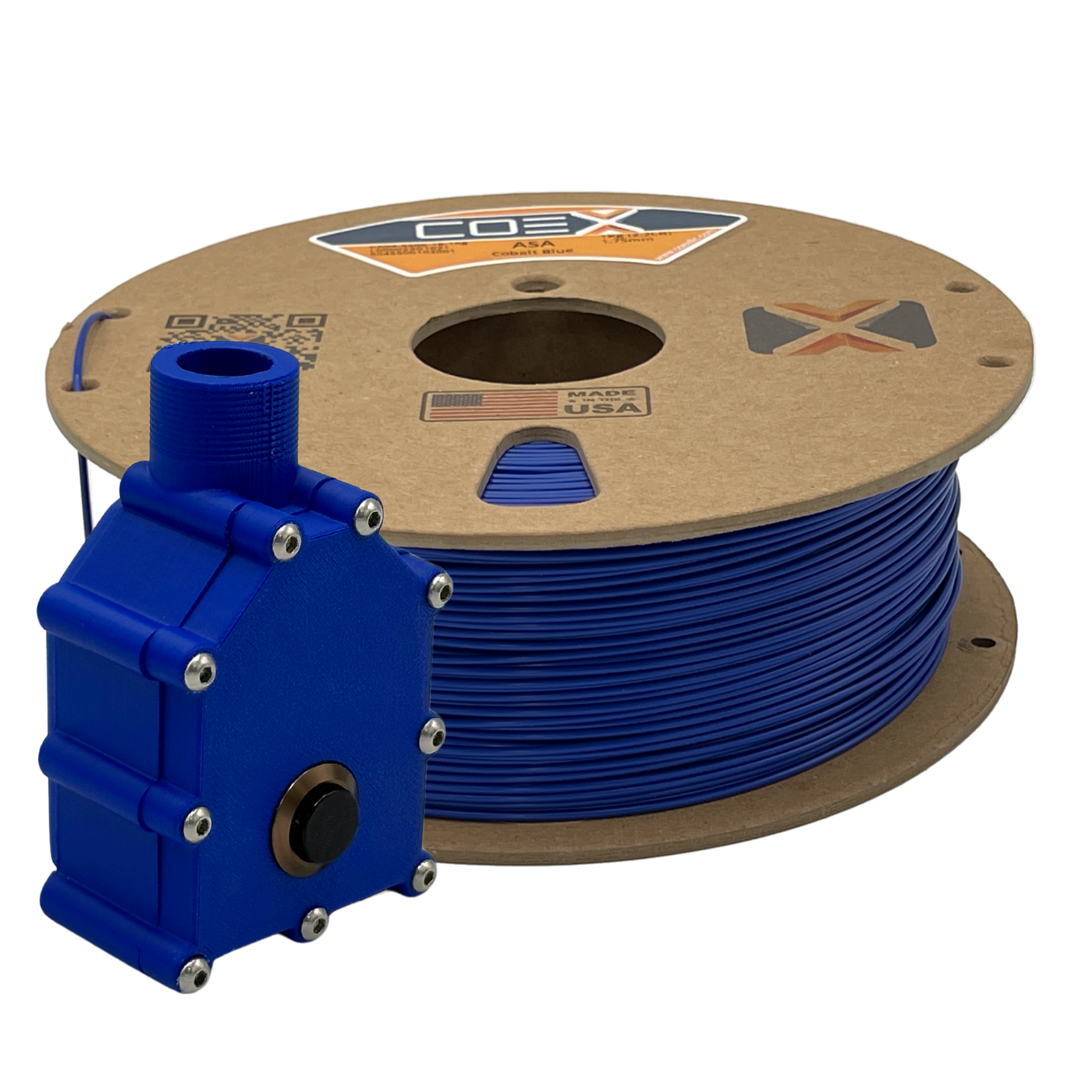

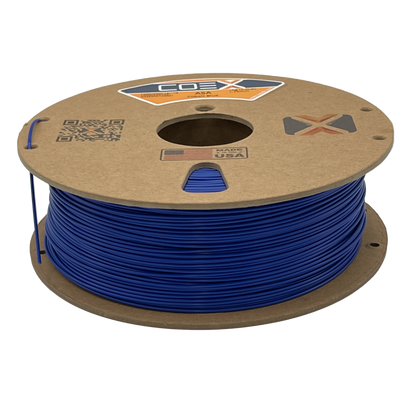

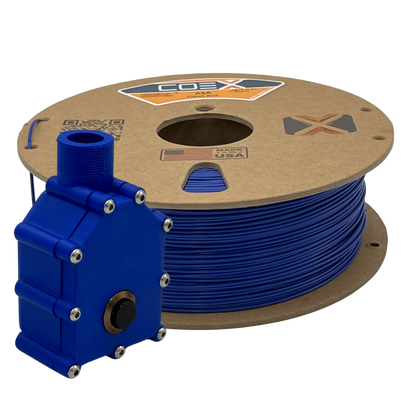

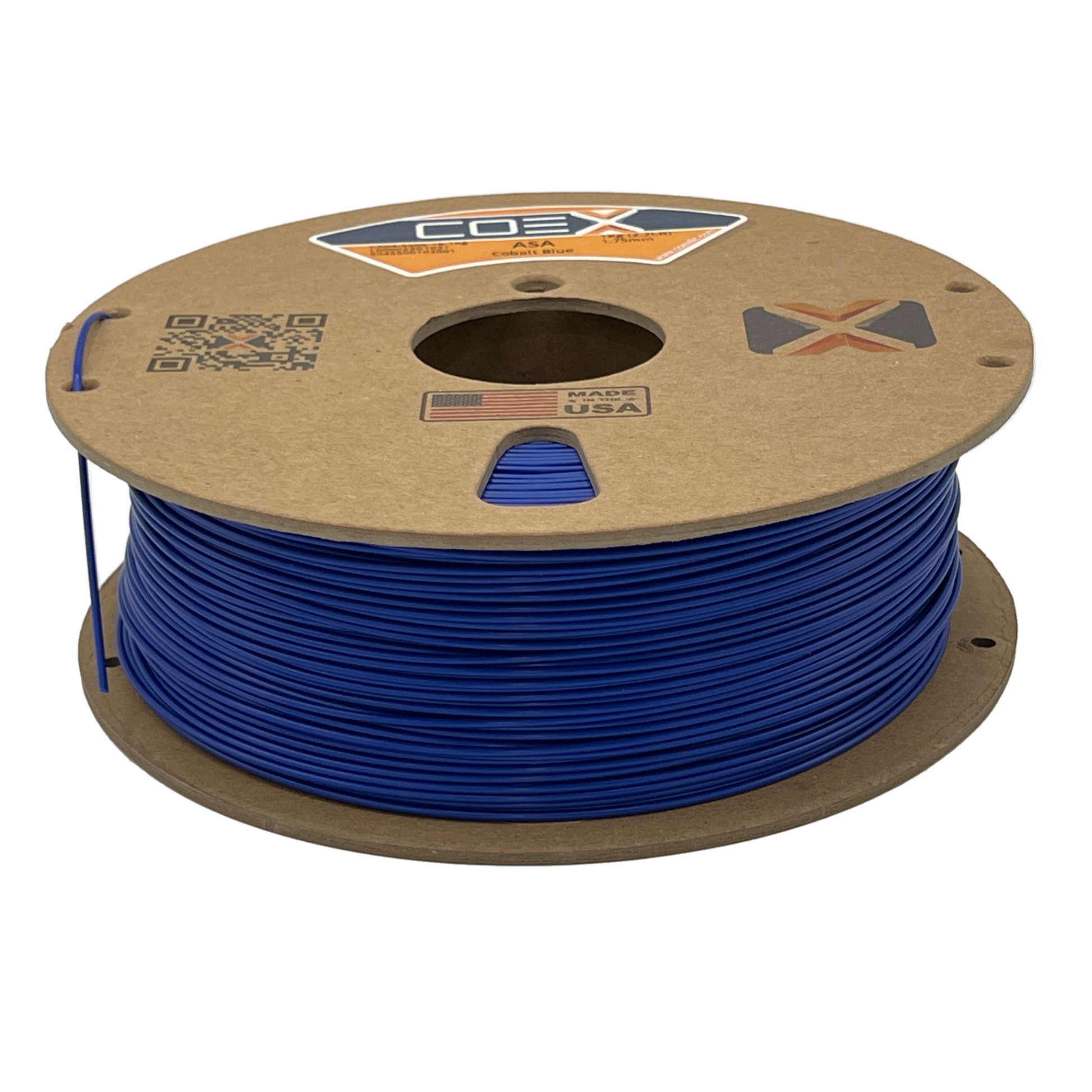

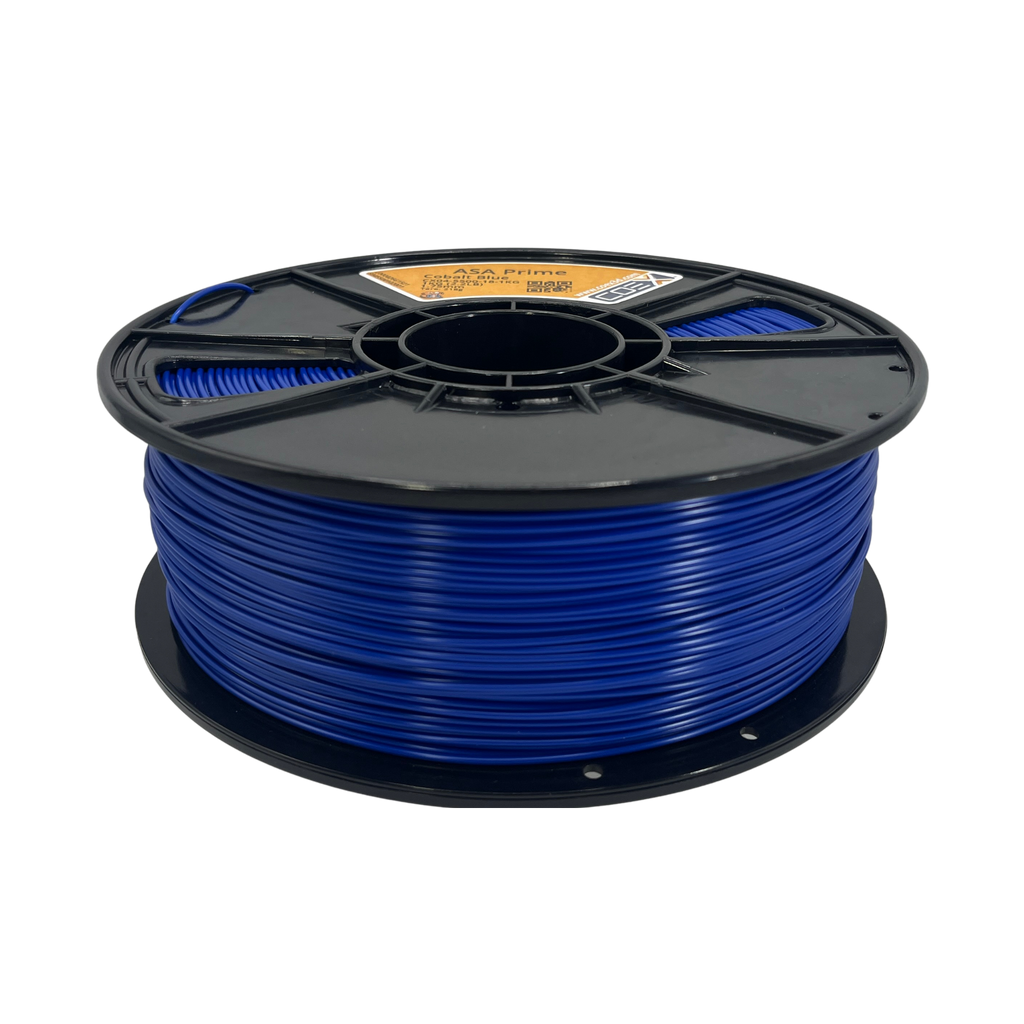

Cobalt Blue ASA Prime
COEX 3D ASA Prime is the ultimate choice for creators who demand durability, precision, and UV stability in their outdoor prints. Engineered for excellence, our premium ASA (Acrylonitrile Styrene Acrylate) filament combines the ease of printing with PLA and the robustness of ABS, without the drawbacks of either.
Unmatched Outdoor Performance
ASA Prime is specifically formulated to withstand the harshest environmental conditions. Unlike standard filaments that fade, crack, or deform under sun exposure, our UV-stabilized formula maintains color vibrancy and structural integrity for years, making it perfect for:
- Outdoor signage and displays
- Automotive components
- Garden fixtures and tools
- Drone and RC vehicle parts
- Marine applications
Superior Print Quality
- Consistent Extrusion: Precision-engineered diameter tolerance (±0.03mm) ensures smooth, jam-free printing
- Minimal Warping: Advanced formulation reduces shrinkage and warping during cooling
- Excellent Layer Adhesion: Creates solid, watertight parts with exceptional structural strength
- Smooth Finish: Produces professional-looking prints with a premium surface
Our carefully curated palette offers everything from subtle neutrals to eye-catching vibrants—all formulated to maintain their rich color even after years of sun exposure.
Why Choose COEX 3D ASA Prime?
- Quality Guarantee: Every batch is tested for consistency and performance
- Support: Coex 3D is there to help you be successful
- Value: Premium quality at a competitive price point
Perfect For:
Professionals, hobbyists, and makers who need functional parts that look great and last longer. When your project demands reliability in outdoor environments, COEX 3D ASA Prime delivers results you can trust.
Technical Printing Guide - COEX ASA Prime
1. Material Notes
- Keep filament dry - store properly and dry before use
- If needed, dry at 75°C for 3 hours or more
- Enclosure is necessary
- Use Z-offset slightly higher than PLA (+0.05mm)
- Enable "Avoid crossing perimeters" to reduce stringing
- Consider using the "Wipe while retract" option
- Enable "Slow down for small perimeters."
- Print outer walls slower for better quality
- Use a minimum layer time of 30 seconds for small parts
- Consider using "Extra Prime Amount" after retraction
2. Temperature Settings
Bed Temperature: 80-100°C
- Wash the bed often for good adhesion - Use dish soap and rinse thoroughly to remove oils
- Use bed adhesion products if necessary (gluestick, WELD3D)
- Use brim for tall or large prints
- Keep the ambient temperature stable
Extruder Temperature: 245-265°C
3. Basic Parameters
| Nozzle | Layer Height | Line Width | Volumetric Speed | Temperature |
| 0.4mm | 0.2mm | 0.42mm | 14.0 mm³/s | 250°C |
| 0.6mm | 0.3mm | 0.62mm | 31.5 mm³/s | 255°C |
| 0.8mm | 0.4mm | 0.82mm | 56.0 mm³/s | 260°C |
| 1.0mm | 0.5mm | 1.02mm | 87.5 mm³/s | 265°C |
4. Speed Settings
0.4mm Nozzle (Volumetric Speed: 14.0 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 83.33 mm/s |
| Internal Perimeters | 75% | 125.00 mm/s |
| Infill | 100% | 166.67 mm/s |
| Top/Bottom | 60% | 100.00 mm/s |
| First Layer | 30% | 50.00 mm/s |
0.6mm Nozzle (Volumetric Speed: 31.5 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 84.68 mm/s |
| Internal Perimeters | 75% | 127.02 mm/s |
| Infill | 100% | 169.35 mm/s |
| Top/Bottom | 60% | 101.61 mm/s |
| First Layer | 30% | 50.81 mm/s |
0.8mm Nozzle (Volumetric Speed: 56.0 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 85.37 mm/s |
| Internal Perimeters | 75% | 128.05 mm/s |
| Infill | 100% | 170.73 mm/s |
| Top/Bottom | 60% | 102.44 mm/s |
| First Layer | 30% | 51.22 mm/s |
1.0mm Nozzle (Volumetric Speed: 87.5 mm³/s)
| Line Type | Percentage | Speed |
| External Perimeter | 50% | 85.78 mm/s |
| Internal Perimeters | 75% | 128.68 mm/s |
| Infill | 100% | 171.57 mm/s |
| Top/Bottom | 60% | 102.94 mm/s |
| First Layer | 30% | 51.47 mm/s |
5. Retraction Settings
IMPORTANT: Set travel speed to the maximum your machine allows (200-500mm/s). Faster movements reduce filament oozing time, minimizing stringing.
| Nozzle | Distance | Speed | Z-Hop |
| 0.4mm | 1.0-1.5mm | 40mm/s | 0.2mm |
| 0.6mm | 1.0-1.5mm | 40mm/s | 0.2mm |
| 0.8mm | 1.0-1.5mm | 40mm/s | 0.2mm |
| 1.0mm | 1.0-1.5mm | 40mm/s | 0.2mm |
6. Cooling Settings
Cooling Configuration:
-
- First Layer: 0% (fan off)
- General Printing: 100% base fan speed
- Bridges and Overhangs: 100% fan speed
- Layers < 15 seconds: 100% fan speed
7. Troubleshooting Guide
| Problem | Solution |
| Irregular extrusion |
1. Dry the filament 2. Check the extruder 3. Reduce speed |
| Poor adhesion |
1. Dry the filament 2. Use adhesive 3. Adjust the first layer |
| Stringing |
1. Dry the filament 2. Adjust retraction 3. Increase travel speed 4. Check temperature |
PLEASE NOTE: These printing parameters are initial recommendations based on our experience. They may need adjustment depending on your specific 3D printer, environmental conditions, and the geometry of the part you are printing. Use these settings as a starting point and fine-tune them according to your specific needs.
CX04 ASA Prime Technical Data Sheet
Technical Data Sheet: CX04 ASA PRIME SERIES 3D PRINTING FILAMENT
TDS Rev 2.0
BASE RESIN: LG Chem L1912 UV resistant General Purpose Material
Physical Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Specific Gravity - Density | ASTM D792 | g/cm³ | 1.07 |
| Melt Density @220°C, 10KG | ASTM D1133 | g/10 min | 12 |
| UL Flammability Class. @1.5mm | UL 94 | N/A | 94HB |
Mechanical Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Tensile Yield Strength | ASTM D638 | MPa | 49 |
| Tensile Modulus | ASTM D638 | MPa | 2160 |
| Tensile Elongation | ASTM D638 | % | 25 |
| Flexural Strength | ASTM D790 | MPa | 79 |
| Notched Izod Impact | ASTM D256 | J/m | 175 |
| Shrinkage Rate < 1% | ASTM D955 | mm/mm | 0.40 - 0.70% |
Thermal Properties
| Property | Standard | Unit | Typical Value |
|---|---|---|---|
| Glass Transition Temperature (Tg) | DSC | °C | 95 |
| Heat Distortion Temp @ 0.45MPa | ASTM D648 | °C | 86 |
| Decomposition Temperature | ASTM 3418 | °C | 300 |
SPECIFICATIONS
| Filament Size: | 1.75mm | (in) | 2.85mm | (in) |
|---|---|---|---|---|
| MIN Diameter: | 1.72mm | 0.0677 in | 2.79mm | 0.1098 in |
| MAX Diameter: | 1.78mm | 0.0701 in | 2.91mm | 0.1146 in |
| Tolerance | +/- .03mm | +/- 0.0012 in | +/- .06mm | +/- 0.0024 in |
CERTIFICATIONS
UL Yellow Card LI912
Printed Specimen Conditions
| Printer: | Open Source FDM/FFF |
| Nozzle: | 0.4mm |
| Layer Height: | 0.25mm |
| Infill: | 100%, +/-45° |
| Extrusion Temp: | 240°C |
| Bed Temp: | 90°C |
| Specimen Orientation: | XY Flat |
| Unannealed | |
Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.
CX04 ASA Prime Safety Data Sheet
Material Safety Data Sheet: CX04 ASA Prime SERIES 3D PRINTING FILAMENT
MSDS Rev 1.0
BASE RESIN: ASA LI912
1. Identification of the substance/preparation and of the company
1228 Elizabeth ST
Green Bay, WI 54302
Phone: (920) 757-1055
2. Hazards identification
3. Composition / information on ingredients
3.1 Chemical characteristics:
| CAS # | Hazardous Components | Concentration |
|---|---|---|
| 26299-47-8 | 2-Propenoic acid butyl ester polymer with ethenylbenzene and 2- propenenitrile | 90 ~ 99.9% |
| 2082-79-3 | 3,5-Bis(1,1-dimethylethyl)-4-hydroxybenzene- propanoic acid octadecyl ester | < 1% |
| 52829-07-9 | Decanedioic acid bis(2,2,6,6-tetramethyl-4-piperidinyl) ester | < 1% |
4. First-aid measures
5. Fire-fighting measures
6. Accidental release measures
7. Handling and storage
8. Exposure controls/ personal protection
9. Physical and chemical properties
10. Stability and reactivity
11. Toxicological information
12. Ecological information
13. Disposal considerations
14. Transport information
15. Regulatory information
15.1 EPA regulations: This material meets the EPA 'Hazard Categories' defined for SARA Title III Sections 311/312 as indicated:
- Acute (immediate) Health Hazard: No
- Chronic (delayed) Health Hazard: No
- Fire Hazard: Yes
- Sudden Release of Pressure Hazard: No
- Reactive Hazard: No
16. Other information
This data is based on the current state of our information and experience. This safety data sheet describes our product in terms of safety requirements. Preceding data is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.
Disclaimer: The safety data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data describes our product in terms of safety requirements. The data provided is not applicable as a warranty of product properties. It is the responsibility of the recipient to observe the existing legal regulations for the use of this product.
CX04 ASA Prime Yellow Card
Yellow Card Sheet: CX04 ASA PRIME 3D PRINTING FILAMENT
YELLOW CARD Rev 1.0
Flammability
| Flame Rating | Value | Test Method |
|---|---|---|
| 1.0 mm, ALL | HB | UL 94 |
| 3.0 mm, ALL | HB | UL 94 |
| 6.0 mm, ALL | HB | UL 94 |
| 3.0 mm, ALL | HB40 | IEC 60695-11-10, -20 |
| 6.0 mm, ALL | HB40 | IEC 60695-11-10, -20 |
| 1.5 mm, ALL | HB75 | IEC 60695-11-10, -20 |
Electrical
| Property | Value | Test Method |
|---|---|---|
| Hot-wire Ignition (HWI) | ||
| 1.5 mm | PLC 4 | UL 746 |
| 3.0 mm | PLC 3 | |
| 6.0 mm | PLC 2 | |
| High Amp Arc Ignition (HAI) | ||
| 1.5 mm | PLC 0 | UL 746 |
| 3.0 mm | PLC 0 | |
| 6.0 mm | PLC 0 | |
| Comparative Tracking Index (CTI) | PLC 2 | UL 746 |
| Dielectric Strength | 27 kV/mm | ASTM 746 |
| High Voltage Arc Tracking Rate (HVTR) | PLC 1 | UL 746 |
| Volume Resistivity | 1.0E+15 ohms-cm | ASTM D257, IEC 60093 |
| Arc Resistance | PLC 6 | ASTM D495 |
Thermal
| Property | Value | Test Method |
|---|---|---|
| RTI Elec | ||
| 1.0 mm | 50.0 °C | UL 746 |
| 3.0 mm | 50.0 °C | |
| 6.0 mm | 50.0 °C | |
| RTI Imp | ||
| 1.5 mm | 50.0 °C | UL 746 |
| 3.0 mm | 50.0 °C | |
| 6.0 mm | 50.0 °C | |
| RTI Str | ||
| 1.5 mm | 50.0 °C | UL 746 |
| 3.0 mm | 50.0 °C | |
| 6.0 mm | 50.0 °C | |
| Dimensional Stability | 0.0% | ASTM D1042, ISO 2796 |
Disclaimer: The technical data contained on this data sheet is furnished without charge or obligation and accepted at the recipient's sole risk. This data should not be used to establish specifications limits or used alone as the basis of design. The data provided is not intended to substitute any testing that may be required to determine fitness for any specific use.
